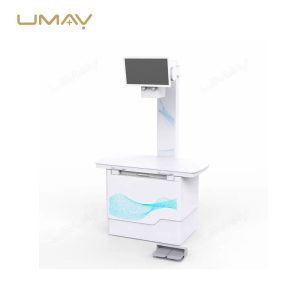

X-ray Machine for Veterinary Use with Flat Panel Detector and Animal-Specific Software
SKU: UMY-XM-042
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-042
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year

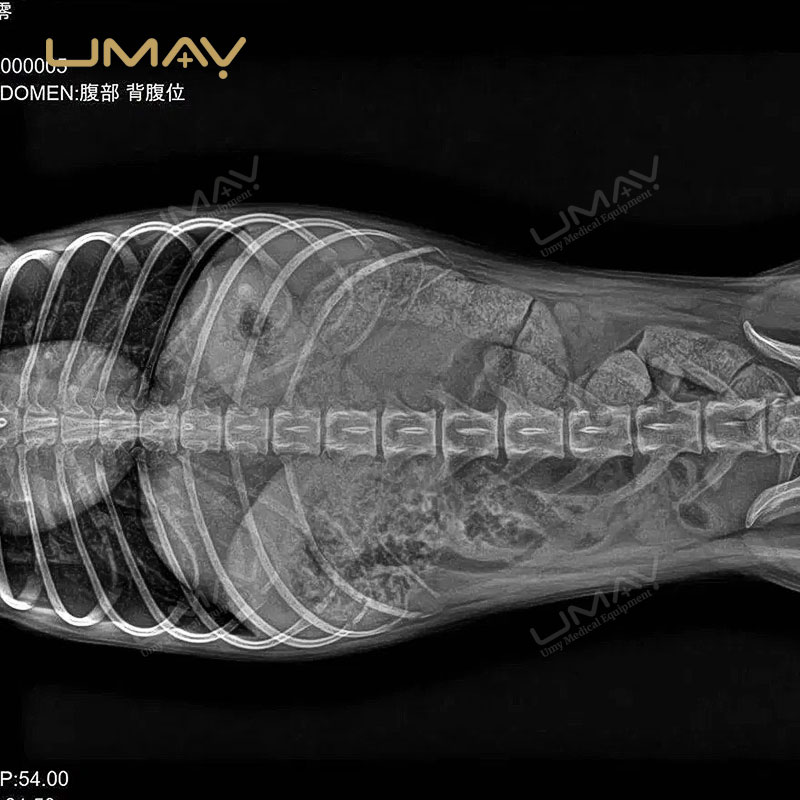

The X-ray Machine for Veterinary Use with a Flat Panel Detector and animal-specific software provides high-resolution imaging tailored to animal care. This system enhances diagnostic accuracy by delivering clear, detailed X-rays for conditions like fractures, joint issues, and internal organ diseases in pets and livestock. The integrated animal-specific software simplifies the imaging process, adjusting settings for various species and sizes. Its advanced digital technology ensures faster image acquisition and reduced radiation exposure. Ideal for veterinary clinics and hospitals, this X-ray machine supports quick, accurate diagnostics, improving patient care and workflow efficiency.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Input Specifications | |
Input Power | Single-phase 220V/10A |
Maximum Output Power | 32kW |
Operating Frequency | 80-300kHz |
KV Range | 40 ~ 125kV (±1% + 1kV) |
mA Range | 10 ~ 400mA (±1% + 1kV) |
Minimum Exposure Time | 0.001 – 6.3s |
X-Ray Tube Specifications | |
Origin | China |
Maximum Voltage | 125kV |
Size Focus | 1.0 / 2.0mm |
Thermal Capacity | 140kHU |
Anode Input Power | Small Focus: 21kW; Large Focus: 42.5kW |
Bed Specifications | |
Bed Surface Size | 1210 × 610mm |
Bed Material | Phenolic Laminate |
Lateral Movement | 75 ± 10mm |
Longitudinal Movement | 200 ± 10mm |
Beam Limiter Specifications | |
Light Field Range (SID = 1 meter) | 430 × 430mm |
Intrinsic Filtration | 1.0mm Al / 75kV |
LED Light | Beam limiter has built-in LED light (automatically turns off after 30s) |
Ruler | Beam limiter built-in measuring ruler |
