Wireless Color Doppler Ultrasound Machine with Rectal Duplex Probe for Veterinary and Human Diagnostics

SKU: UMY-US-072
Brand: Umy
MOQ: 1
Origin: China

OR

Quick Info.

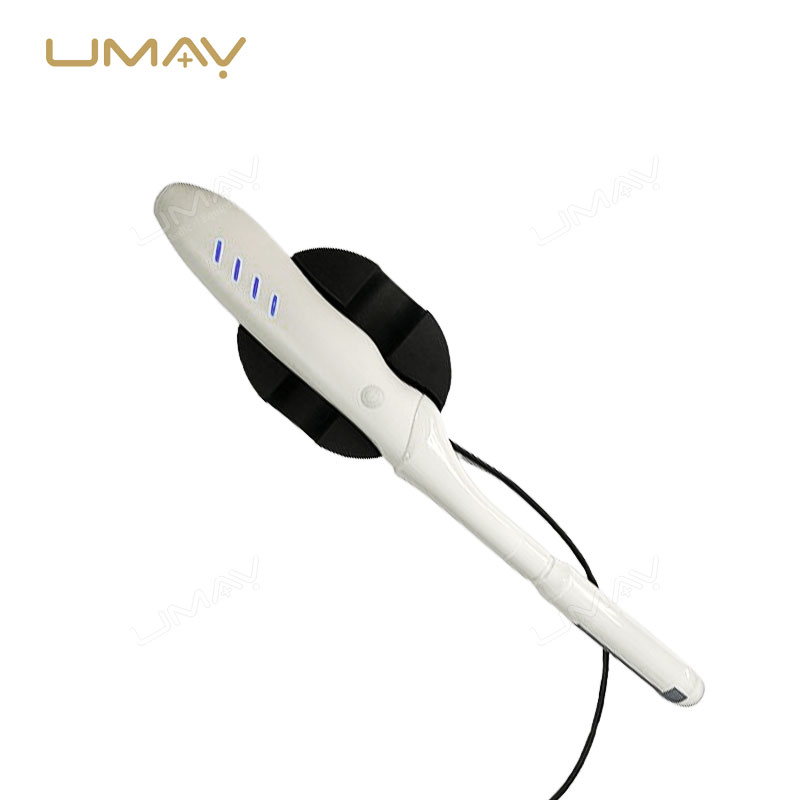

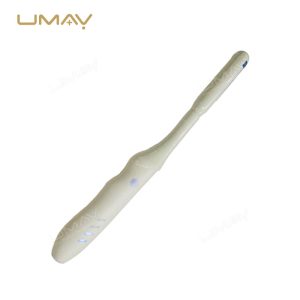

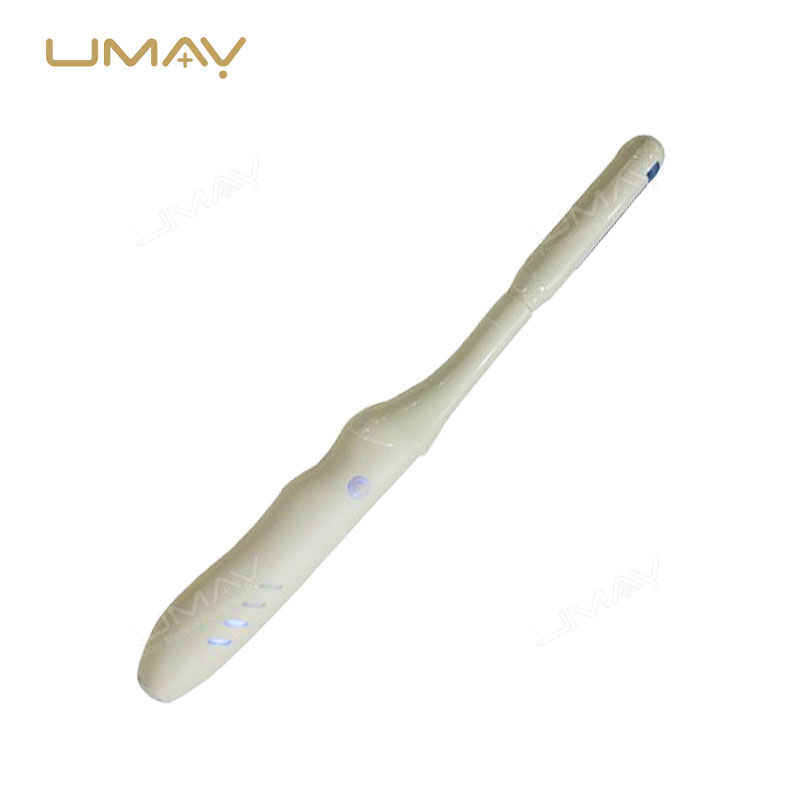

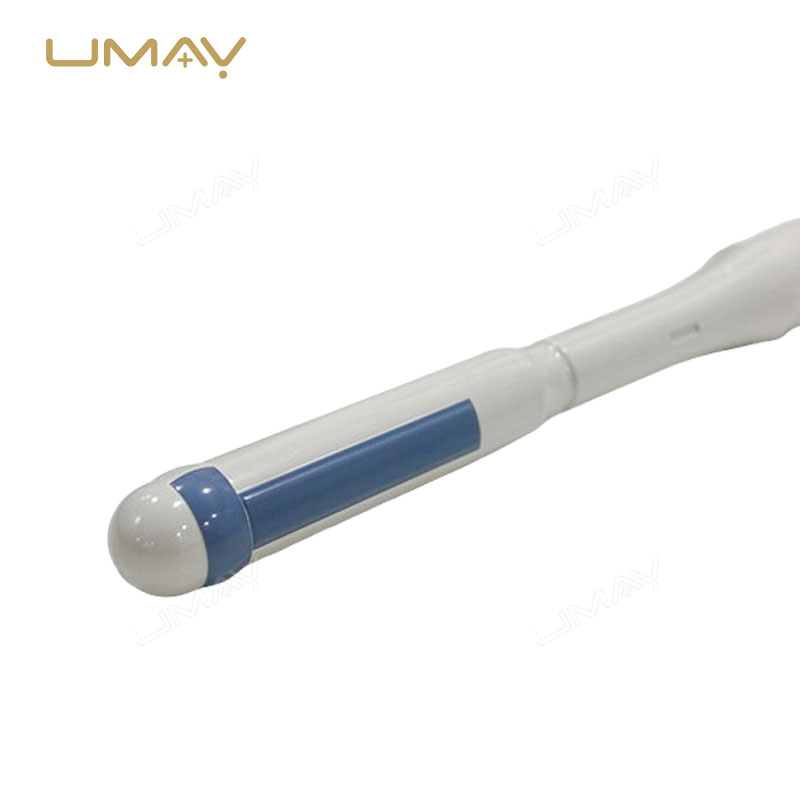

This wireless color Doppler ultrasound machine is equipped with a rectal duplex probe, providing high-resolution imaging for both veterinary and human diagnostics. Ideal for assessing blood flow, tissue movement, and vessel health, it supports a wide range of applications including obstetrics, urology, and vascular studies. The machine’s wireless design allows for easy portability, making it suitable for use in both clinic and field settings. The rectal duplex probe enhances diagnostic accuracy by offering detailed images of internal structures and blood flow patterns. This versatile and portable device is an essential tool for comprehensive diagnostic assessments.

The Specific Parameters

ITEMSPARAMETERS
Standard Configuration
Wireless Probe Device1 Unit
Built-in Battery and Charge Cable1 Set
Technical Specifications
Scanning ModeElectronic array
Image ModesB, B/M, Color, PW, PDI
Frequency6.5/8 MHz
Scan Depth40–100 mm
Image AdjustGain, DYN, Focus, Depth, Harmonic, Denoise
Dynamic Range40/50/60/70/80/90/100/110
Noise Reduction0–1–2–3–4
Image Formatjpg, avi, DICOM
Image Frame Rate18 frames/second
CineplayAuto and manual; frames settable as 100/200/500/1000
MeasurementLength, Area, Angle, Obstetrics
Gain30 dB–105 dB
Puncture Assist FunctionIn-plane and out-of-plane puncture guide
Battery Working Time1 hour

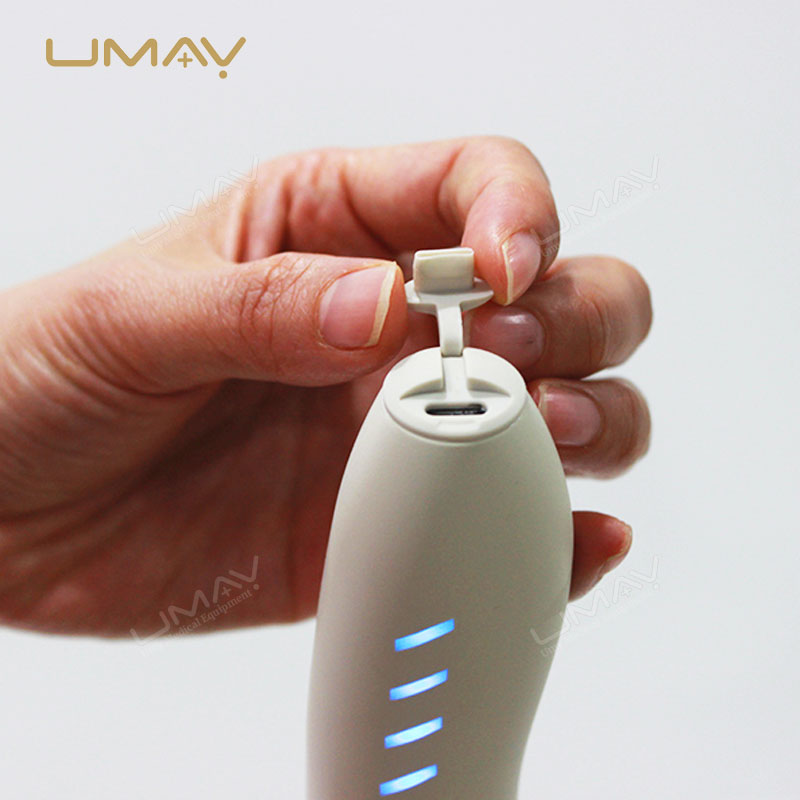

Charge MethodUSB or Optional Wireless Charger
Working SystemAndroid / iOS
Wi-Fi Type802.11g / 20 MHz / 5G / 450 Mbps
Physical Specifications
Length360 mm
Size336 mm × 35 mm × 28 mm
Weight200 g
