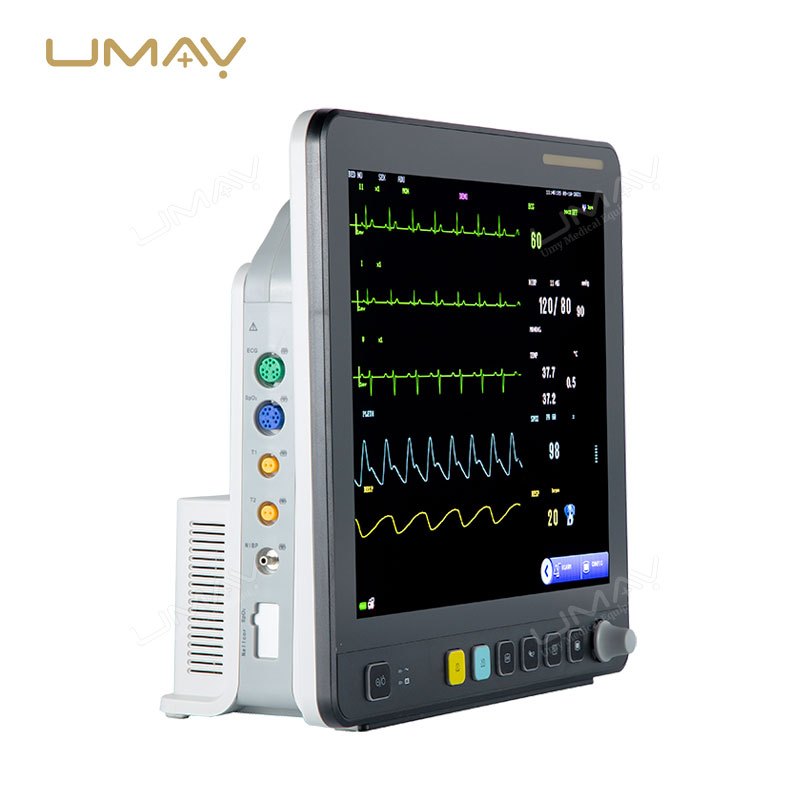

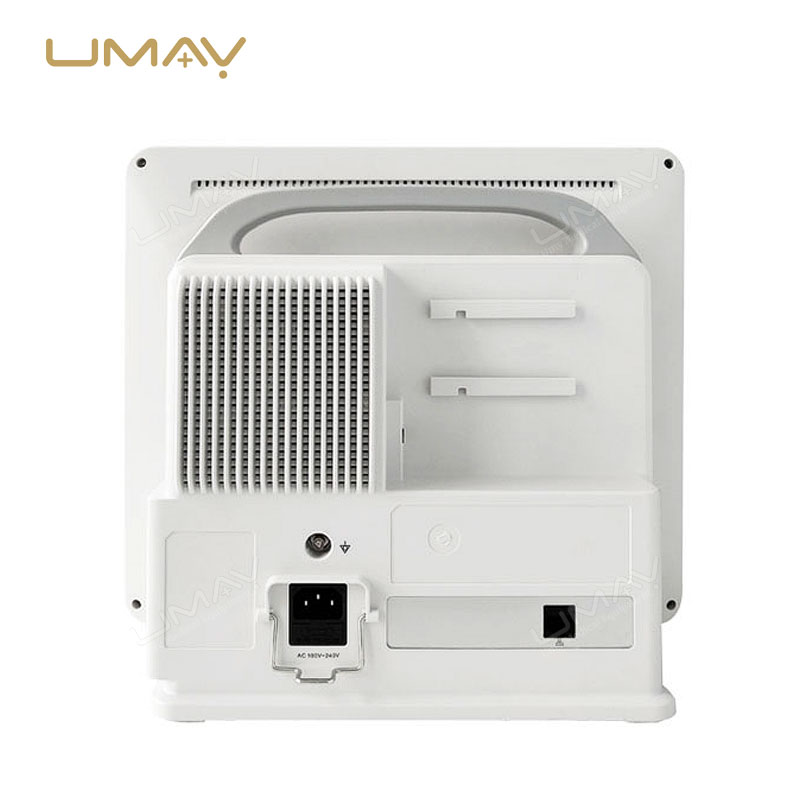

Veterinary Patient Monitor with Capnography and Built in Printer for Dogs and Cats
SKU: UMY-VEPM-004
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
- SKU NO.: UMY-VEPM-004
- Warranty: 1 Year
- Origin: China
This veterinary patient monitor combines capnography with a built-in printer, providing precise CO₂ monitoring and full vital signs tracking for small animals. Ideal for clinics, hospitals, and mobile veterinary units, it ensures accuracy during anesthesia and post-operative care. Its user-friendly interface and detailed printed reports enhance record-keeping and client communication. Pair it with our handheld veterinary anesthesia monitor for a complete anesthesia monitoring solution.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|

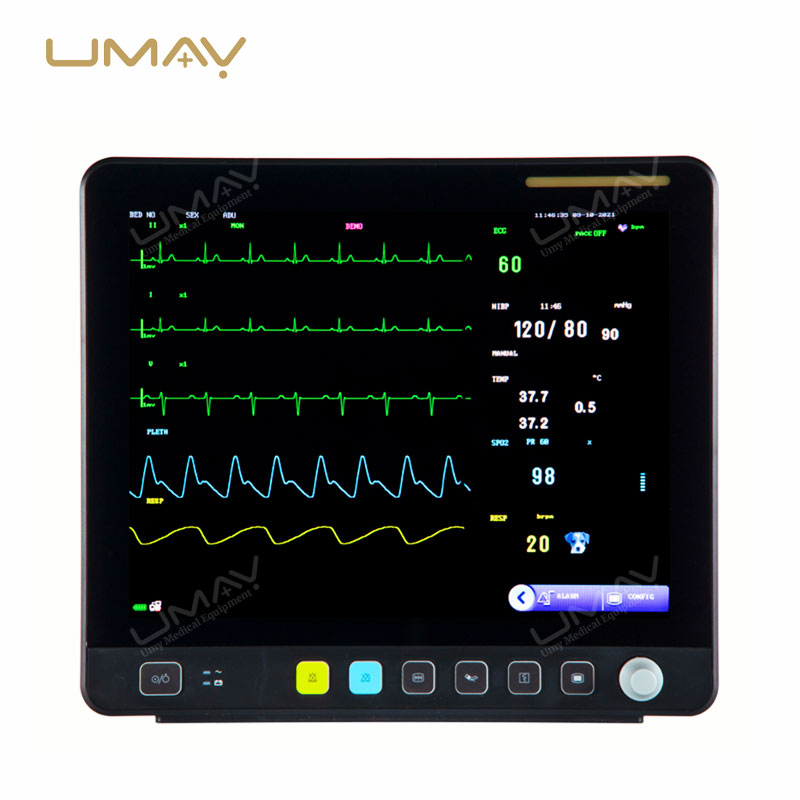

| Display | |
| Screen Type | 15″ TFT color touch screen |
| Resolution | 1024 × 768 |
| ECG | |
| Lead Modes | 3/5-lead, auto recognition |
| Frequency Response | 0.05 – 130 Hz |
| CMRR | ≥100dB |
| HR Range | 15 – 350 bpm |
| HR Accuracy | ±1 bpm or 1% |

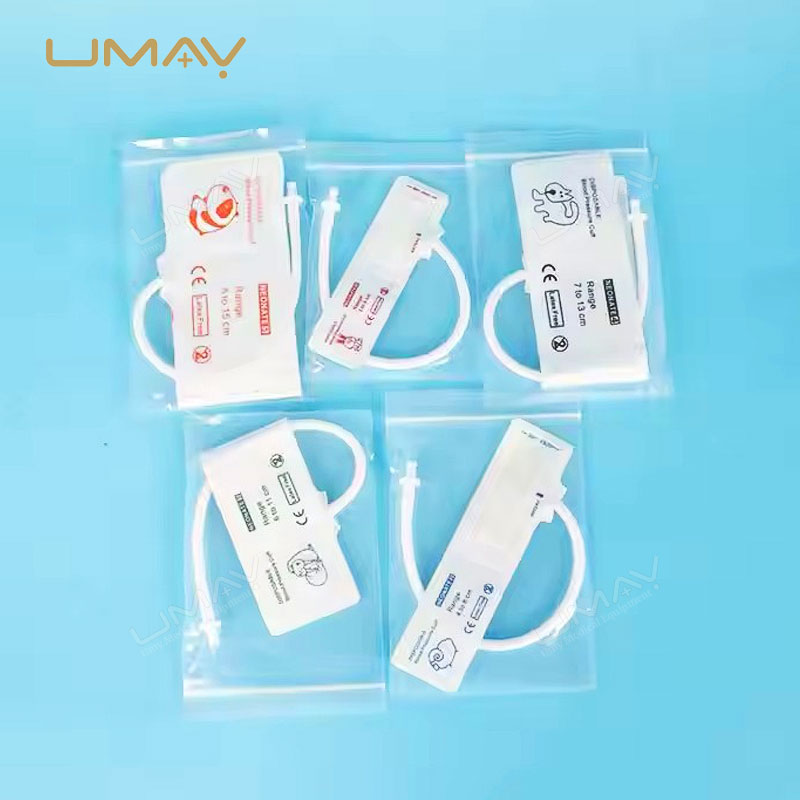

| NIBP | |
| Measurement Method | Oscillometry |
| Measurement Mode | Manual / Auto / STAT |
| SYS Range | 40 – 270 mmHg |
| DIA Range | 10 – 215 mmHg |
| MEAN Range | 20 – 235 mmHg |
| Accuracy | ±5 mmHg |
| SpO2 | |
| Measurement Range | 0 – 100% |
| Accuracy | ±2% (70%–100%) |
| RESP | |
| Resp Rate Range | 0 – 120 BrPM |
| Resolution | 1 BrPM |
| Accuracy | ±2 BrPM |
| Temperature | |
| Channels | 2 |
| Range | 0 – 50°C |
| Accuracy | ±0.1°C |
| CO2 (EtCO2) | |
| Type | Side/Main Stream |
| Measurement Range | 0 – 150 mmHg |
| Accuracy | ±2 mmHg (0–40 mmHg) |

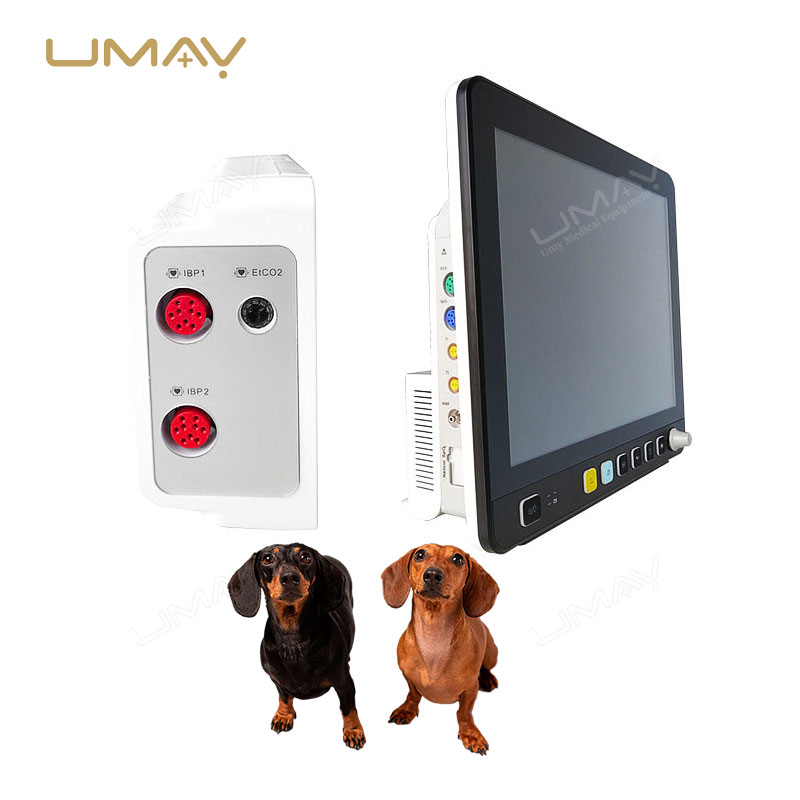

| Optional Modules | |
| Optional CO2 Module | Available |
| Optional IBP Module | Available |
| Printer / Trolley / Wall Mount | Available |
| Quality & Classification | |
| CE Certification | ISO13485 |
| Application Scene | Animal Surgery, ICU, OR, Monitoring |
| Power & Battery | |
| Power Supply | AC 100–240V, 50/60Hz |
| Battery Type | Built-in rechargeable lithium battery |
| Battery Capacity | 4000mAh |
| Battery Runtime | ≥2 hours after full charge |
| Physical Specifications | |
| Dimensions | 360mm × 162mm × 321mm |
| Weight | 4.5kg |
