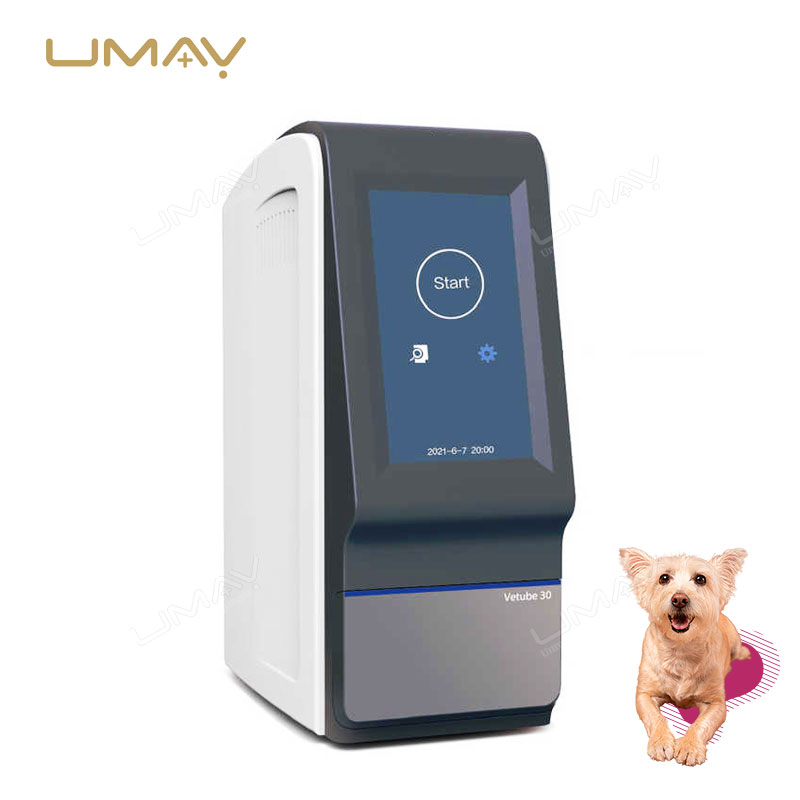

Veterinary Dry Chemistry Analyzer Vetube 30 for Animal Diagnostics
Quick Info.
Product name: Veterinary Chemistry Analyzer For Vet
Application: Veterinary Hospital/Clinics/Lab
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
- SKU NO.: UMY-VECA-001
- Warranty: 1 Year
- Origin: China
The Vetube 30 Veterinary Dry Chemistry Analyzer provides rapid, accurate, and convenient biochemical testing tailored specifically for veterinary clinics. Using advanced dry chemistry technology, it delivers precise diagnostic results quickly to support timely medical decisions for pets and livestock. With a compact, user-friendly design, this analyzer is perfect for various animal health settings, ensuring efficient workflow and minimal sample handling. It supports comprehensive biochemical panels, helping veterinarians manage animal diseases, monitor health conditions, and guide treatment effectively.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| General Information | |
| Name | Veterinary Chemistry Analyzer |
| Method | Lambert-Beer law |
| Wavelength | 340nm, 405nm, 450nm, 505nm, 550nm, 600nm, 630nm, 700nm, 800nm |
| Throughput | 10 minutes/sample |
| Sample Type | Whole blood/Plasma/Serum |
| Sample Volume | 100 µL |
| Data | ≥ 50,000 sample and control record |
| Key Specifications | |
| Application Parameters | TP, ALB, GLOB, ALB/GLOB, T-BIL, ALT, AST, AST/ALT, ALP, CK, α-AMY, BUN, CREA, BUN/CREA, Ca P, TC, GLU, I-BIL, Mg |
| Species Supported | Cat, Dog, Rabbit, Mouse, Monkey, Cattle, Sheep, Goat, Cow, Horse, Pig, Elephant, Camel |
| Printer | Thermal printer/Print on PC via software |
| Calibration | Free of calibration, built-in calibration algorithm |
| Test Panels | |
| Health Checking | TP, ALB, GLOB, ALB/GLOB, T-BIL, ALT, AST, AST/ALT, ALP, CK, α-AMY, BUN, CREA, BUN/CREA, Ca P, TC, GLU |
| Liver and Kidney Profile | TP, ALB, GLOB, ALB/GLOB, T-BIL, ALT, AST, AST/ALT, γ-GT, ALP, BUN, CREA, BUN/CREA, UA |
| Preanesthetic Profile | TP, ALT, AST, AST/ALT, ALP, CK, LDH, BUN, CREA, BUN/CREA, GLU |
| Critical Care | K, Na, Na/K, Cl, CO2, BUN, CREA, BUN/CREA, ALT, GLU, α-AMY |
| Electrolyte | K, Na, Na/K, Cl, CO2, Ca, P, Mg |
| Liver Profile | TP, ALB, GLOB, ALB/GLOB, T-BIL, D-BIL, I-BIL, ALT, AST, AST/ALT, γ-GT, ALP |
| Kidney Profile | ALB, BUN, CREA, BUN/CREA, CO2, Ca, P, UA |
| Basic Examination | TP, ALB, GLOB, ALB/GLOB, ALT, ALP, BUN, CREA, BUN/CREA, GLU |
| Power and Connectivity | |
| Power | AC 100V-240V, 50-60Hz, DC 24V |
| Weight | 4.3kg |
| Dimensions | Length: 27 cm, Width: 15.5 cm, Height: 36 cm |
| Connection | 2 USB ports, supports LIS system |
