Veterinary Auto Hematology Analyzer BC-20 Vet CBC Machine 3-Part Differential
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
- SKU NO.: UMY-VEHA-001
- Warranty: 1 Year
- Origin: China

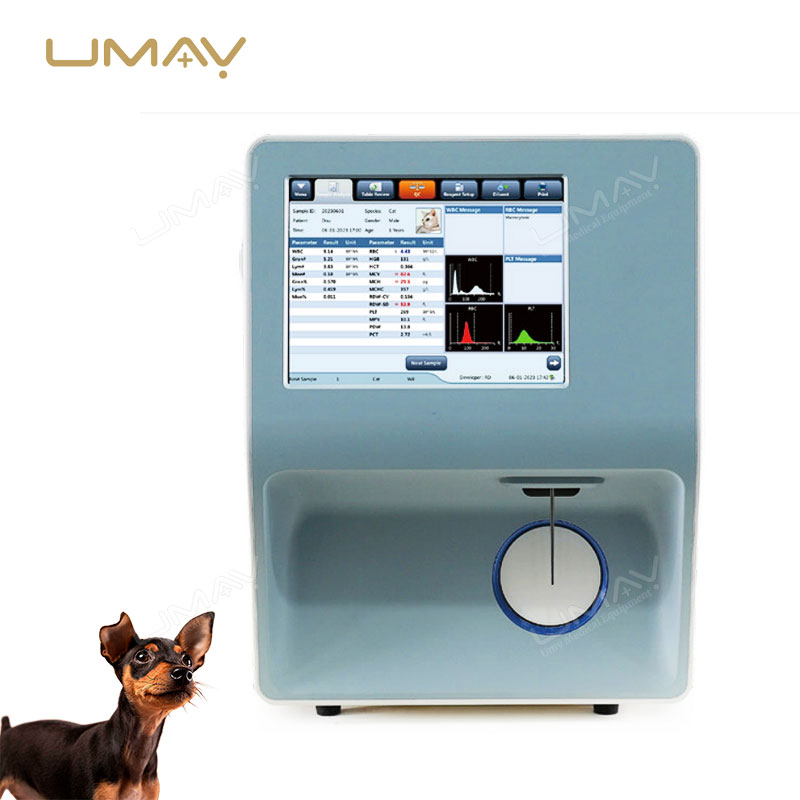

The Veterinary Auto Hematology Analyzer BC-20 Vet delivers accurate complete blood count (CBC) results with a 3-part differential, specifically tailored for veterinary practices. Its intuitive 8.4-inch color touchscreen ensures easy operation, providing clear and rapid results for diverse animal species including dogs, cats, and horses. Capable of processing up to 40 samples per hour, this CBC machine improves diagnostic efficiency and clinical workflow. The integrated thermal printer enables immediate report availability, allowing for swift clinical decisions and enhanced patient care.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Principles | |
| Measurement method | Impedance method for WBC, RBC, and PLT count |
| Additional method | Cyanide free reagent for hemoglobin test |
| Parameters | |
| WBC | Lym%, Mon%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, PLCR, PLCC |
| *PLCR and PLCC only available for dogs | |
| Sample volume | Whole blood mode 9µL, Prediluted mode 20µL |
| Throughput | 30 samples per hour |
| Display | 8.4 inch TFT touch screen |
| Data Storage | Up to 100,000 results including numeric and graphical information |
| Communication | LAN Port, supports HL7 protocol, bidirectional LIS |
| Available languages | Chinese, English, Russian, French, Spanish, Portuguese, German, Italian, Polish, Turkish |
| Applicable species | Dogs, cats, horses, rats, mice, rabbits, monkeys, pigs, cows, alpacas, camels, sheep, goats, 13 species + 20 custom species |
| Power Requirements | |
| Power supply | 100V–240V ±10%, ≤180VA |
| Power frequency | 50Hz/60Hz ±1Hz |
| Physical Specifications | |
| Dimensions | Depth: 410mm, Width: 325mm, Height: 435mm |
| Weight | 20 kg |
