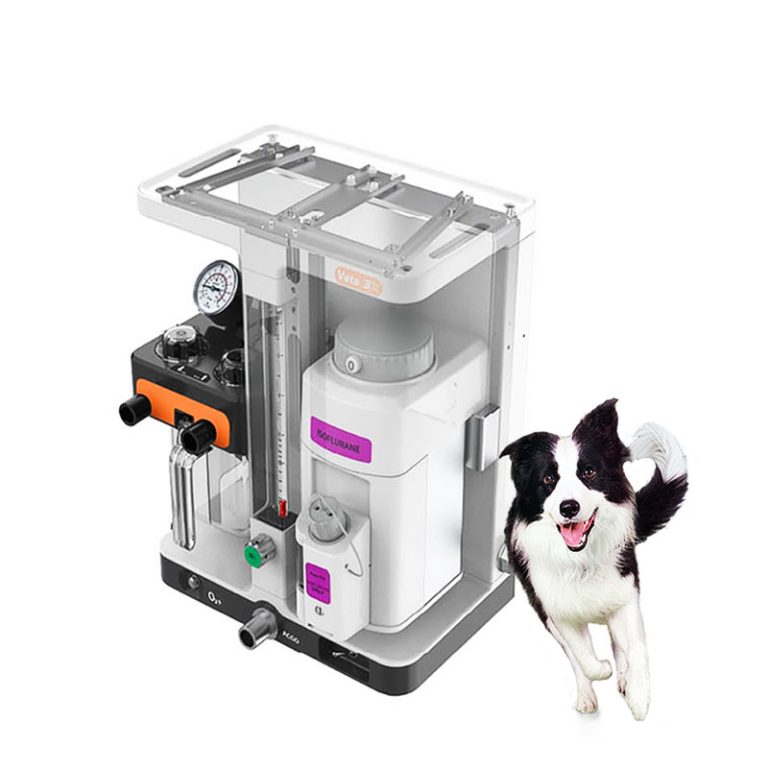

Veta 3X Veterinary Anesthesia Machine for Safe and Adaptive Surgical Ventilation
SKU: UMY-VEAM-004
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
Model Number: Veta 3X
Power Source: Electricity
Warranty: 2 years
After-sale Service: Online technical support
Power Supply Mode: Built-in Battery
Material: plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: GB/T18830-2009
Product name: Veterinary Monitor
Screen: 10.4/12.1 inch LED display
Resolution (pixels): 800 x 600
Battery: Chargeable Lithium-lon, 2.5Ah
Runtime: > 4 h
Basic Parameters: ECG, SpO2 , NIBP, PR, RR, Temp
Extended Parameters: CO2 , IBP, C.O
Weight: <3.5kg
Application: Animal Hospital
Type: Veterinary Products
Power Source: Electricity
Warranty: 2 years
After-sale Service: Online technical support
Power Supply Mode: Built-in Battery
Material: plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: GB/T18830-2009
Product name: Veterinary Monitor
Screen: 10.4/12.1 inch LED display
Resolution (pixels): 800 x 600
Battery: Chargeable Lithium-lon, 2.5Ah
Runtime: > 4 h
Basic Parameters: ECG, SpO2 , NIBP, PR, RR, Temp
Extended Parameters: CO2 , IBP, C.O
Weight: <3.5kg
Application: Animal Hospital
Type: Veterinary Products
- SKU NO.: UMY-VEAM-004
- Warranty: 1 Year
- Origin: China
The Veta 3X Veterinary Anesthesia Machine is engineered for precise anesthetic delivery and real-time ventilation monitoring in animals of all sizes. With multiple ventilation modes and intuitive controls, it supports a wide range of surgical procedures in both routine and emergency settings. Its compact and modular design ensures ease of use in space-limited veterinary environments. Safety features and customizable parameters make it ideal for controlled and efficient anesthesia management.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Pneumatic System | |
| Gas supply | Air, Oxygen |
| Gas supply pressure range | 280 kPa to 600 kPa |
| Flow meter range | 0 L/min to 100 L/min |
| Breathing System | |
| Connector | Coaxial 22mm male/15mm female conical connectors |
| Airway pressure gauge range | -20 cmH2O to 100 cmH2O |
| APL valve range | 0 cmH2O to -70 cmH2O |
| Anesthetic Vaporizer | |
| Filling methods | Isoflurane: Pour Fill, Key Filler |
| Weight | 6.0 kg (empty), 6.5 kg (full) |
| Filling volume | 300 mL (moist wick) |
| Anesthetic Gas Scavenging (AGSS) | |
| Active system type | High flow (75L/min to 105L/min), Low flow (25L/min to 50L/min) |
| Weigher | ≤ 130 mm gas filter canister, max load 2 kg |
| Physical Specifications | |
| Overall dimensions | 620 mm x 515 mm x 330 mm (height x width x thickness) excluding trolley and accessories |
| Weight ≤ | 20 kg (excluding accessories) |
| Maximum weight | ≤ 90 kg (including all accessories) |
| Safety | |
| Degree of protection against electric shock | Type BF, defibrillation-proof |
| Degree of protection against harmful ingress | of IPX1 |
| Degree of protection against hazards of explosion | Ordinary equipment, without protection against explosion; not for use with flammable anesthetics |
| Degree of mobility | Mobile (including the base and casters) |
