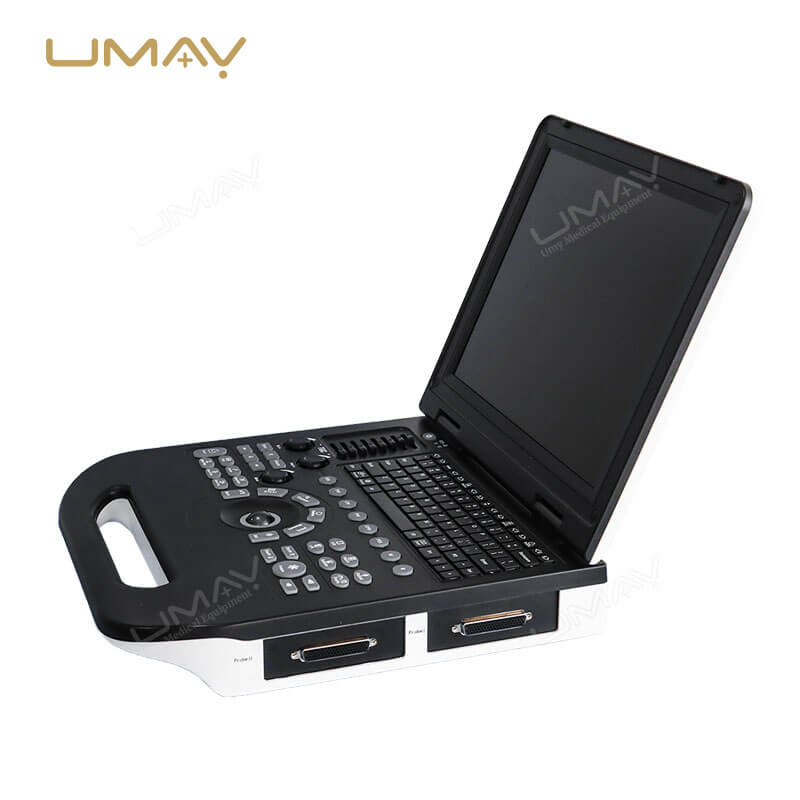

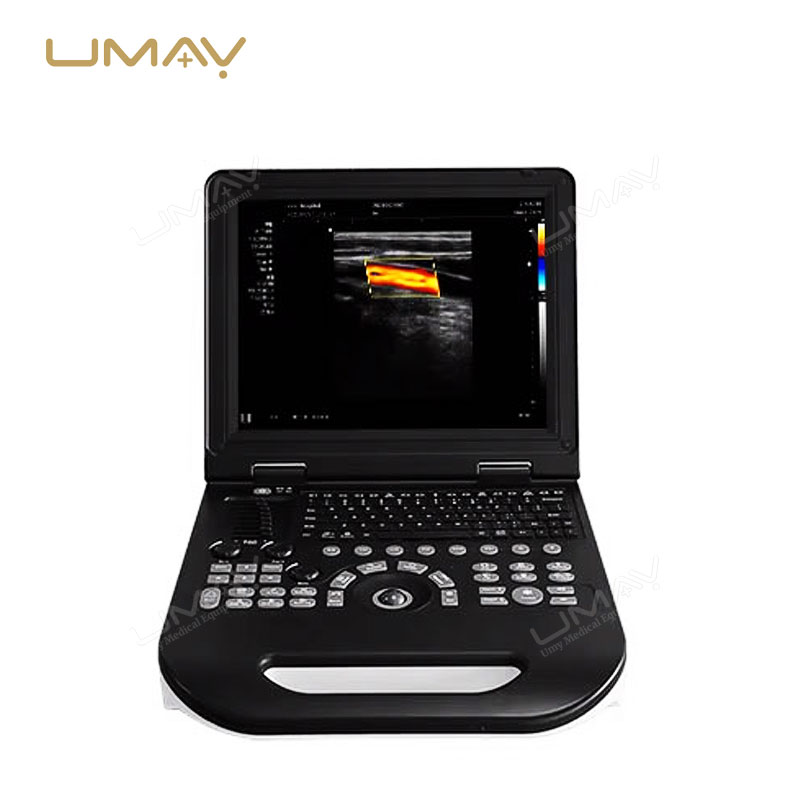

Value-Driven Color Doppler Ultrasound System with 15 Inch Display and 3D Imaging Option
Quick Info.
- SKU NO.: UMY-US-084
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2600 Sets/Year
The portable color Doppler ultrasound system combines advanced imaging features with a 15 inch high resolution display and 16 pseudo color processing options for precise diagnostics. It supports a wide range of applications including obstetrics, cardiology, and abdominal imaging. The dual probe connectors and optional 3D mode enhance examination versatility, while the solid state disk ensures secure image storage up to 128 GB. With HDMI, VGA, USB, and DICOM interfaces, it integrates seamlessly into hospital networks. Its rechargeable battery offers up to 4.5 hours of continuous use for point of care and mobile diagnostics. For professionals seeking an upgraded model, explore the High Resolution 15 Inch Portable 4D 5D Color Doppler Ultrasound Machine.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Application Scene | Abdomen, gynecology, obstetrics, pediatrics, urology, heart, superficial organs, blood vessels |
| Image Mode and Display | |

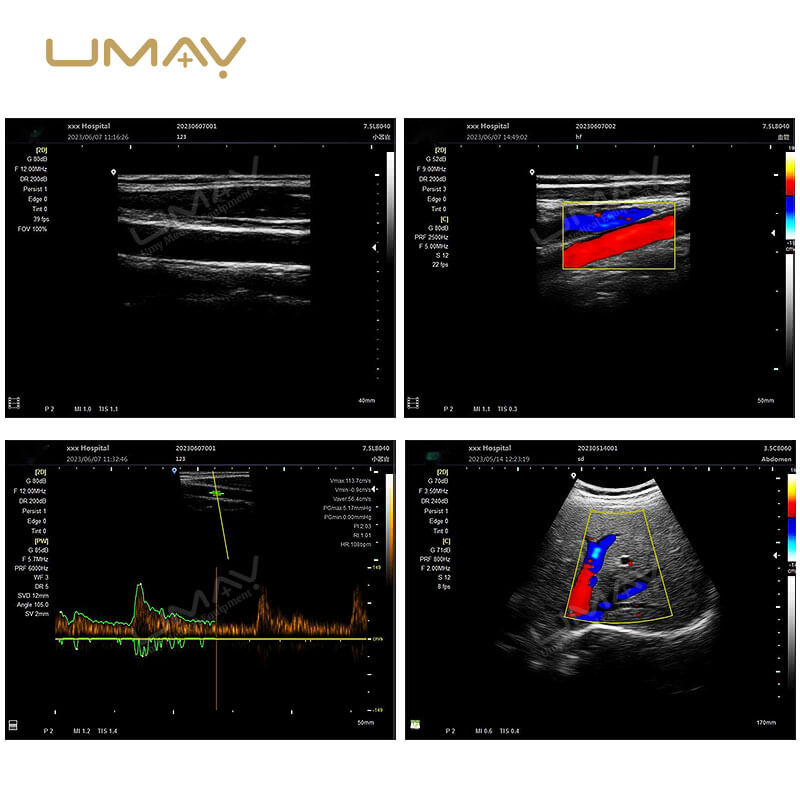

| Image Modes | B, B+B, 4B, B+M, CFM, B+CFM, PDI, PDI+B, PW, B-tilt, 3D (Optional) |
| Scanning Modes | Electron convex array, high-frequency linear array, cavity, micro convex, rectum |
| Display | 15-inch LCD screen |
| Gray Level | 256 levels |
| Display Depth | ≥280mm |
| Probe and Frequency | |

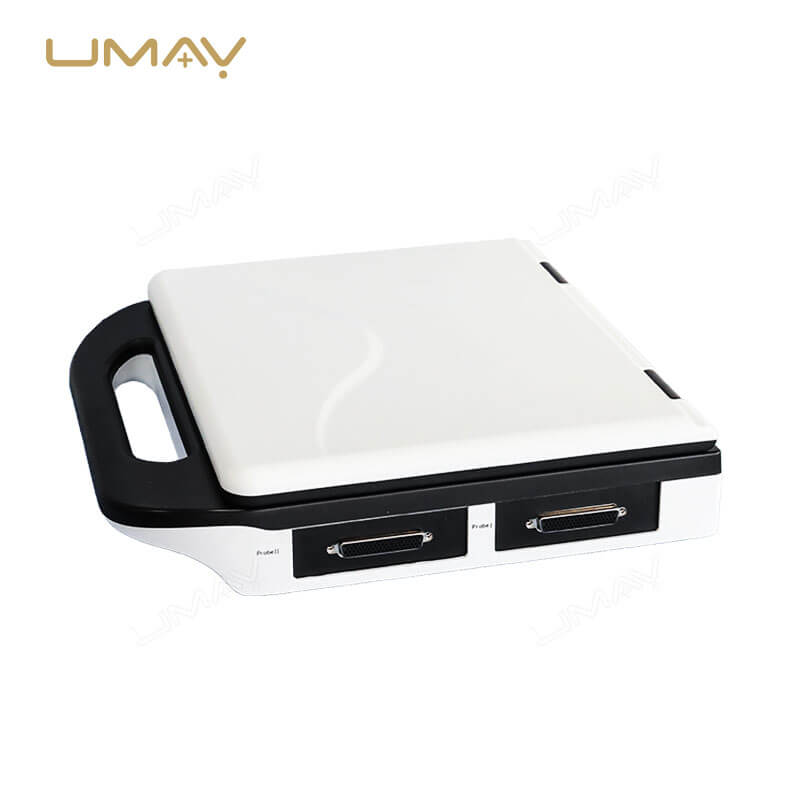

| Probe Ports | 2 automatic probe identification ports |
| Frequency Range | 2.0–12.0 MHz |
| Dynamic Range | 80–280 dB adjustable |
| Measurement and Calculation | |
| Scanning Depth | 2–280mm |
| Measurement Modes | B, M, PW, THI |
| Supported Measurements | Distance, circumference, area, volume, angle, heart rate, etc. |
| Departments | Obstetrics, cardiology, urology, general clinical |
| Preset Exam Types | Built-in optimized presets for different exams |
| Image Processing | |
| Gain Adjustment | 8 segments TGC; B/M/D/C gain independently adjustable |
| Pseudo-Color Modes | 16 coding options |
| Optimization Levels | 5 levels: edge enhancement, frame average, gamma, contrast, brightness, etc. |
| Auto Optimization | Yes, with preset image check types |
| Storage and Reporting | |
| Image Storage | Image, video, and movie playback |
| Storage Capacity | ≥128GB SSD |
| Data Management | Medical record storage, patient data, DVD/USB support |
| Report System | Automatic generation with full-screen Chinese/English text |
| Connectivity and Interface | |

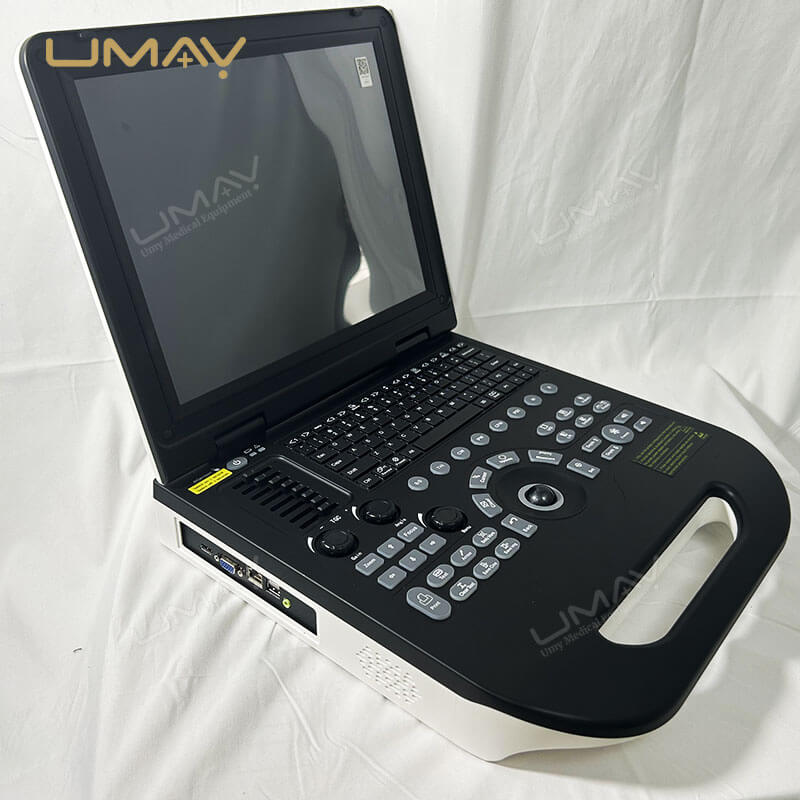

| Interfaces | HDMI, VGA, USB, DICOM |
| Input Voltage | 100–240V, 50/60Hz |
| DC Adapter | 19V, 6A |
| Battery Life | ≥1.5 hours (4.5 hours optional) |
| Physical Specifications | |
| Dimensions | 370mm × 382mm × 90mm (L × W × H) |
| Weight | ≤6.5kg |
| Sound Output | Mechanical index, thermal index, sound power adjustable |
Feature list for UMY-US-084
* 24-channel high-frequency imaging for accurate diagnostics
* Multi-mode imaging including color Doppler and B-mode
* Wireless connectivity for efficient data transfer
* 12.1-inch display for user-friendly operation
* Suitable for both human and veterinary use
Application:
Ideal for mobile healthcare units, small clinics, and veterinary practices, this ultrasound system offers fast, reliable imaging for a wide range of diagnostic applications, including obstetrics, vascular, and abdominal imaging.
