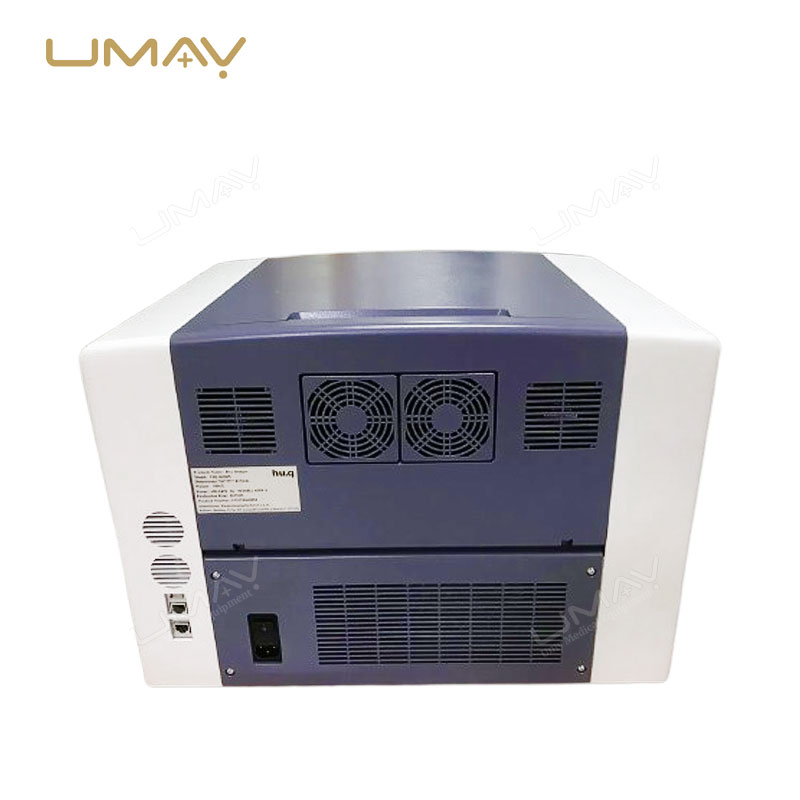

Thermo-Graphic Film Processor Printer for DR Systems with OEM Availability
SKU: UMY-XM-063
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-063
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
This thermo-graphic film processor printer is designed for seamless integration with DR systems, providing high-quality printed images for diagnostic purposes. Ideal for medical facilities requiring reliable and efficient printing of digital radiography images, it offers excellent image clarity and consistency. The printer supports OEM customization, allowing for tailored solutions to meet specific operational needs. With its compact design and easy-to-use interface, it enhances workflow in busy medical environments. This reliable printer is a valuable addition to any diagnostic imaging system, offering superior image quality and print speed.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Printing Specifications | |
| Print Technology | Direct thermal (dry, daylight-load film) |
| Spatial Resolution | 320dpi (12.6 pixels/mm) |
| Throughput | 14″×17″: ≥50 sheets/h; 8″×10″: ≥70 sheets/h |
| Grayscale Contrast Resolution | 14 bits |
| Film Transferring Method | Rubbing |
| Film Specifications | |
| Film Tray | One supply tray, 100-sheet capacity |
| Film Sizes | 8″×10″, 10″×12″, 11″×14″, 14″×17″ |
| Applicable Film | Medical Dry Thermal Film (blue or clear base) |
| Connectivity | |
| Interface | 10/100/1000 Base-T Ethernet (RJ-45) |
| Network Protocol | Standard DICOM 3.0 connection |
| Image Quality | |
| Calibration | Automatic calibration using built-in densitometer |
| Control Panel | |
| Type | Touch Screen, Online Display, Alert, Fault and Active |
| Power and Electrical | |
| Power Supply | 100-240VAC, 50/60Hz, 600W |
| Physical Specifications | |
| Weight | 50 kg |
| Operating Temperature | 5℃–35℃ |
| Storage Humidity | 30%–85% |
| Storage Temperature | -22℃–50℃ |
| Base Holding | Optional |
