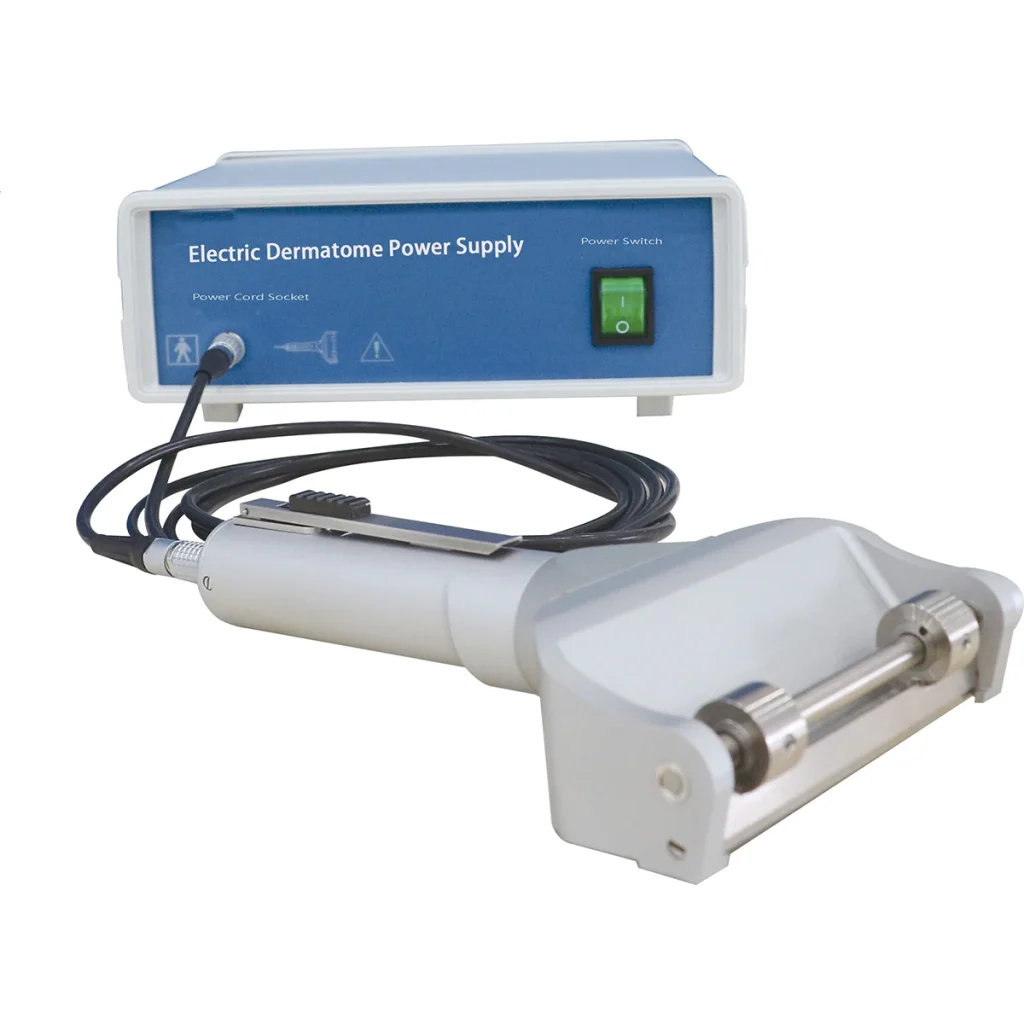

Skin Grafting Electric Dermatome for Burn Treatment and Plastic Surgery Procedures
Quick Info.
Product name: Electric dermatome with five skin width pedal
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-EN-051
- Warranty: 1 Year
- Origin: China
The Skin Grafting Electric Dermatome is specifically engineered for precise, consistent skin harvesting in burn care and reconstructive surgeries. It streamlines grafting procedures, significantly reducing operation time and enhancing graft quality, vital for rapid patient recovery. Its ergonomic design ensures surgeon comfort and accuracy, supporting various graft thicknesses tailored to individual clinical requirements. Ideal for managing severe burns, trauma injuries, and cosmetic reconstruction, this dermatome offers exceptional reliability and efficiency in modern surgical practices.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | |
| Power | 220V ~ 50Hz |
| Motor Power | 40W |
| Motor | |
| Motor Type | Miniature Brushless DC Motor |
| Speed | 0 ~ 6500RPM |
| Blade | |
| Blade Type | Imported Medical Stainless Steel |
| Thickness | 0.05-0.75 mm (adjustable) |

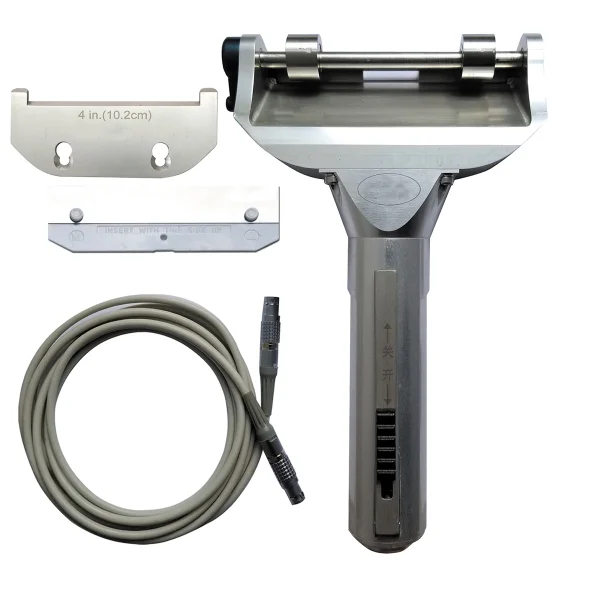

| Blade Width | 1 inch (2.5cm), 1.5 inch (3.8cm), 2 inch (5.1cm), 3 inch (7.6cm), 4 inch (10.2cm) |
| Thickness Adjustment | Adjustable via micro knob, 0.05mm per dial ( OEM customizable range 0-1.6mm) |
| Working Mode | Foor Switch / Manual Double Switch |
