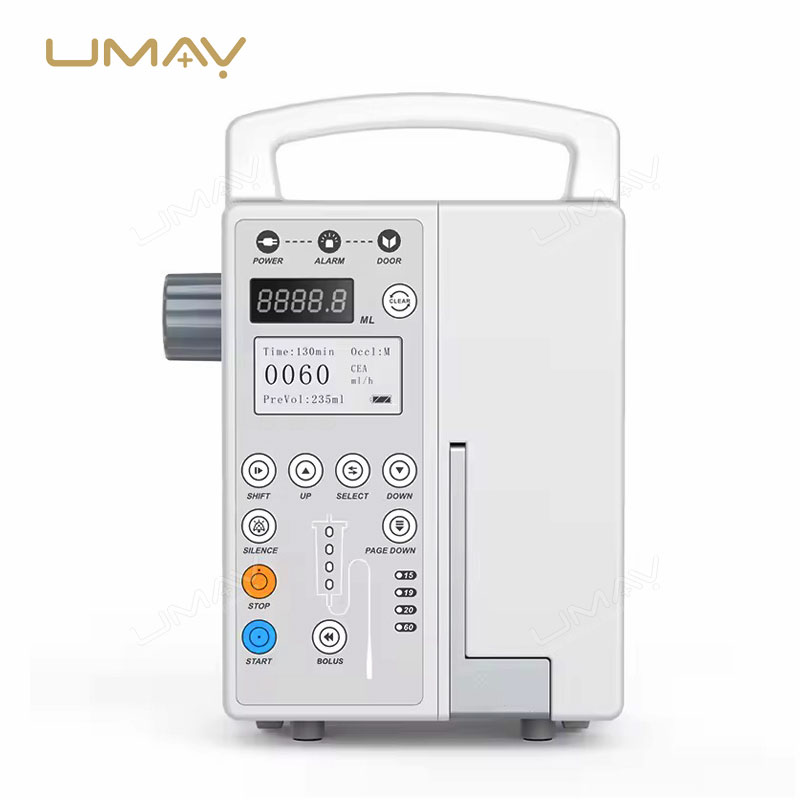

Precision Infusion Pump with Voice Alarm System and Dual CPU for Fluid Management
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-VESP-004
- Warranty: 1 Year
- Origin: China
This veterinary precision infusion pump ensures safe and controlled fluid delivery with a flow rate range of 0.1 ml/h to 1200 ml/h and an infusion accuracy of ±5%. Its dual CPU design offers increased safety and reliability, ensuring smooth and error-free operation. With multiple infusion modes, including bolus and FF (Fast Forward), this pump is ideal for a variety of clinical situations. The 3.5 inch LCD screen displays real time data, and the Voice Alarm System promptly alerts operators to any issues, providing a critical layer of safety. The pump can store up to 50,000 treatment records, which is ideal for long-term patient care tracking.
For additional diagnostic equipment, veterinary clinics can explore the Portable Full Digital Veterinary Ultrasound Scanner for Precise Diagnostics.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Infusion Rate | |
| ml/h mode | 1 ~ 1200ml/h |
| d/min mode | 1 ~ 266 d/min |
| Unit Conversion | d/min and ml/h unit can be converted. |
| FF Rate | 100 ~ 1200ml/h (100ml/step) |
| KVO Rate | 1 ~ 5.0ml/h |
| VTBI (volume to be Injected) | 1 ~ 9999ml |
| Cumulative Infusion Volume | 0 ~ 9999.9ml |
| Infusion Accuracy | |
| d/min mode | ±3% (after calibration) |
| ml/h mode | ±5% (after calibration) |
| Air Bubble Size | ≤25μl |
| Alarms Information | Near infusion finished, infusion finished, door open, air bubble, forgotten operation, battery low, battery empty, abnormal running state, equipment failure, power fault, replace infusion set, drop sensor is pulled out, etc. |
| Power | |
| Power Source | Three options for power supply |
| First | 100~240VAC, 50/60Hz |
| Second | Inserting Li battery 11.1V, capacity ≥1800mAh; 4 hours backup time at the rate of 25ml/h for a fully charged battery. |
| Third | External DC 12V power supply |
| Drug Library | Up to 1000 drugs are provided. |
| Dimensions | 140mm (L) × 128mm (W) × 228mm (H) |
