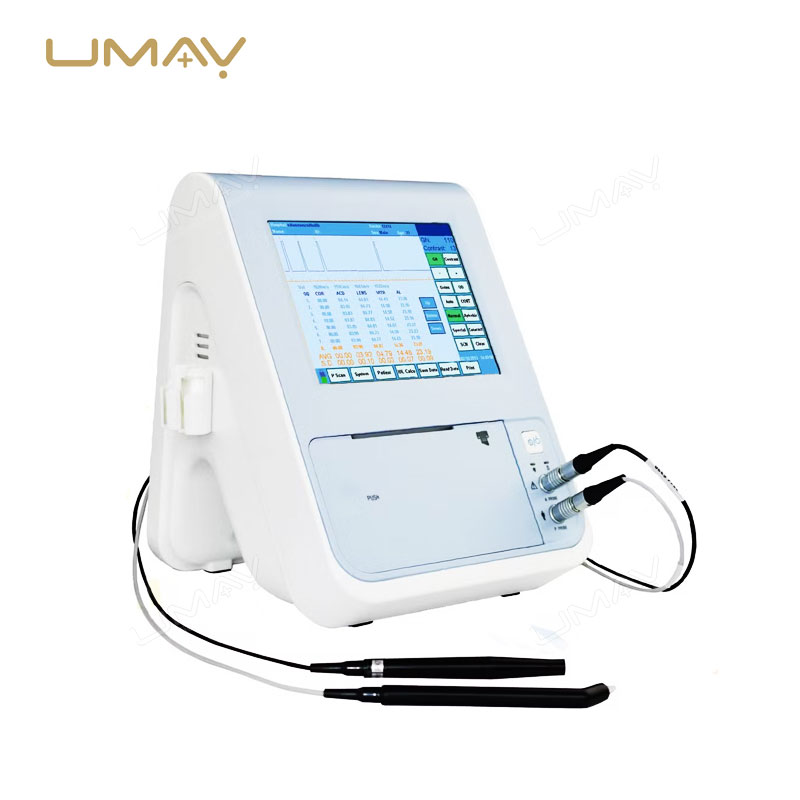

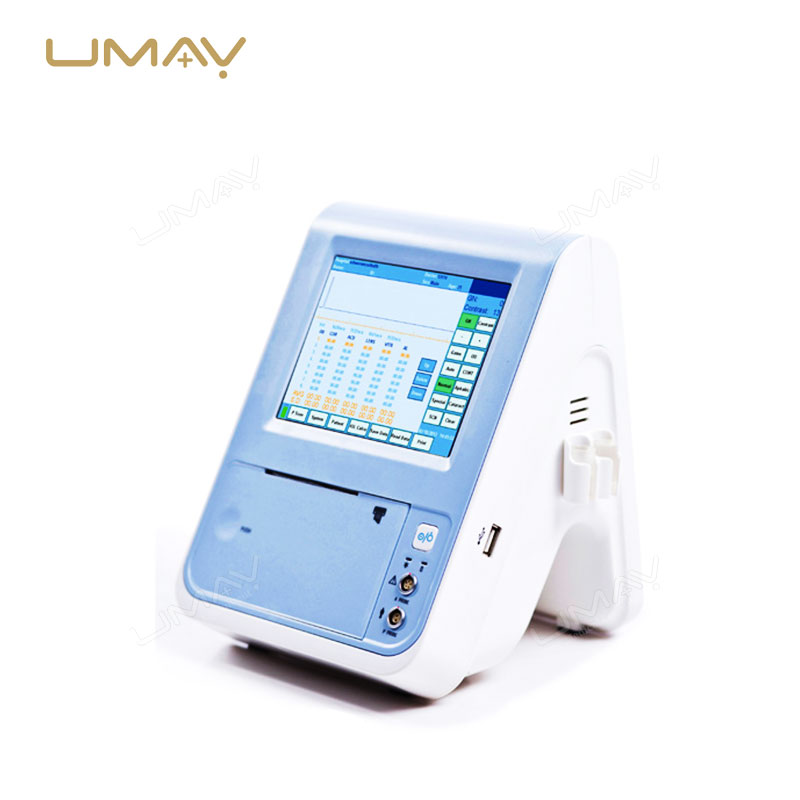

Portable Ophthalmic A-Scan Ultrasound Biometer and Pachymeter for Precise Eye Measurements
SKU: UMY-US-061
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-061
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
The portable ophthalmic A-scan ultrasound biometer and pachymeter offers advanced definition for accurate eye measurements in a compact design. This device is essential for measuring axial length, corneal thickness, and other critical parameters for diagnosing and managing ocular conditions like cataracts and glaucoma. It is ideal for both preoperative assessments and postoperative evaluations, providing essential data for refractive surgery planning. With its user-friendly interface, this portable model allows for easy use in various clinical settings, ensuring precise measurements to enhance patient care. Perfect for ophthalmologists seeking reliable, high-definition imaging on the go.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Biometer Specifications | |
| Probe Frequency | 10 MHz |
| Resolution | 0.01 mm |
| Accuracy | ±0.02 mm |
| Gain Adjustable | 0–120 dB |
| Measurement Range | 15–35 mm (velocity 1640 m/s) |
| Measurement Targets | ACD, Lens, Vitreous, AXL |
| Examination Modes | Normal, Aphakic, Pseudophakic, Dense Cataract |
| Measurement Mode | Immersion and contact, auto and manual |
| IOL Formulas | SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS |
| Pachymeter Specifications | |
| Probe Frequency | 20 MHz |
| Resolution | 1 µm |
| Measurement Range | 0.23–1.3 mm |
| Accuracy | ±5 µm |
| Power Requirements | |
| Model | MSLPU21 Biometer/Pachymeter |
| Input Voltage | AC 100–240V, 50–60Hz |
| Power Consumption | ≤ 45 VA |
| Physical Dimensions (L×W×H) | 200 × 168 × 165 mm |
| Standard Configuration | |
| Main Unit | Included |
| 10.0 MHz A Probe | Included |
| 20.0 MHz Angled Probe | Included |
| Gage Blocks | Two kinds |

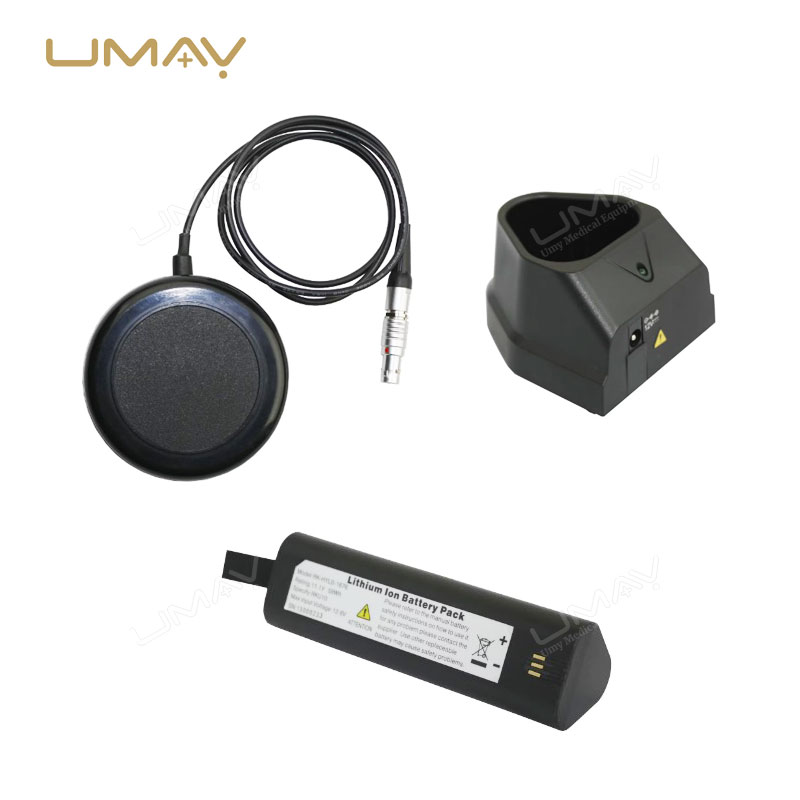

| Footswitch | Included |
| Adapter | Included |
| Touch Screen Pen | Included |
