Portable LED Ultrasound Scanner for Human Diagnostics with Full Digital Imaging
SKU: UMY-US-046
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-046
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3600 Sets/Year
This portable full digital LED ultrasound scanner offers high-resolution imaging for a wide range of human diagnostics. Ideal for obstetrics, cardiology, musculoskeletal, and abdominal imaging, it ensures precise and clear results. The advanced LED technology enhances image clarity, providing excellent detail for accurate assessments. Compact and easy to transport, this system is perfect for clinics, hospitals, and emergency settings. Designed for efficiency and accuracy, it provides reliable diagnostics at an affordable price.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Display and Processing Features | |
| Screen Size | 10.4” high-resolution color LED backlight display |
| System Control | ARM7 embedded system + FPGA signal processing |
| Menu Operation | Supports multiple languages: Spanish, English, French, Russian, Portuguese |

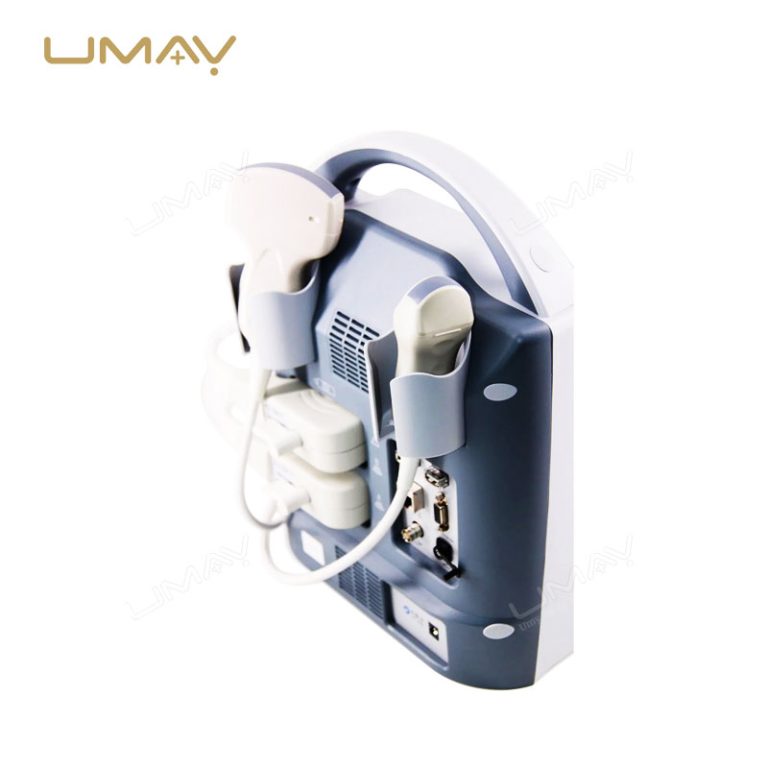

| Probe Sockets | Two probe sockets, auto-identify different optional probes |
| Body Marks | Total of 64 body marks, including probe position |
| Display Modes | B, 2B, 4B, B/M, M |
| Adjustable Depth | 10 grades, max depth 236mm |
| Gain | 0~127dB |
| Contrast | 27~90dB |
| Gray Scale | 256 |
| Intelligent TGC | 8 steps |
| Frame Frequency | 30 frames/second |
| Pseudo Colors | 13 kinds |
| Image Storage | 4G hard disk, stores ~5000 frames (no loss on power off) |
| Cine Loop | 256 frames |
| Measurement and Analysis | |
| Puncture Guide | Puncture guiding lines with adjustable angle and position |
| Normal Measurements | Distance, perimeter, area, volume, angle, length, area stenosis ratio |
| Cardio Measurements | Depth, slope, heart rate, cycle |
| Gynecology Measurements | General gynecology and gynecology reports |
| OB Measurements | Includes 15 obstetric software tools (GA measurement, amniotic fluid index, fetal growth curve, OB reports) |
| Urology Measurements | Residual urine volume, prostate volume, urology reports |
| Keyboard and Interface | |
| Keyboard | Concise and practical with one-key shortcuts |
| Features | One-key review, one-key print, brightness adjustable for dark rooms |
| Workstation Integration | Supports transferring frozen images to workstations for report management |
| Network Compatibility | Includes network workstation for data/report management |
| Video Output | PAL/NTSC, supports connecting video printers when necessary |
