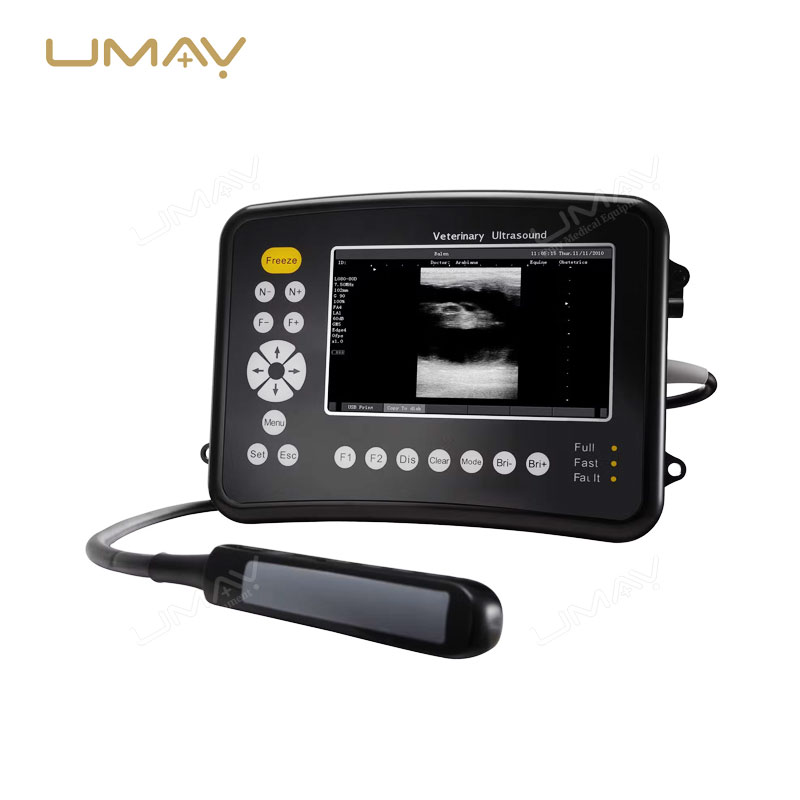

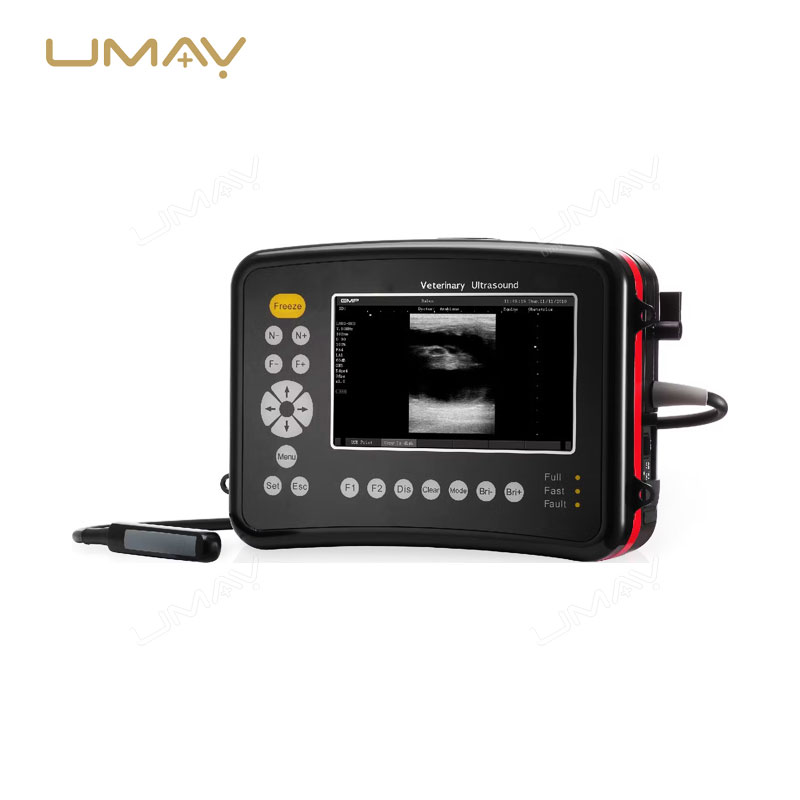

Portable Full Digital Veterinary Ultrasound Scanner for Precise Diagnostics
SKU: UMY-US-063
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-063
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This portable full digital veterinary ultrasound scanner offers sharp-detail imaging, making it an essential tool for precise diagnostics in veterinary practices. It is designed for use in a variety of animal care settings, enabling veterinarians to perform detailed examinations for conditions related to musculoskeletal, abdominal, and reproductive systems. The high-resolution imaging ensures clear visibility, assisting in the early detection of health issues. Its compact and lightweight design ensures ease of use in both clinic and field environments. Ideal for veterinarians seeking a reliable, high-quality imaging solution for animal healthcare.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| General Specifications | |
| Imaging Mode | B, B+B, B+M, M |
| Gray Scales | 256 |
| Display | 7″ LCD |
| Transducer Frequency | 2.0–10MHz |
| Transducer Connector | 1 (standard) |
| Scanning Depth | From 45 to 250 mm (depending on probes) |
| System Language | English/Spanish |
| Imaging Processing | |
| Pre-processing | Edge enhancement, Near/Far field adjustment, 4 Focuses adjustment, Frame correlation |
| Post-processing | Gamma correction, Left-right reverse, Up-down reverse, 4 levels zoom |
| Functions | |
| Cine Loop | 365 frames bidirectional cine-loop |
| Zoom | x1.0, x1.2, x1.5, x2.0 in real-time |
| Storage Media | Built-in flash, external pen drive |
| Storage Capacity | Min. 1600 frames permanent storage |
| Body Mark | 24 types |
| Pseudo Color | 9 |
| Transducer Auto-detection | Supported |
| Measurement & Calculation | |
| B-mode | Distance, circumference/perimeter, area, volume, angle |
| M-mode | Distance, time, velocity, EF slope, heart rate |
| Display Parameters | |
| Display Content | Data, week, time, transducer model, transducer position, transducer frequency, depth, focus position, body marks, frame rate, measurement values, gain, etc. |
| Power Supply | AC 100-240V 50/60 Hz and DC |
| Physical Specifications | |
| Dimensions | 250mm (W) × 100mm (L) × 185mm (H) |
| Net Weight | 2.5Kg |

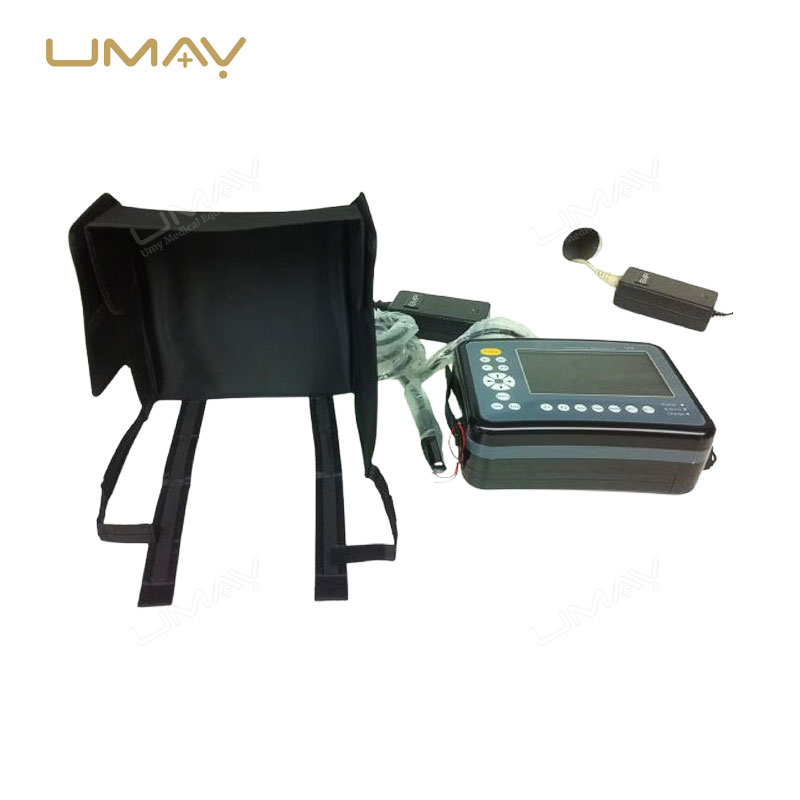

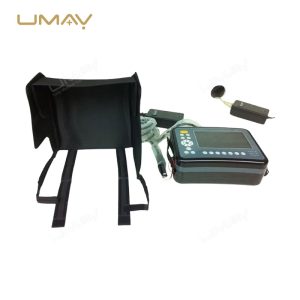

| Standard Configurations | |
| Main Unit | Included |
| Monitor | 7” LCD |
| Transducer Connector | One |
| USB Port | One |
| Carrying Straps | Two |
| Lithium Battery | One |
| Carrying Master Case | One |
| Cine Loop | 365 frames |
| Permanent Storage | Min. 1600 frames |
| Standard Probe | One rectal linear transducer (4.0/5.0/6.5/7.5MHz) |
| Software | Professional software packages |
| Professional Software Packages for Veterinary Use | |
| Canine-GW | EDCB (GSD, CRL, HD, BD) |
| Feline-GW | EDCB (HD, BD) |
| Sheep-GW | EDCB (CRL) |
| Swine-GW | EDCB (HL, SL) |
| Bovine-GW | EDCB (CRL, BBD, BTD, BUD) |
| Equine-GW | EDCB (GSD, ERD, ESD, EED) |
| Llama-GW | EDCB (BPD) |
| Optional | |
| Convex Transducer | 2.5/3.5/5.0MHz |
| Linear Transducer | 5.0/7.5/8.5/10.0MHz |
| Accessories | Car charger, Sun shade, Flash stick |
