Portable B-Mode Sector Ultrasound Scanner for Veterinary Use
SKU: UMY-US-066
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-066
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This portable B-mode sector veterinary ultrasound scanner offers high-quality imaging for a wide range of animal diagnostic applications. Ideal for veterinary practices, it allows for clear and detailed imaging of internal organs, making it suitable for musculoskeletal, abdominal, and cardiac evaluations. With its compact and lightweight design, the scanner provides mobility for use in various clinical and field settings. The user-friendly interface ensures efficient workflow, while the advanced imaging technology helps in accurate diagnoses. This ultrasound scanner is a reliable, cost-effective solution for veterinary professionals.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Technical Specifications | |
Displayed Depth (mm) | 192 |
Maximal Detect Depth (mm) | ≥140 |
Resolution (mm) | Lateral, ≤4 (depth≤80); ≤5 (depth>80) |
Blind Zone (mm) | ≤8 |
Geometric Position Precision | Horizontal ≤20; Vertical ≤10 |
Monitor Size | 5.0″ TFT-LCD |
Display Mode | B, B+B, B+M, M, 4B |
Image Gray Scale | 256 |
Scan Depth | 120mm–190mm |
Image Process | Histogram, color encode, gamma, image smooth |
Measurement | Distance, circumference, area, volume, heart rate, gestation age |
Notation | Date, time, name, sex, age, full screen words edit and etc. |

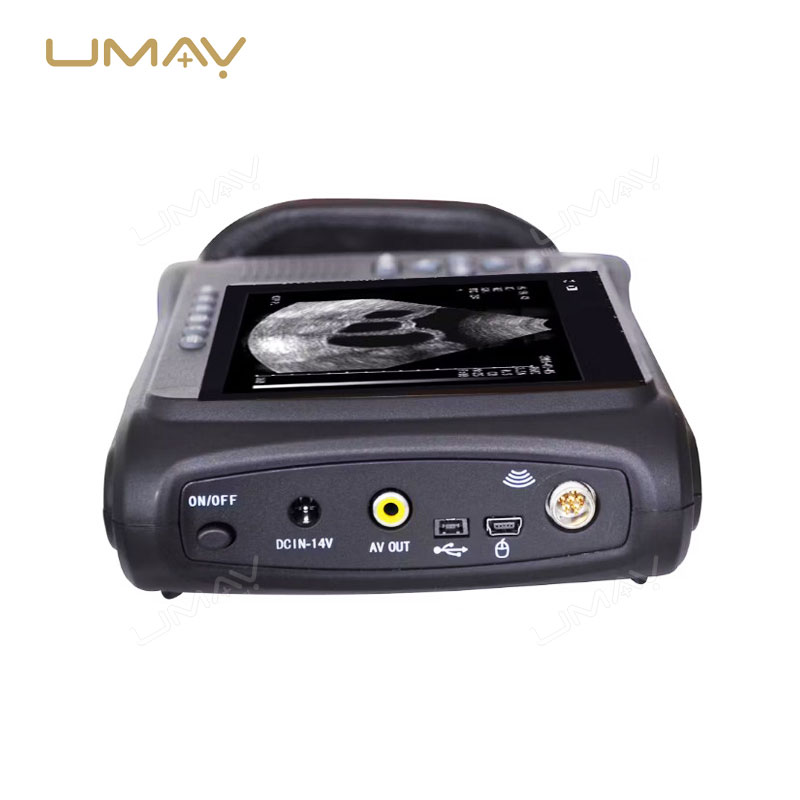

Output | USB 2.0, VIDEO (PALD, NTSC) |
Power | |
Charging Method | Adapter, Battery |
Adapter Rating | 100-240V, 50-60Hz, 70VA |
Battery | 2600mAh, continuous work ≥ 3 hours |
Physical Specifications | |
Machine Dimension | 230mm (L) × 120mm (W) × 38mm (H) |
Net Weight | 800g |

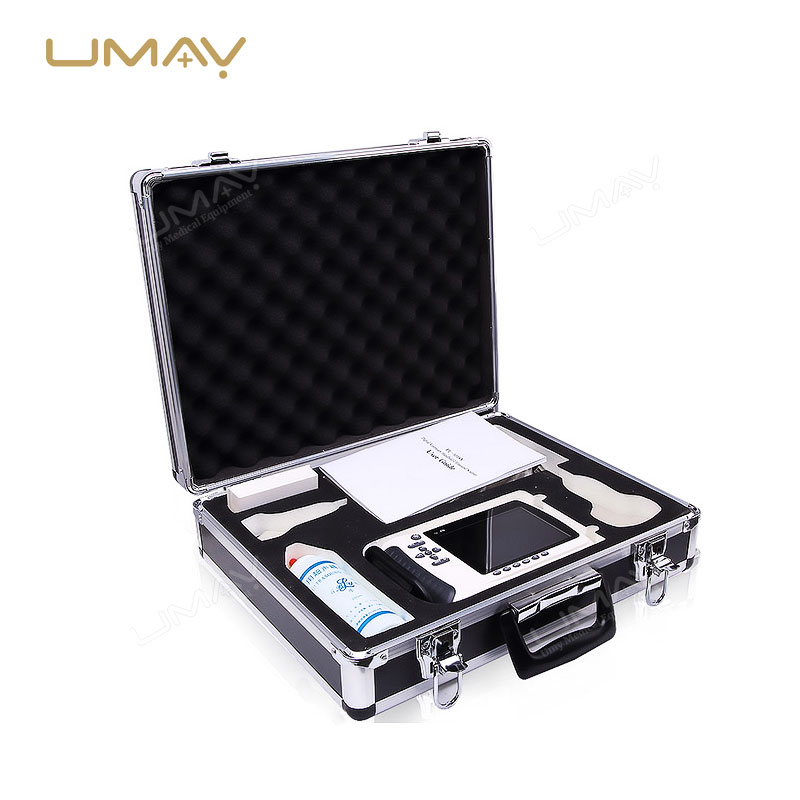

Standard Configuration | |
Scanner Body | 1pc |
Li-ion Battery | 1pc |
3.5MHz Sector Probe | 1pc |
Charger with a Set of Wires | 1 set |
Wrap Bag | 1pc |
Bottle of USG Gel | 1pc |
Transportation Case | 1pc |
User Manual | 1pc |
Optional Accessories | |
Optional Probe | 5.0MHz Waterproof Sector Probe |
Printer | Video Printer |
Additional Power | Li-ion Battery, Car Charger |
Cable | Charging Adaptation Wire |
