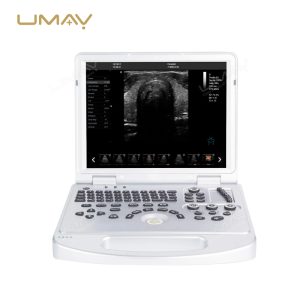

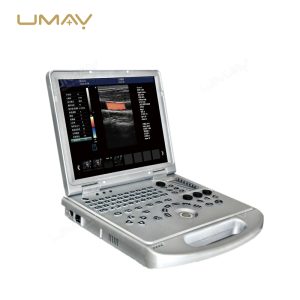

Portable 3D/4D/5D Color Doppler Ultrasound System
The UMY-US-047 is a portable color Doppler ultrasound system designed for multi-department diagnostic imaging. The system combines 3D/4D/5D imaging capability, PW/CW Doppler functions, color-flow imaging and a 15-inch LCD display in a compact portable platform.
The standard configuration includes a 3.5 MHz convex probe and supports additional linear, transvaginal and microconvex transducers according to the intended examination requirements.
DICOM 3.0 connectivity, cine-loop storage, digital image processing and multiple measurement packages support use in hospitals, outpatient clinics, diagnostic centers and mobile examination environments.
Key Features
3D / 4D / 5D Imaging
The platform supports advanced volumetric ultrasound imaging configurations for applications such as obstetric and gynecological examination.
PW / CW Doppler
Pulsed-wave and continuous-wave Doppler functions support blood-flow and hemodynamic assessment according to the installed probe and software configuration.
15-Inch LCD Display
A 15-inch LCD monitor provides a large viewing area for image acquisition, measurements and routine examination review.
7.3 kg Portable Design
The compact system weighs approximately 7.3 kg, supporting flexible movement between examination rooms and portable diagnostic workflows.
DICOM 3.0
DICOM 3.0 connectivity supports integration with compatible hospital image-management and archiving workflows.
Multiple Probe Options
The standard convex probe can be supplemented with linear, transvaginal and microconvex transducers according to clinical requirements.
Digital Image Processing
Image-processing functions include temporal and spatial filtering, frame correlation, edge enhancement and grayscale processing.
Cine Loop & Data Storage
Probe settings, images, cine loops, measurements and reports can be stored for examination review and documentation.
Clinical Applications
The UMY-US-047 can be configured for multiple diagnostic ultrasound applications according to the selected probes and software packages.
- Abdominal ultrasound.
- Obstetrics and gynecology.
- Cardiac imaging.
- Peripheral vascular examination.
- Urology.
- Small-parts imaging.
- Breast and thyroid examination.
- Musculoskeletal imaging.
- Pediatric examination.
- Routine general ultrasound diagnostics.
Imaging Modes
| 2D Imaging | B / 2B / 4B |
|---|---|
| M-Mode | M / B-M combinations |
| Spectral Doppler | PW / CW according to system configuration |
| Color Doppler | CFM |
| Power Doppler | CPA |
| Combined Modes | B/D, B/C/D, B/C/M and related duplex / triplex configurations |
| Volume Imaging | 3D / 4D / 5D according to installed probe and software configuration |
Standard Configuration
| Main Unit | UMY-US-047 Portable Color Doppler Ultrasound |
|---|---|
| Standard Probe | 3.5 MHz Convex Probe |
| Display | 15-Inch LCD Monitor |
| Probe Connector | 1 |
| USB | Available |
| DICOM | DICOM 3.0 |
Optional Probe Configuration
| Probe | Listed Frequency | Typical Application |
|---|---|---|
| Linear Probe | 7.5 MHz | Vascular, thyroid, breast, small parts and superficial structures |
| Transvaginal Probe | 7.0 MHz | Gynecological and transvaginal examination |
| Microconvex Probe | 2.0 MHz | Selected abdominal, pediatric and compact-access applications |
Final transducer frequency range and probe package should be confirmed according to the selected system configuration before quotation.
Measurement and Calculation Packages
General B-Mode Measurements
Distance, angle, perimeter, area, volume, histogram and cross-sectional measurements are supported.
M-Mode Measurements
Measurement functions include heart rate, time, distance and velocity.
Obstetric Measurements
The listed obstetric package includes gestational-age related measurements, fetal growth assessment and examination reporting functions.
Vascular Measurements
Area and diameter stenosis measurements support peripheral vascular examination workflows.
Small-Parts Measurements
Measurement tools support thyroid, breast and other superficial-structure assessment.
Cardiac Measurements
Cardiac measurement functions include heart rate, velocity and selected ventricular, aortic and mitral measurements.
Obstetric Measurement Functions
The supplied software configuration includes obstetric measurements and report functions for routine OB examination workflows.
- Amniotic Fluid Index (AFI).
- Gestational age estimation.
- Fetal growth curve.
- Fetal biophysical score.
- Biparietal diameter (BPD).
- Occipitofrontal diameter (OFD).
- Femur length (FL).
- Abdominal circumference (AC).
- Head circumference (HC).
Image Processing
- Logarithmic conversion and dynamic-range processing.
- Temporal filtering.
- Spatial filtering.
- Frame correlation.
- Edge enhancement.
- Grayscale conversion.
- Image inversion.
- Scan angle and width adjustment.
- Tissue and blood-flow image processing.
Image Storage and Cine Review
The system provides digital storage functions for examination data and supports cine-loop review during ultrasound assessment.
- Probe-parameter storage.
- Image storage.
- Cine-loop storage.
- Measurement-result storage.
- Report storage.
- Automatic and manual cine-loop operation.
- Forward and backward cine review.
Connectivity
| DICOM | DICOM 3.0 |
|---|---|
| USB | Available |
| Video Output | Available according to configuration |
| VGA | Available according to configuration |
| Network Interface | Available |
| Serial Communication | Available |
| Parallel Communication | Available according to configuration |
Technical Specifications
| Model | UMY-US-047 |
|---|---|
| Product Type | Portable Color Doppler Ultrasound System |
| Imaging Capability | 2D / Color Doppler / 3D / 4D / 5D according to configuration |
| Doppler Modes | PW / CW |
| Display | 15-Inch LCD Monitor |
| Display Resolution | 1024 × 768 |
| Grayscale | 256 Levels |
| Standard Probe | 3.5 MHz Convex Probe |
| Probe Connector | 1 |
| DICOM | DICOM 3.0 |
| Weight | Approx. 7.3 kg |
| Power Supply | AC 220 V ±22 V, 50 Hz ±1 Hz |
| Input Power | 350 VA |
| Scanning | Electronic Linear Array / Electronic Convex Array |
| Interface Language | English |
Optional Accessories
- 7.5 MHz linear probe.
- 7.0 MHz transvaginal probe.
- 2.0 MHz microconvex probe.
- Thermal printer.
- Laser printer.
- Ultrasound trolley.
- Additional volume / specialist probe options subject to final configuration.
Before Ordering
The final UMY-US-047 configuration depends on the intended clinical applications, required probes and software package. Please provide the following information when requesting a quotation.
- Required quantity.
- Destination country.
- Main clinical applications.
- Required probe types.
- Need for 3D / 4D / 5D imaging.
- Required PW / CW Doppler functions.
- Required DICOM or network connectivity.
- Need for printer or trolley.
- Local power supply requirements.
- Required tender or technical documentation.
Request an Ultrasound Quotation
Looking for a portable color Doppler ultrasound system for a hospital, clinic, distributor project or tender? Send us your required applications, probes and quantity for configuration review and quotation.
Send Your Requirements
Please provide your intended applications, required probes, quantity and destination country. Tender specifications or equipment lists can also be sent directly for review.
Frequently Asked Questions
Does the UMY-US-047 support 3D, 4D and 5D ultrasound imaging?
Yes. The system is available with 3D/4D/5D imaging capability according to the selected probe and software configuration.
Does the system support PW and CW Doppler?
Yes. PW/CW Doppler functionality is available according to the configured ultrasound platform and probe package.
Which probe is included as standard?
The listed standard configuration includes one 3.5 MHz convex probe.
Which probes are optional?
Listed options include a 7.5 MHz linear probe, 7.0 MHz transvaginal probe and 2.0 MHz microconvex probe. Additional specialist probes should be confirmed according to the final configuration.
Does the ultrasound system support DICOM?
Yes. DICOM 3.0 is included in the listed system configuration.
What information is required for quotation?
Please provide the required quantity, destination country, intended clinical applications, required probes and whether 3D/4D/5D or specific Doppler functions are required.
