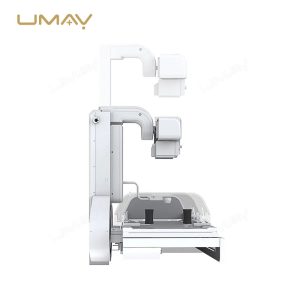

Multifunctional 65kW Digital Dynamic Gastrointestinal X-ray Machine
Quick Info.
- SKU NO.: UMY-XM-032
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The Multifunctional 65kW Digital Dynamic Gastrointestinal X-ray Machine is designed to provide high-quality imaging for comprehensive gastrointestinal diagnostics. Its advanced digital technology delivers dynamic, real-time X-ray images that are crucial for assessing conditions such as ulcers, blockages, and other GI disorders. With a powerful 65kW output, it ensures clear, detailed images with minimal radiation exposure, enhancing patient safety. This versatile system supports both diagnostic imaging and dynamic studies, making it an essential tool for gastrointestinal clinics and medical facilities. Its reliability and efficiency streamline the diagnostic process, supporting healthcare professionals in delivering effective treatment plans.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
System Requirements | |
Electric Source | 380V AC ± 10% |
Power | 65kW |
Detector | |
Type | 17″x17″ |
Resolution | 3.6lp/mm |
Generator | |
kV Range | 40-150kV |
Max mA | Continuous/X-ray: 6mA, Pulsed/X-ray: 40mA, Digital Spot/Digital Dot Film: 800mA |
ms Range | 10-6300ms |
mAs Range | 0.1-800mAs |
X-Ray Tube | |
Model | E7252X |
Focal Spots | 0.6 / 1.2mm |
Anode Angle | 12° |
Working Mode | Photography, X-ray, Point Slice, Sequential Patch, Dual Energy Subtraction, Total Spine Splicing |
AEC | YES |
Collimator | Electric |
Grid (Selective Assembly) | YES |
Mechanical Parameters | |
Size | 2120 × 1350 × 2020mm (SID 1m) |
Column Movement Range | 0-1000mm |
Column Swing Range | -40° ~ 40° |
Bed Rotation | -15° ~ 90° |
Bed Floating | ±120mm |
Bed Height | 800mm |
Bed Size | 2100 × 800mm |
Weight | 980kg |
Console | Included |
