Mobile-Friendly Video Endoscope System with Fiber Bronchoscope for Human Use
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-EN-040
- Warranty: 1 Year
- Origin: China
This mobile-friendly video endoscope system with a fiber bronchoscope is designed for human use, providing clear and detailed imaging during respiratory examinations. Ideal for diagnosing conditions like airway blockages, tumors, or infections, it delivers high-definition visuals for precise assessment. Its compact, lightweight design makes it easy to transport and use in various medical environments, including hospitals and clinics. The fiber optic technology ensures high-quality, real-time imaging, allowing healthcare professionals to make accurate decisions. Enhance your diagnostic capabilities with this reliable and mobile-friendly bronchoscope video endoscope system.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Product Name | Fiber Bronchoscope |
| Optical Parameters | |
| Field of View | 120° |
| Depth of View | 2–50mm |
| Tip Deflection | Up/Down: 180° / 130° |
| Physical Specifications | |
| Distal Rigid Diameter | 6.0mm |
| Insertion Tube Diameter | 6.0mm |
| Diameter | 5.0mm |
| Working Length | 550mm |
| Working Channel | |
| Channel Diameter | 2.8mm |
| Working Channel Size | 2.0mm |
FIBER ENDOSCOPE
- Adopting high quality image bundle from Japan, light guide buddle from Germany, which can provide a bright and clear image. it can comply with photography, teaching and dynamic records while connection to light source and camera system.
- With 30X magnifications, it can observe clear and vivid images within 2-50mm depth of view.

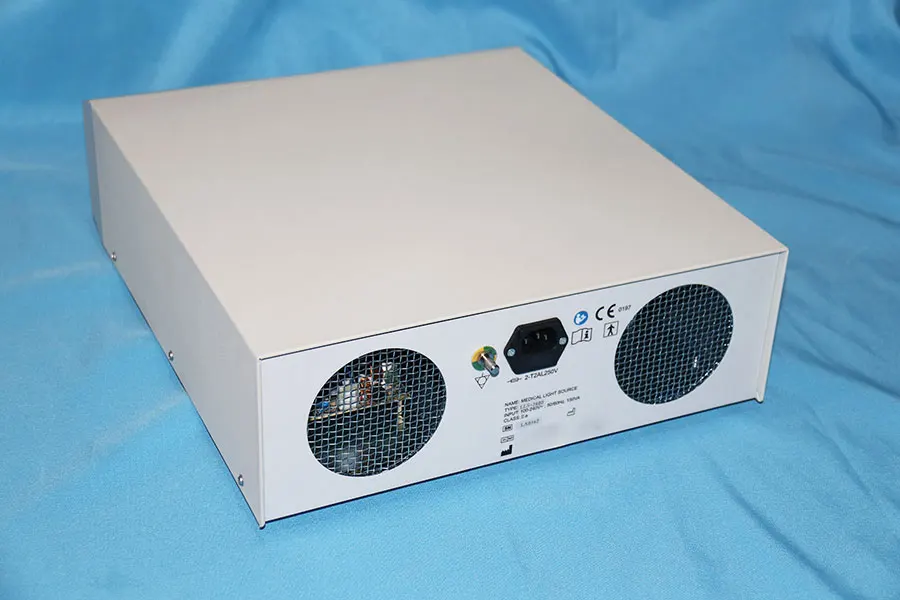

- Portable LED light source can offer bright and clear pictures without normal light source.
- Dismountable suction valve
