Mini Veterinary Endoscope Camera System for Endoscopy in Small Size Animals
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-VEEN-016
- Warranty: 1 Year
- Origin: China

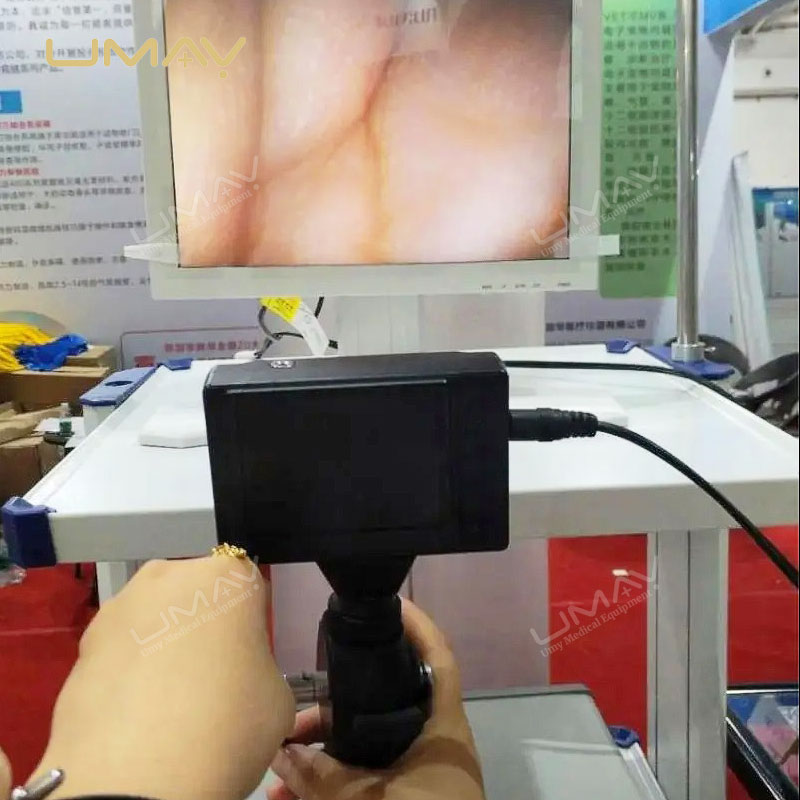

The mini veterinary endoscope camera system provides compact and precise imaging for small animals, including cats, small dogs, rabbits, and exotic species. Equipped with a 90° field of view and adjustable working lengths up to 1000 mm, it enables clear visualization of the gastrointestinal tract, airways, and nasal cavities. Tube diameters of 3.8 mm to 6.0 mm offer flexible use across various clinical scenarios. With bending angles up to 130° and a 3.5 inch LCD display, veterinarians can accurately identify foreign bodies, inflammatory disease, tumors, or strictures. The 2.0 mm working channel facilitates biopsy and therapeutic interventions. For additional veterinary imaging, clinics can also explore the Portable Full Digital Ultrasound Scanner for Veterinary Use with 8-Inch LCD.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Optical Characteristics | |
| View of Field | 90° |
| Depth of View Channel | 3–50mm |
| Insertion Tube Specifications | |
| Diameter of Insert Tube | Φ5.0/3.8mm, Φ5.0/6.0mm |
| Diameter of Distal-End | Φ5.0/3.8mm, Φ5.0/6.0mm |
| Working Channel Diameter | 2.0mm / NA |
| Working Length | 410mm / 700–1000mm |
| Articulation | |
| Bending Angle | Bending angle |
| Display | |
| LCD Monitor | 3.5″ |
Feature list for UMY-VEEN-016
* 90° field of view for comprehensive imaging
* Flexible design with multiple diameter options (Φ5.0/3.8mm, Φ5.0/6.0mm)
* High-resolution CMOS camera and 3.5″ LCD monitor
* Bending angle for better maneuverability
* Ergonomic and user-friendly design
Application
This gastroscope is perfect for small animal clinics, veterinary hospitals, and specialized diagnostic centers, providing reliable and clear imaging for gastrointestinal health assessments in small animals.
