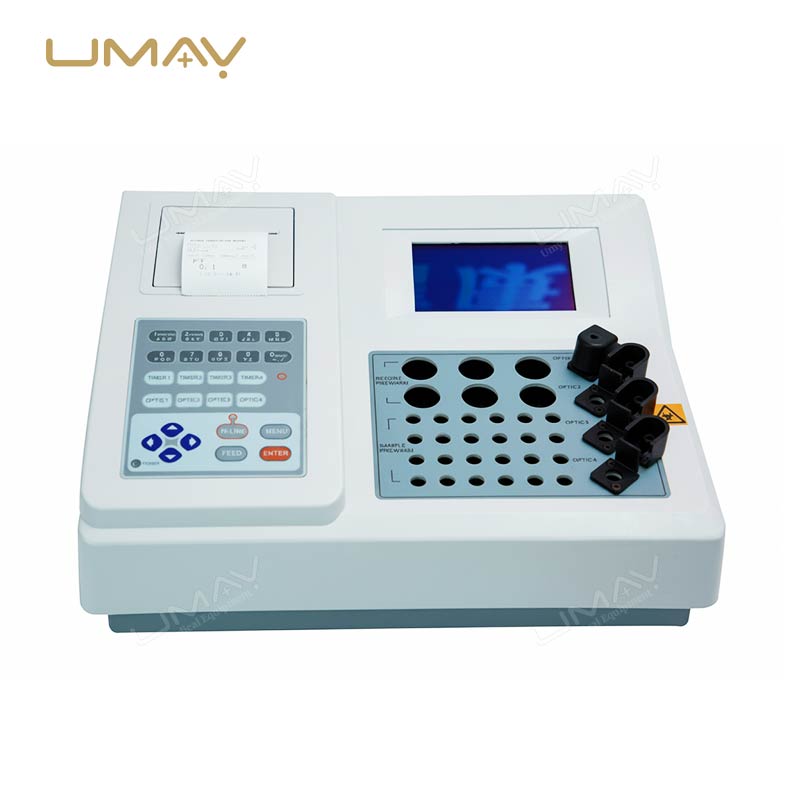

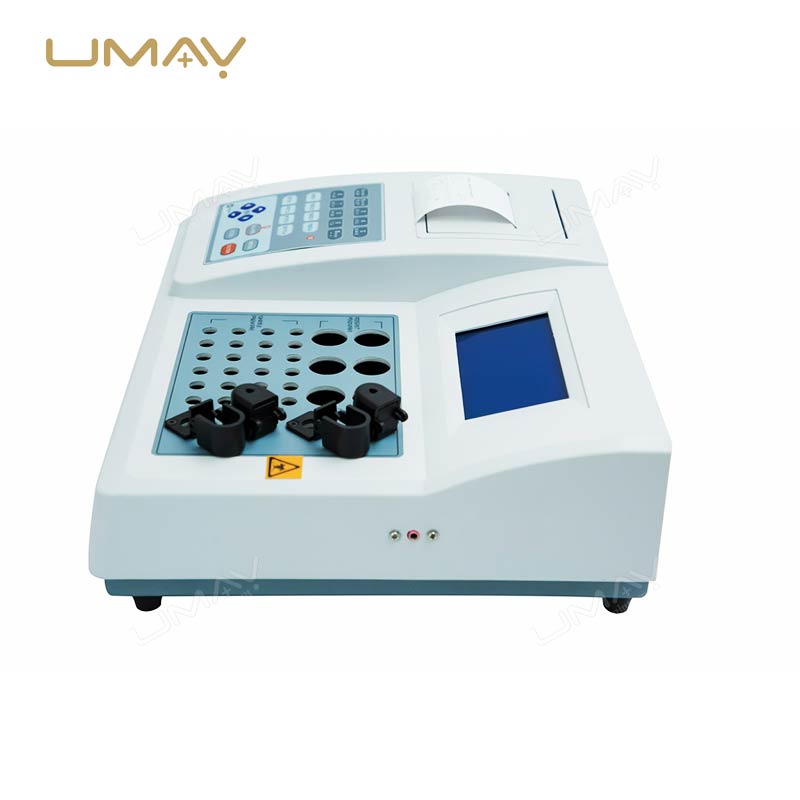

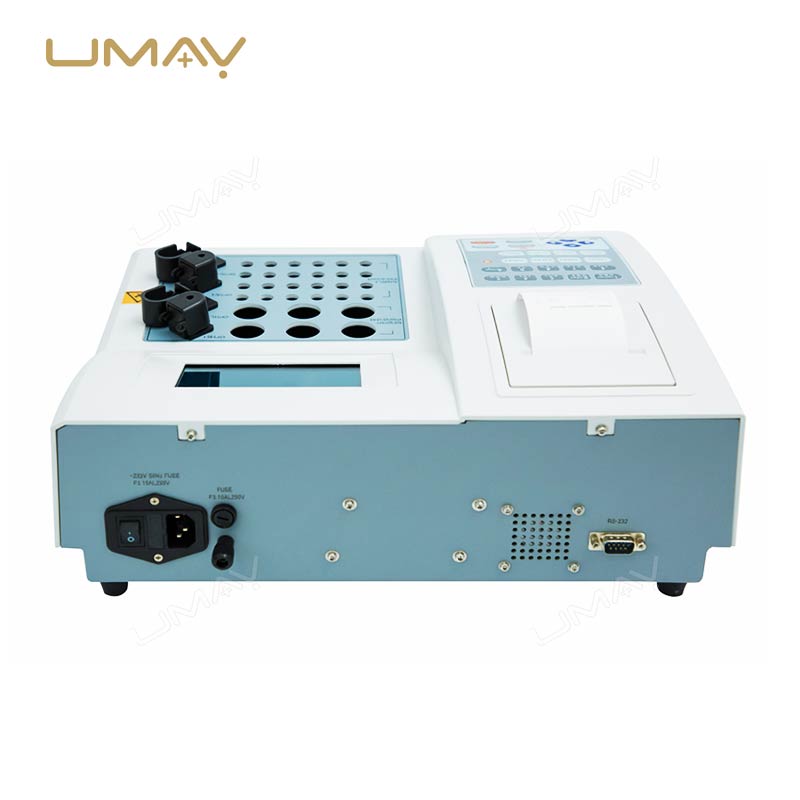

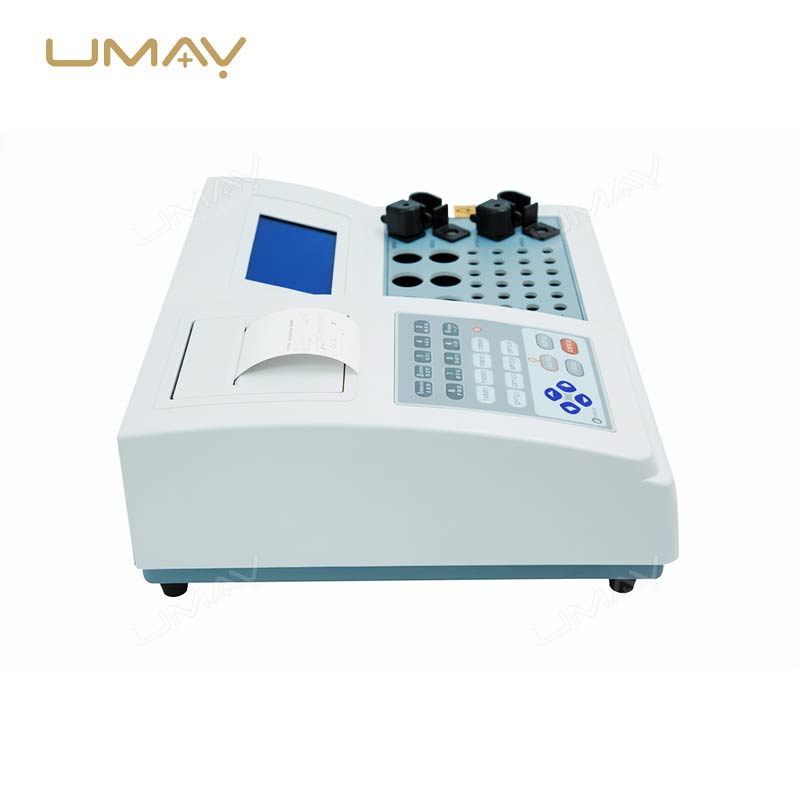

Low-Maintenance Coagulation Analyzer with Four Channel Operation and Optical Measurement
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-CO-003
- Warranty: 1 Year
- Origin: China
This clinical coagulation analyzer delivers stable and efficient hemostasis testing with four channel operation for parallel parameter analysis. It features optical measurement at a fixed wavelength to provide reliable PT INR and fibrinogen results with low coincidence variation. Multiple incubation block positions support smooth sample and reagent handling while precise temperature control maintains reaction stability. Low sample and reagent consumption help reduce operating costs without compromising result quality. Compact structure and PC connectivity make it suitable for laboratories seeking dependable coagulation testing with expanded throughput.
This analyzer is ideal for facilities requiring multi parameter coagulation analysis with consistent performance.
For additional laboratory diagnostic equipment visit here.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Testing & Analysis Capacity | |
| Test Channels | 4 channels, supports simultaneous analysis of 4 different parameters |
| Sample Incubation Positions | 24 positions |
| Reagent Incubation Positions | 6 positions |
| Optical & Measurement System | |
| Test Wavelength | 470 nm |
| Coincidence Indicator | ≤3% |
| Result Notation | S, %, PTR, INR, g/L |
| Temperature Control Precision | 37 ±0.3 °C |
| Consumables Usage | |
| Sample Consumption | 20 μL–40 μL |
| Reagent Consumption | 20 μL–40 μL |
| Data & Software | |
| Software Timers | 4 |
| Memory Capacity | Up to 10,000 test results |
| Operation Language | English |
| Display & Interface | 240×128 LCD |
| Power Supply | 220 VAC ±15%, 50–60 Hz |
| Working Environment | Temperature 15–30 °C, humidity ≤90% |
| Physical Specifications | |
| Dimensions | 395 mm (L) × 320 mm (W) × 135 mm (H) |
| Weight | 7 kg |
| Usual Test List | PT, APTT, TT, FIB, RT, VT, VIII, IX, XI, XII, II, V, VII, X, PS, PC, Xa, etc. |
Feature list for UMY-CO-003
* Four channel coagulation testing for increased workflow efficiency
* Optical measurement with stable coincidence control
* Low sample and reagent consumption per test
* Precision temperature control at thirty seven degrees
* Supports PT INR APTT TT fibrinogen reporting
* Multiple incubation block positions for organized processing
* LCD screen for clear operation display

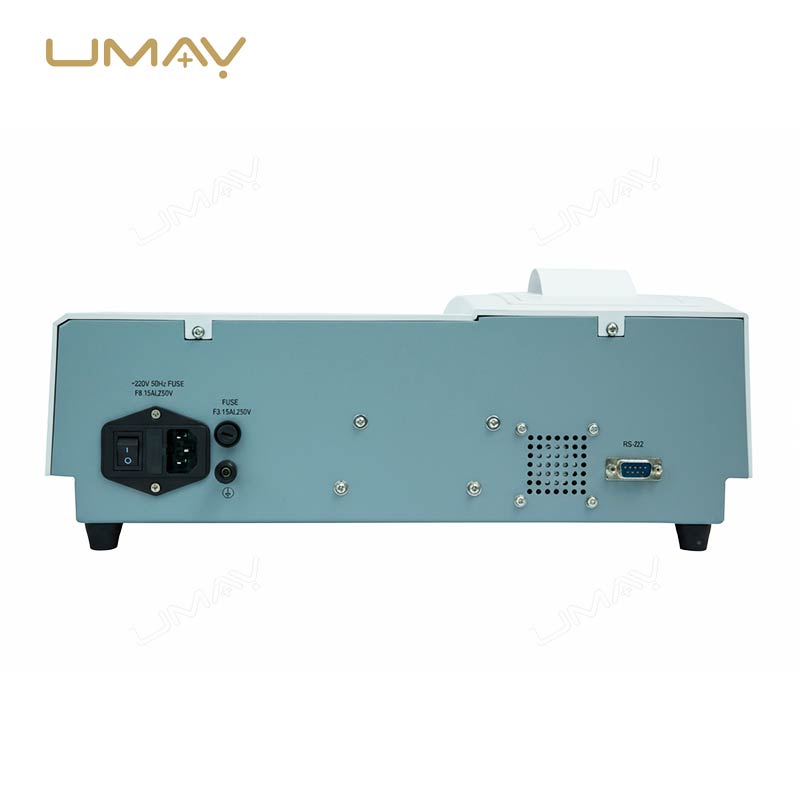

* RS232 interface for laboratory system integration
* Compact design suitable for routine clinical use
Application
Ideal for hospitals clinics and diagnostic laboratories performing routine coagulation analysis and patient monitoring. Supports high volume daily testing with parallel parameter processing.
