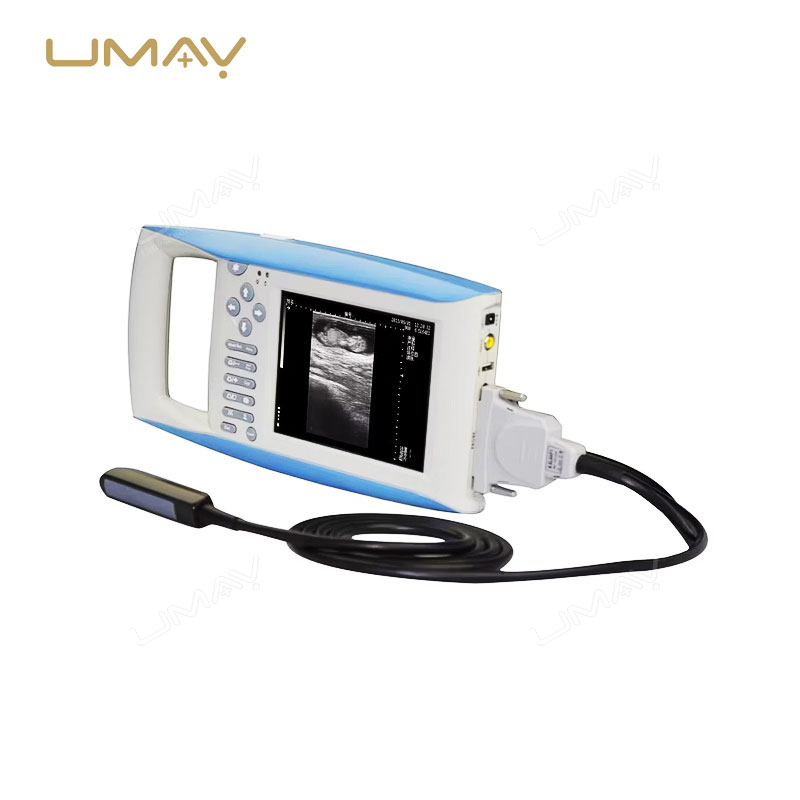

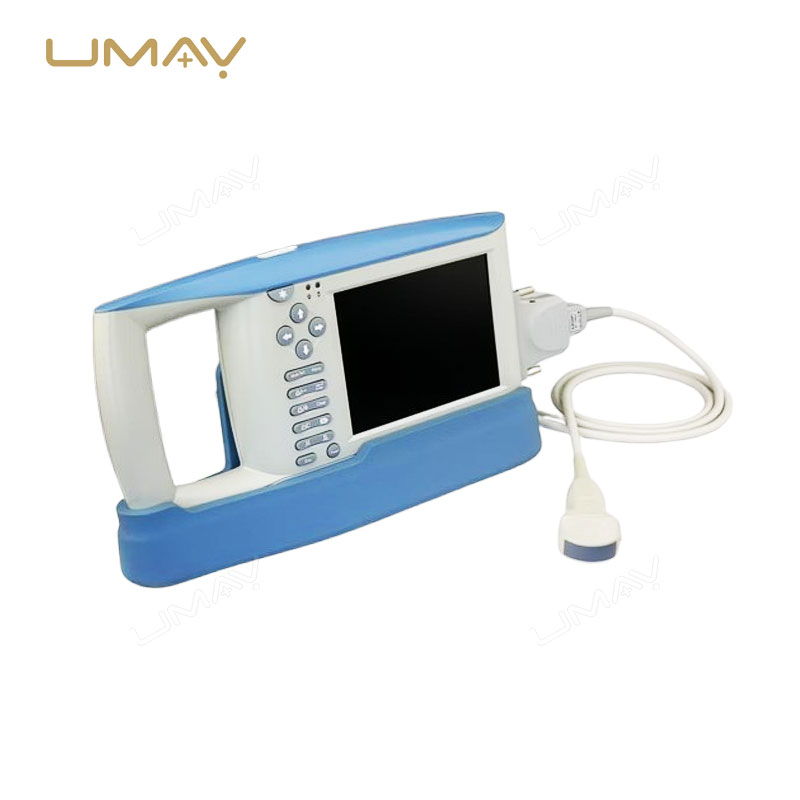

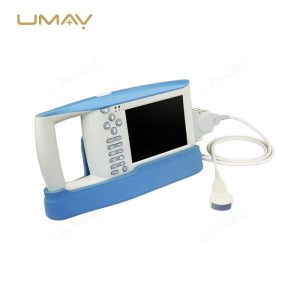

Full Digital B-Mode Veterinary Laptop Ultrasound Instrument with Advanced Image Sharpness
SKU: UMY-VEUS-012
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-VEUS-012
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year

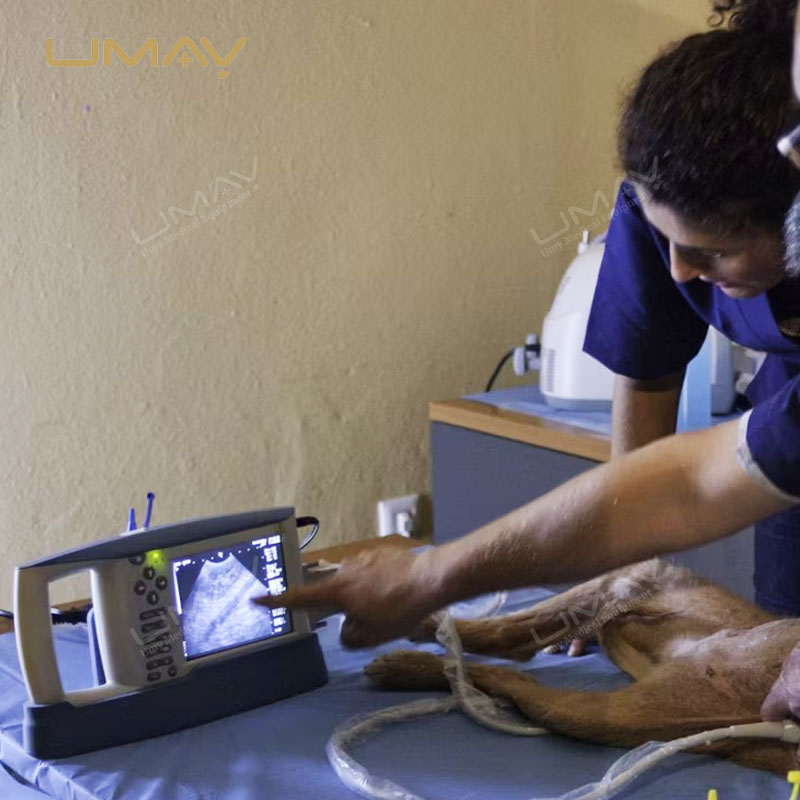

This full digital B-mode veterinary laptop ultrasound instrument offers advanced image sharpness for accurate animal diagnostics. With its high-resolution imaging capabilities, it helps veterinary professionals assess a variety of conditions, including abdominal, musculoskeletal, and cardiac issues in animals. Its portable design allows for convenient use in clinics or on-site visits, making it an essential tool for mobile veterinary services. The advanced B-mode imaging ensures that every scan provides detailed and reliable results, making it ideal for both routine checkups and critical diagnostics. Efficient and easy to use, this ultrasound system is a valuable addition to any veterinary practice.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| System Configuration | |
| Control System | ARM7 Embedded Control System with proprietary miniaturization technology |
| Operating Language | Chinese/English switchable |
| Probe Socket | Single probe socket, auto-identify, supports optional probes |
| Body Mark Presets | 7 kinds (General use, Bovine, Canine, Equine, Feline, Cardiology, Swine), 27 pcs total with probe position |
| Display Mode | B, 2B, 4B, B+M, M (total 5 modes) |
| Magnification | 8 kinds, max display depth 240mm |
| Imaging and Performance | |
| Gain Range | 0~127 dB |
| Dynamic Range | 27~90 dB |
| Gray Scale | 256 |
| TGC Control | Intelligent TGC with near-field and far-field adjustment |
| Focus | Intelligent and adjustable |
| Frame Frequency | 30 frames/second |
| Pseudo-Color | 8 kinds (includes B/W) |
| Cine Loop | 256 frames |
| Puncture Guiding Function | 2 guiding lines; angle and position adjustable |
| Connectivity | |
| USB Support | Supports large-capacity USB disk (document management, software upgrades, one-key storage) |
| Printer Support | Color laser printer support for direct image/report printing |
| TV Output | Dual-mode TV output (PAL/NTSC), connectable to thermal printer and ultrasonic workstation |
| Physical Specifications | |
| Net Weight | 1.5 kg |
| Main Unit Size | 326 x 162 x 45 mm (L × W × H) |
