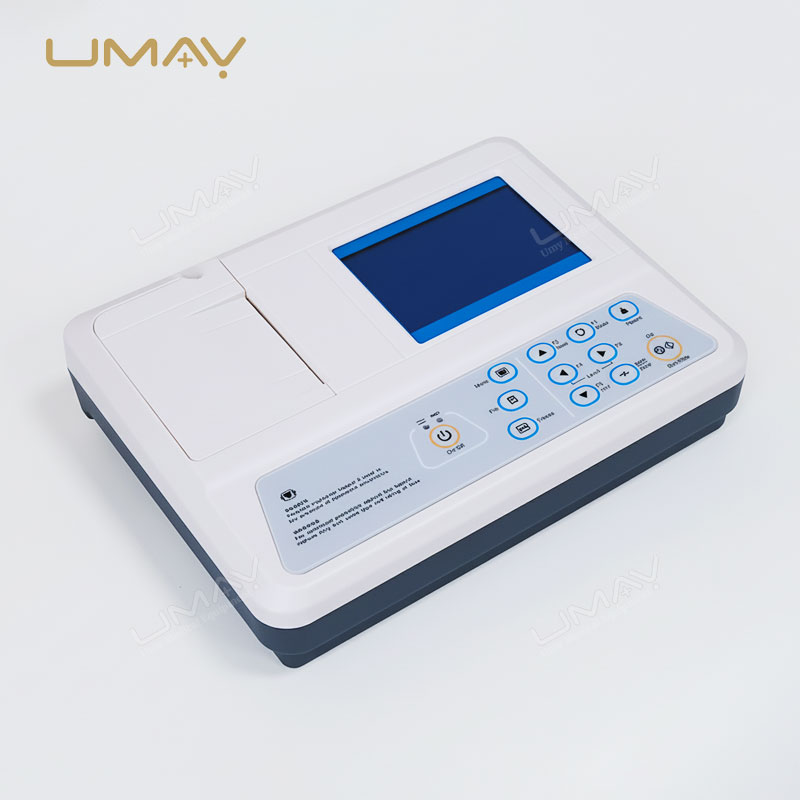

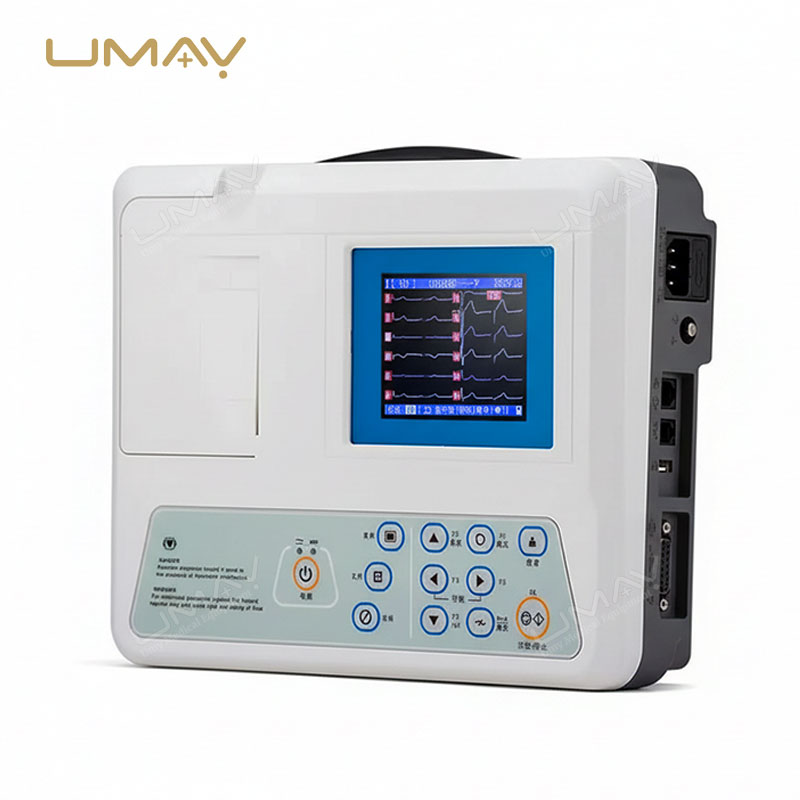

Electrocardiograph Machine 3-channel with Real-Time ECG Display and Easy Operation
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-EC-003
- Warranty: 1 Year
- Origin: China
This compact portable ECG machine provides real-time, high-quality ECG recordings with advanced features like pulse pace identification and automatic baseline adjustment. With a 5-inch color LCD and support for up to 250 patient cases, it offers intuitive operation for heart diagnostic professionals. It features multiple testing modes (Manual, Automatic, R-R, Store) and includes a Freeze function for saving important data at any stage. The rechargeable Li-ion battery lasts for up to 9 hours, providing flexibility for both in-office and on-the-go ECG testing.
For additional diagnostic equipment, visit our full range of ECG machines here.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Application Scene | ICU, Emergency, Hospitals, Clinics, Primary Care, Pediatrics |
| Technical Specifications | |
| Lead | Standard 12 leads |
| Lead acquisition | 12 leads synchronously acquisition |
| Time constant | ≥ 3.2s |
| Frequency response | 0.05-160Hz (-3dB) |
| Noise level | <15μV-p |
| Inter-channel interference | ≤ 0.5mm |
| Sensitivity | Auto, 2.5, 5, 10, 20, 40mm/mV (±3%) |
| Recording mode | 1ch+, 3ch, 3ch+ |
| Paper speed | 6.25, 12.5, 25.5, 50mm/s (±3%) |
| Recording Paper | 80mm x 20m roll paper |
| Work environment | Temperature: 5°C-40°C; Humidity: 25-95% |
| CMRR | ≥120dB (with AC Filter) |
| Input circuit | Floating; Protection circuit against defibrillator effect |
| Input impedance | ≥50MΩ |
| Input circuit current | ≤0.05μA |
| Patient current leakage | <10μA |
| Calibrating voltage | 1mV ± 2% |
| Voltage tolerance | ≥±500mV |
| Physical Specifications | |
| Screen | 240*128 LCD |
| Dimension | 300mm x 230mm x 72mm |
| Weight | 2.8kg |
| Package List | |
| Main unit | 1 set |
| Patient cable | 1 pc |
| Limb electrode | 1 set (4 pcs) |
| Chest electrode | 1 set (6 pcs) |
| Grounding cable | 1 pc |
| Fuse | 2 pcs |
| Power cable | 1 pc |
| Paper axis | 1 pc |
| Recording paper | 1 roll (80mm x 20m) |
| Operation manual | 1 copy |
| Power | |
| Power supply | AC 110-230V ±10%, 50/60Hz |
| Power Rating | 500W |
| Battery | Built-in rechargeable Li-ion battery, 14.4V, 2200mAh |
Feature list for UMY-EC-003
* Portable design with easy operation for daily ECG testing
* Accurate pulse pace identification for reliable heart monitoring
* Automatic baseline adjustment for improved recording precision
* 80mm, 3-channel format for comprehensive ECG analysis
* 5-inch LCD for clear real-time display of ECG data
* Up to 250 patient case memory with optional SD card storage
* Freeze function for convenient data saving
* Li-ion battery providing up to 9 hours of continuous use
* USB and UART ports for data transfer, printing, and software integration
Application
Perfect for diagnostic clinics, outpatient centers, and mobile healthcare units. This ECG machine is ideal for routine heart monitoring, emergency diagnostics, and patient follow-up care.
