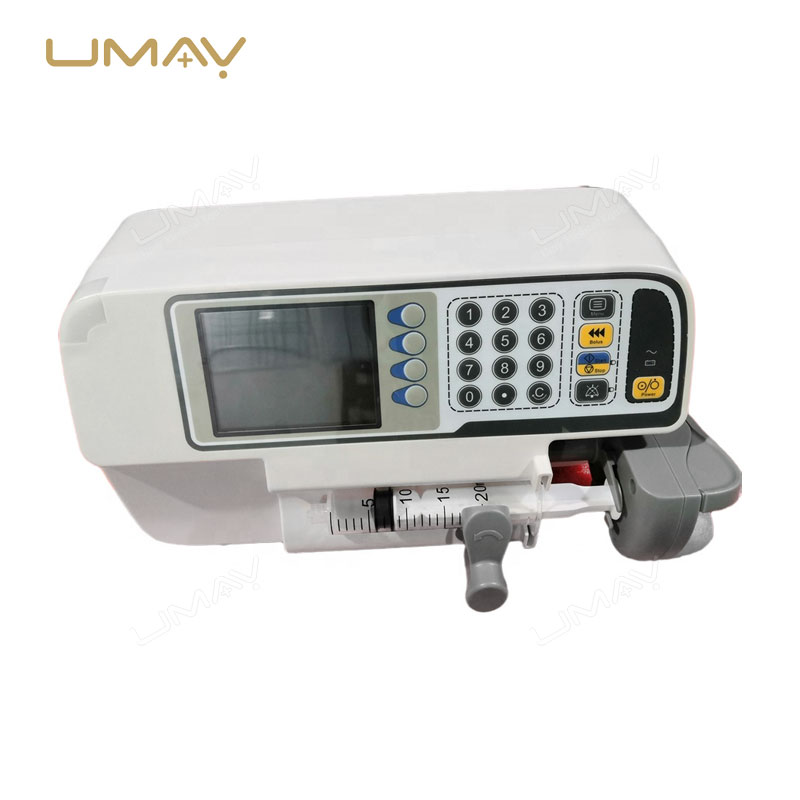

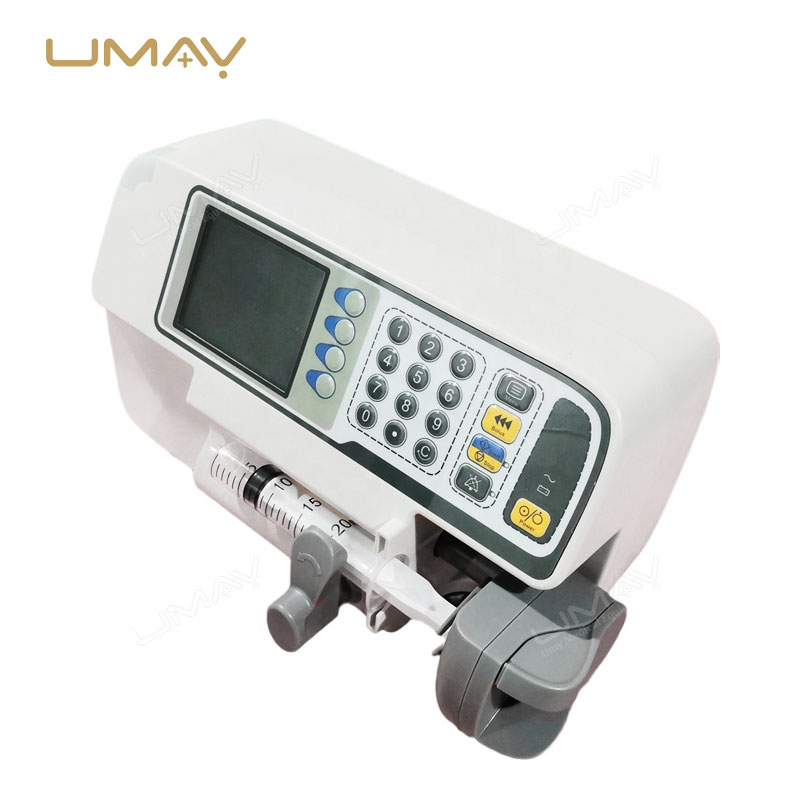

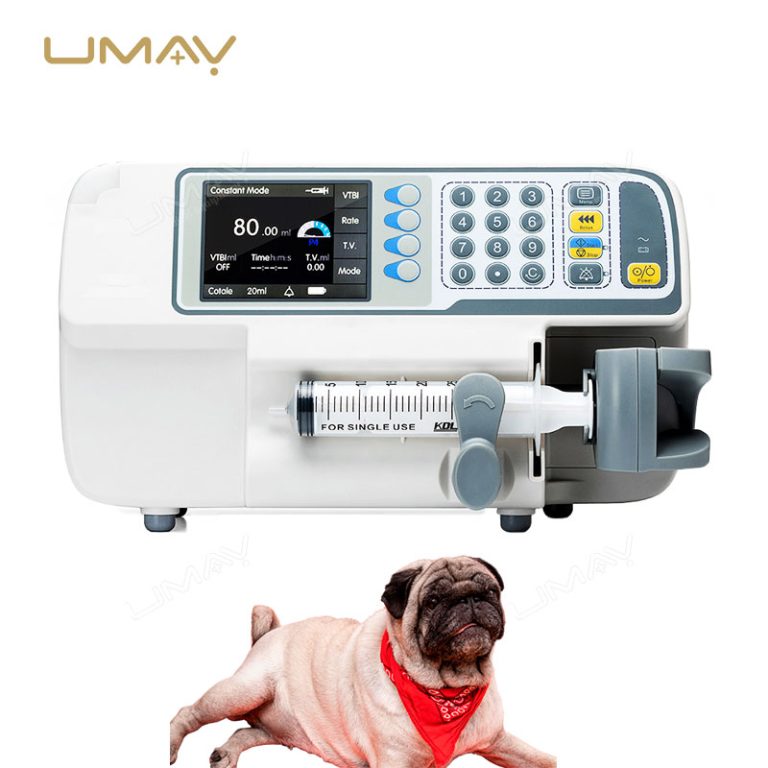

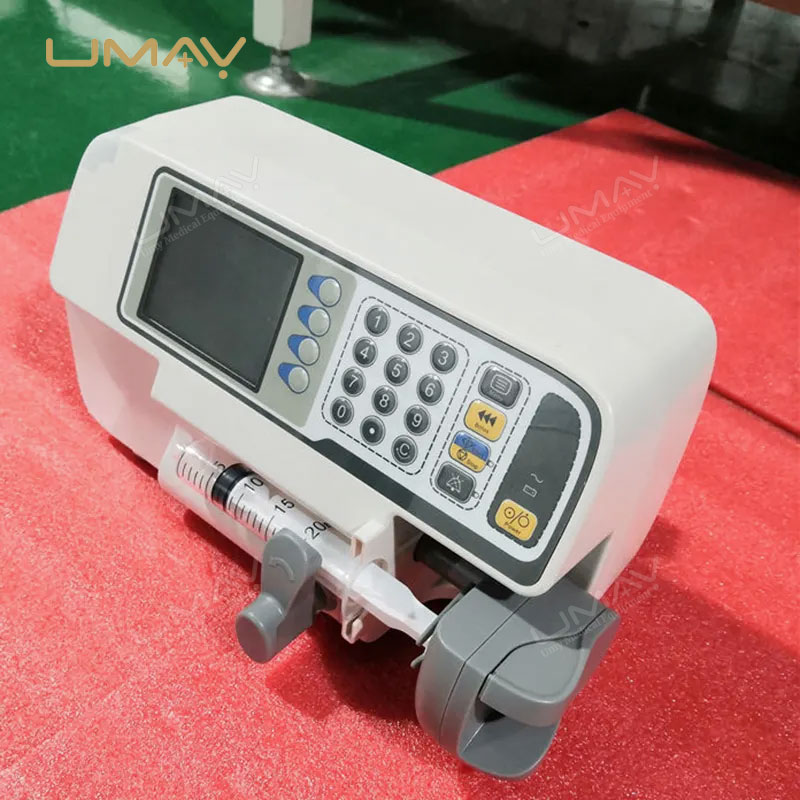

Digital Veterinary Single Syringe Pump Auto-Bolus System with Calibration
SKU: UMY-VESP-001
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
Channel mode: single channel
OEM: Accept
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
Channel mode: single channel
OEM: Accept
- SKU NO.: UMY-VESP-001
- Warranty: 1 Year
- Origin: China
Designed specifically for veterinary applications, this digital infusion pump features precise automatic bolus injection capabilities and advanced calibration technology. The open system design accommodates various syringe brands with software compensation error within ±2% after calibration. With its user-friendly numeric keypad and dual CPU processing, this medical-grade device ensures accurate medication delivery across veterinary specialties including emergency care, surgery, and intensive monitoring situations.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Injection Mode | Constant rate, time/volume mode, drug weight mode, micro-mode, programmable mode, drug library mode |
| Syringe Size | 5ml, 10ml, 20ml, 30ml, 50ml, auto-recognition |
| Flow Rate | 5ml: 0.1ml/h~10ml/h, 10ml: 1ml/h~30ml/h, 20ml: 10ml/h~100ml/h, 30ml: 10ml/h~300ml/h, 50ml: 10ml/h~600ml/h |
| Increment | 0.1ml |
| Preset Time | 1s~99h 59m 59s |
| Parameter Change During Injection | Support change of VTI, flow rate during injection |
| Accuracy | ±2% (±1% mechanical accuracy included) |
| Preset Volume (VTI) | 0.001~999.99ml |
| Accumulated Volume | 0.001~999.99ml |
| Purge Rate | 5ml: 300ml~600ml/h, 10ml: 1500ml~3000ml/h, 20ml: 2000ml~6000ml/h, 30ml: 3000ml~6000ml/h, 50ml: 6000ml~12000ml/h |
| Bolus Rate | 5ml: 0.1ml/h~10ml/h, 10ml: 10ml/h~300ml/h, 20ml: 10ml/h~100ml/h, 30ml: 10ml/h~600ml/h, 50ml: 10ml/h~1200ml/h |
| KVO (Keep Vein Open) | 0.10~0.50ml/h adjustable |
| Occlusion Pressure | 8 level adjustable, 20kPa~150kPa, dynamically pressure value display |
| Syringe Management | Preset to 3 syringe brands, can add and change brand, accept different syringe brand after calibration |
| Display | 3.5” TFT color LCD, 10-level brightness adjustable |
| Power Supply | AC Power: 100-240V, 50/60Hz, DC Power: Rechargeable lithium battery, DC11.1V, 3000mAh, 3.9Wh, 8-9h working time |
| Battery | 3,000mAh backup time more than 9 hours |
| Alarm | Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe error, low battery, battery alarm, event log, abnormal injection, communication error, finished KVO |
| Event Log | >10,000 events log |
| External Interface | USB, VGA output, RS232 serial port, LAN |
| Operation Environment | Temperature: 5℃~40℃, Humidity: 20%~90%, Atmospheric Pressure: 70~106kPa |
| Dimensions | Size: 275mm x 145mm x 160mm, Weight: 2.1kg |

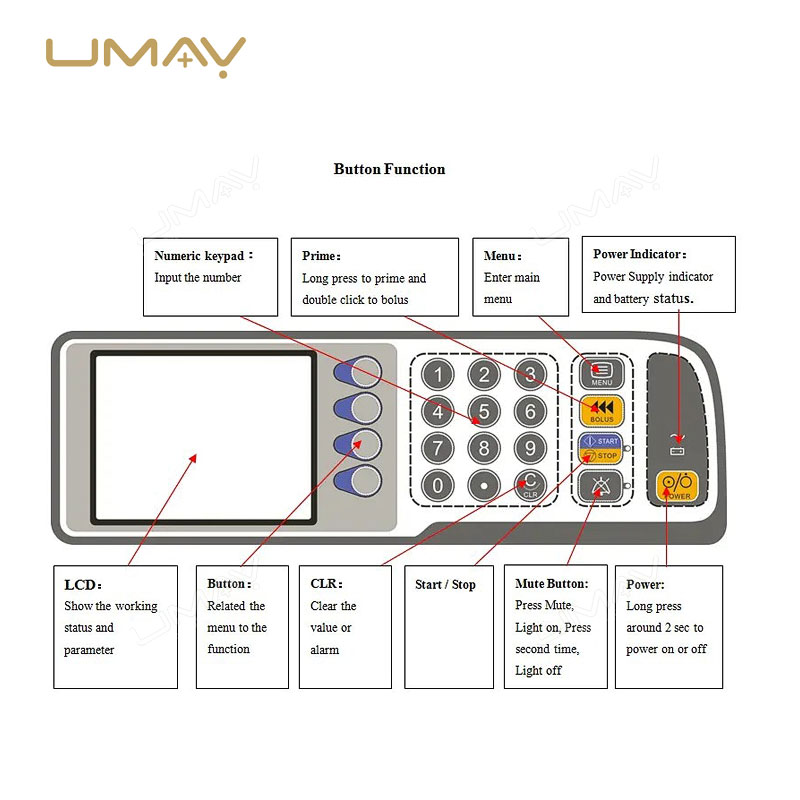

| Other Functions | Double CPU, password function, 90° adjustable 4-Pole, foot function key, keylock function, numeric keypad, sleep function |
| Application | Intravenous injection |
