Digital Radiography (DR) System Floor-Mounted for Advanced Medical Imaging

SKU: UMY-XM-021
Brand: Umy
MOQ: 1
Origin: China

OR

Quick Info.

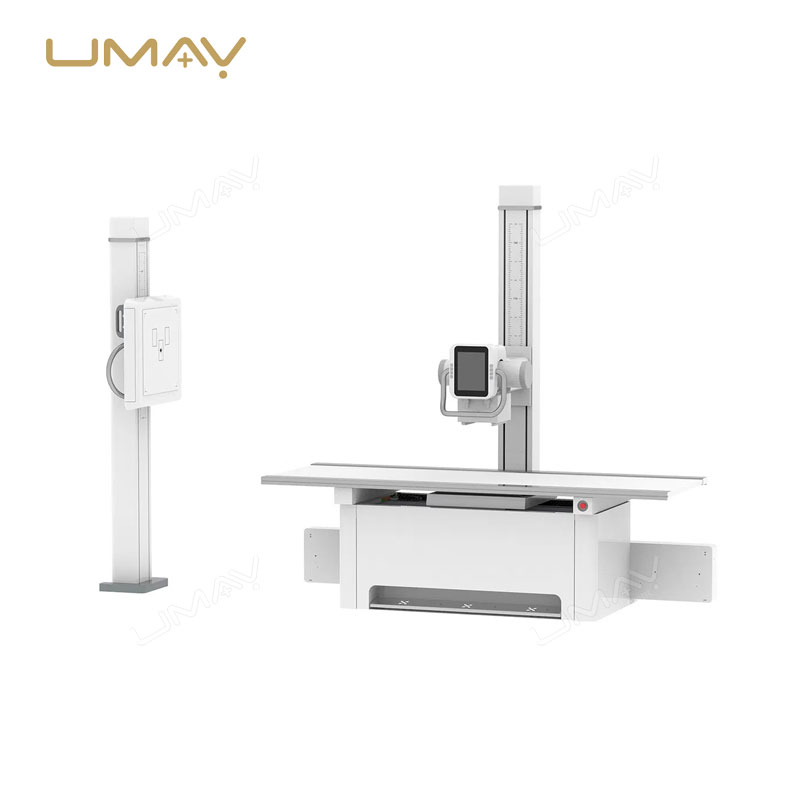

The Floor-Mounted Digital Radiography (DR) System is designed to provide high-quality, advanced medical imaging in a variety of healthcare settings. With its versatile features, this system ensures clear, precise diagnostic images for conditions ranging from fractures to internal organ diseases. The floor-mounted design offers stability and flexibility, making it ideal for hospitals, clinics, and imaging centers. Equipped with the latest DR technology, it enables faster image processing and reduces radiation exposure, enhancing patient safety. This system is essential for efficient, reliable diagnostics, supporting healthcare professionals in delivering accurate and timely care.

The Specific Parameters

ITEMSPARAMETERS
Machine Model
Control TypeManual Control / Electric Control
Power Supply220VAC/110V/380V
X-Ray Tube Assembly
BrandUmy
Anode Target Heat Capacity300kHu
Focus0.6/1.2mm
Flat Panel Detector
Semiconductor MaterialAmorphous silicon
Pixel Size139µm
Detector Size17 × 17 inches, wireless
High Voltage Generator
Input Voltage220VAC
Maximum Output Power50kW
Maximum Output Tube Current630mA
Inversion Frequency500kHz
Maximum Exposure Time10,000ms
Beamer

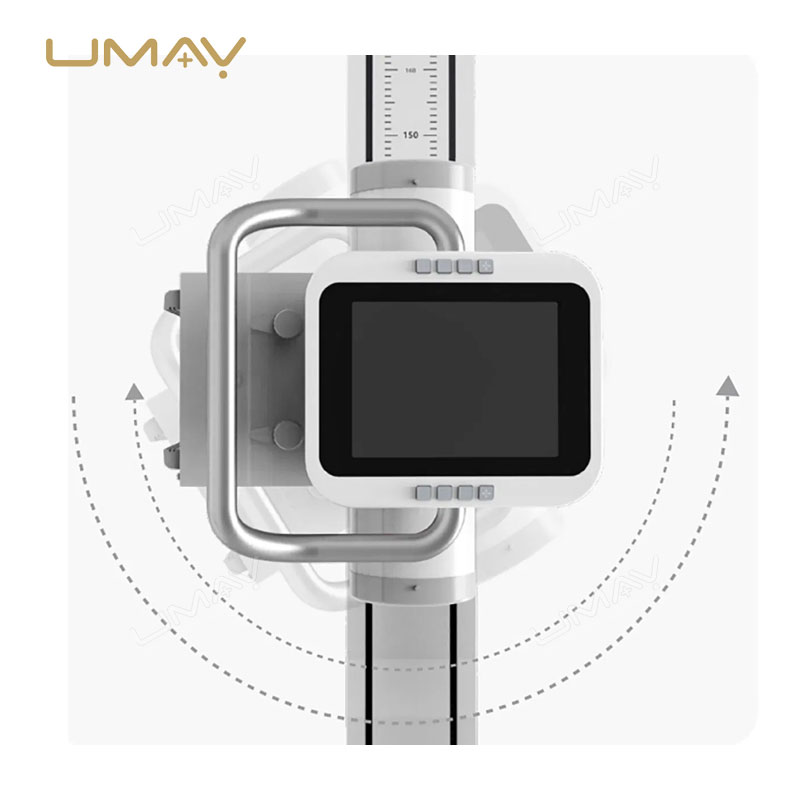

Rotate Around Center45°
Indicator Light180lux
Control MethodManual, camera, feedback
AEC Vision3
Grid Ratio10:1
Workstation
Display Size24 inches
Basic Configuration≥CPU: 3G, ≥Memory: 4G, ≥HDD: 4G
Operating SystemWin 10
Acquisition Software
Basic SkillsIntegrated acquisition software
Frame
ray sourceUp and down / left and right rotation
ColumnMove left and right
Chest RackUp and down
Photography BedFour-way float
