Wireless Probe-Type Color Doppler Ultrasound Scanner for Point-of-Care Imaging
The UMUS051 Color Doppler Wireless Probe Ultrasound Scanner is designed to transform smart personal devices into high-performance diagnostic imaging systems. By connecting seamlessly with smart phones, tablets, and PCs running Apple iOS, Android, or Windows platforms, this cable-free ultrasound scanner provides maximum mobility for bedside examinations, emergency response, operating rooms, and field clinical applications.
Featuring advanced digital imaging technology, the scanner offers clear imaging capabilities across multiple clinical applications. Its waterproof and wireless design ensures convenient operation, easy sterilization, and effortless diagnostic image transfer.
The system includes dedicated clinical tools such as in-plane and out-of-plane puncture guidance, automatic blood vessel measurement, and needle point enhancement to support accurate interventional procedures.
Key Features
Cable-Free Wireless Design
Operates completely free of cables via 802.11g 20MHz/5G 450Mbps high-speed Wi-Fi, providing total operational freedom in sterile environments.
Multi-Platform Compatibility
Connects directly with iOS, Android, and Windows smart devices, allowing users to inspect and diagnose on phones, tablets, or PCs.
Ultra-Portable & Waterproof
Weighs only 250g with a compact 156×60×20mm profile, featuring a waterproof housing for convenient cleaning and sterilization.
Interventional Puncture Assist
Equipped with in-plane and out-of-plane puncture guide lines, automatic vessel measurement, and needle point enhancement functions.

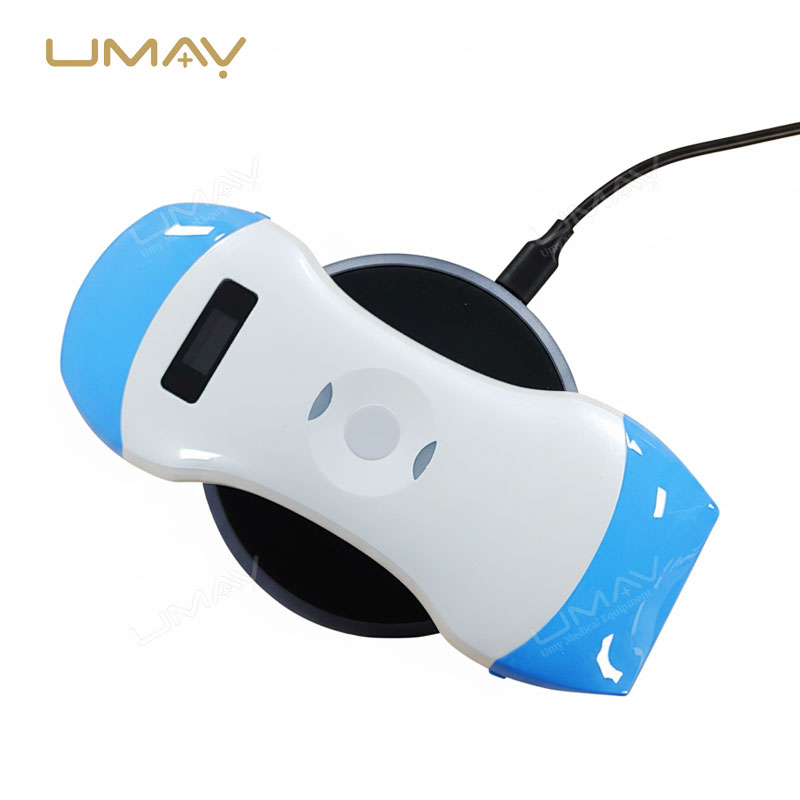

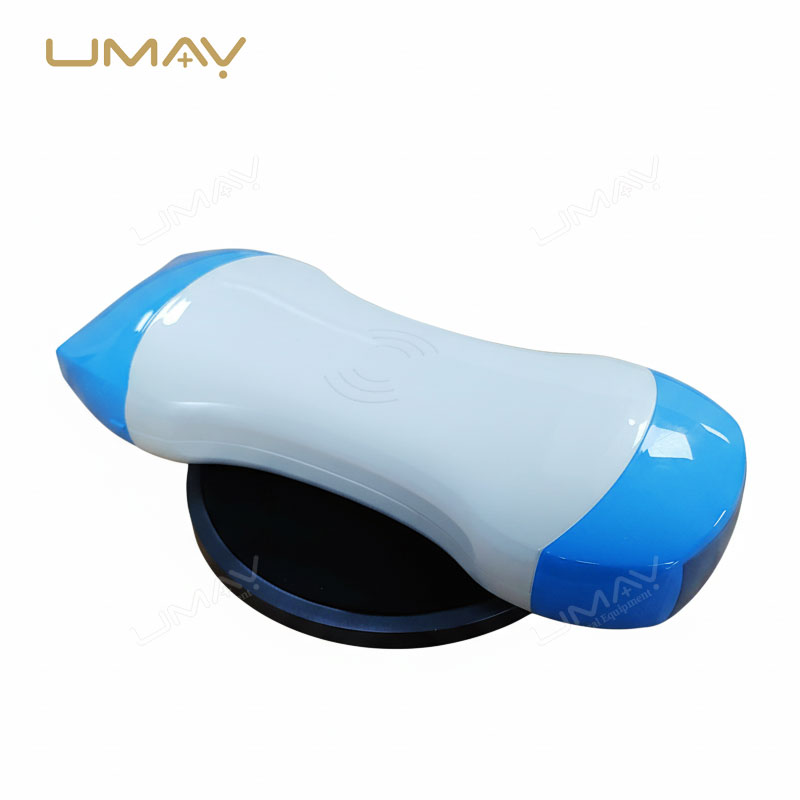

Wireless Charging & Long Battery Life
Built-in rechargeable battery provides up to 3 hours of continuous working time and charges fully in 2 hours via a wireless charger.
Remote Diagnostic Capability
Enables flexible image transfer and remote diagnostic workflows directly through connected smart devices.
Puncture Guidance and Image Optimization
The UMUS051 incorporates specialized image optimization controls and procedure-focused features to support accurate interventional guidance and diagnostic evaluation.
Image Adjustments
Supports Gain, Dynamic Range (DYN), Focus, Depth, Harmonic imaging, and Denoise adjustments to optimize image quality across different tissue types.
Advanced Puncture Guidance
Integrated puncture assistance software supports precise needle visualization and vascular assessments during nerve blocks, vascular access, and biopsy procedures.
Cineplay Functions
Supports both automatic and manual cineplay playback with customizable frame settings up to 1000 frames.
Measurement Packages
Includes built-in measurement tools for Length, Area, Angle, and Obstetrics calculations.
Technical Specifications
| Specification | UMUS051 Details |
|---|---|
| Model | UMUS051 |
| Product Type | Color Doppler Wireless Probe Ultrasound Scanner |

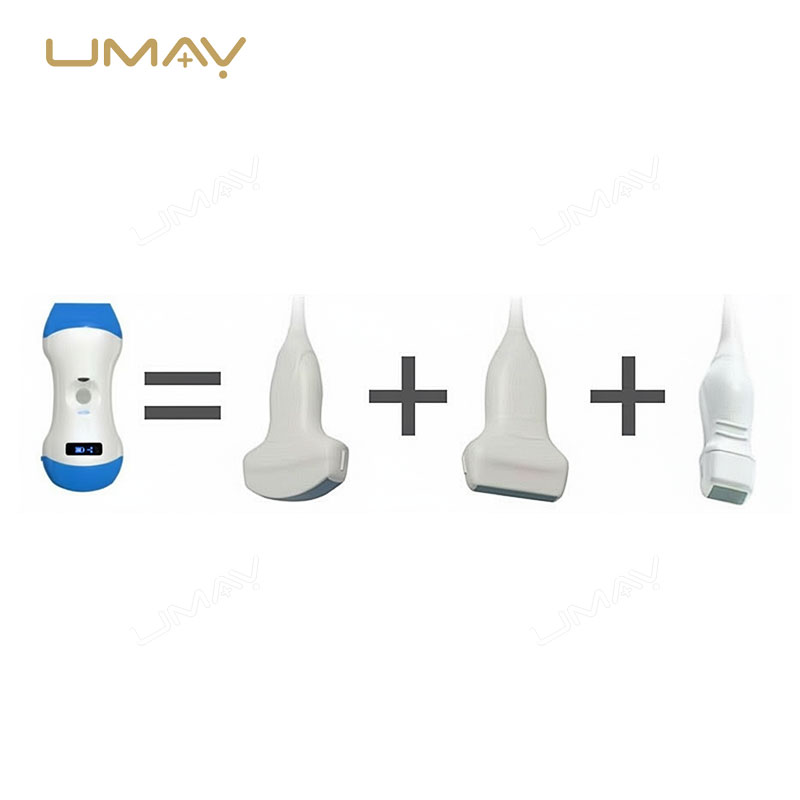

| Frequency Options | Convex / Phased Array: 3.5MHz / 5.0MHz Linear: 7.5MHz / 10.0MHz |
| Display Depth | Convex: 90 / 160 / 220 / 305 mm Linear: 20 / 40 / 60 / 100 mm |
| Scan Angle / Width | Convex: 45° | Phased Array: 80° | Linear: 40 mm |
| Image Frame Rate | 18 frames / second |
| Wi-Fi Type | 802.11g / 20MHz / 5G / 450Mbps |
| Working System | Apple iOS, Android, Windows |
| Battery Working Time | 3 hours continuous work |
| Charging Method | Wireless charger (approx. 2 hours charging time) |
| Dimensions & Weight | 156 × 60 × 20 mm | Weight: 250g |
- Specifications are based on the supplied UMUS051 technical catalogue.
- Standard package includes 1 Wireless Probe device unit, 1 built-in battery with charging cable set, and 1 user manual.
- Optional accessories include needle puncture guides, dedicated tablet brackets, Android/iPad tablets, and mobile trolleys.
Applications
Point-of-Care & Emergency
Provides rapid bedside triage and diagnostic imaging in emergency rooms, ICUs, and ambulances.
Anesthesia & Pain Management
Supports precise needle tracking and localization for regional anesthesia, nerve blocks, and vascular access.
Abdominal & Superficial Screening
Enables clear imaging of abdominal organs, small parts, superficial structures, and vascular pathways.
Field Medicine & Mobile Clinics
Compact size and long battery runtime make it ideal for medical outreach, field rescue, and home health visits.
System Configuration
The UMUS051 is supplied as a self-contained wireless probe system with optional accessories available to build complete mobile diagnostic stations.
Please confirm your required array configuration (Convex, Linear, or Phased Array) and optional accessories—such as puncture bracket kits, tablet displays, mounting arms, or mobile trolleys—prior to ordering.
Before Ordering
- Required quantity and destination country.
- Intended clinical application and required probe array types (Convex, Linear, Phased Array).
- Preferred operating system (iOS, Android, or Windows).
- Need for optional accessories: needle puncture guide, tablet bracket, or mobile trolley.
- Destination market regulatory and tender documentation requirements.
Request a UMUS051 Wireless Ultrasound Probe Quote
Contact UMY Medical to discuss the UMUS051 probe configuration, optional brackets and trolleys, and export quotation for your facility.
Frequently Asked Questions
Which operating systems are compatible with the UMUS051?
The UMUS051 connects wirelessly via Wi-Fi to Apple iOS, Android, and Windows operating systems.
How long does the battery last and how is it charged?
The built-in battery provides up to 3 hours of continuous operation and recharges wirelessly in approximately 2 hours.
Does the UMUS051 support interventional puncture guidance?
Yes, it features both in-plane and out-of-plane puncture guide lines, automatic vessel measurement, and needle point enhancement functions.
What optional accessories are available?
Optional accessories include dedicated needle puncture guides, tablet brackets, Android tablets / iPads, and mobile trolleys.
