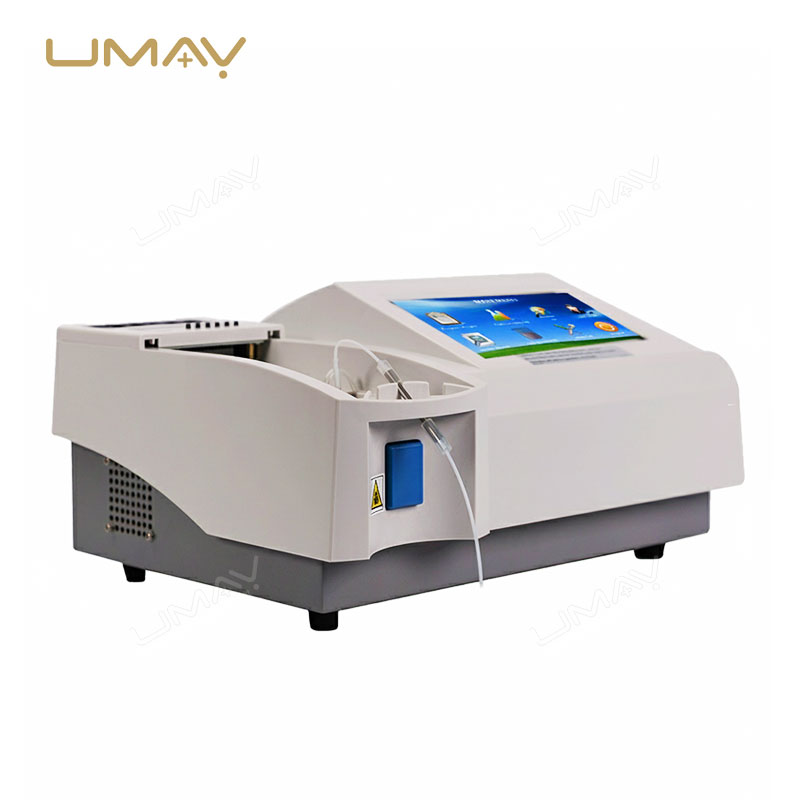

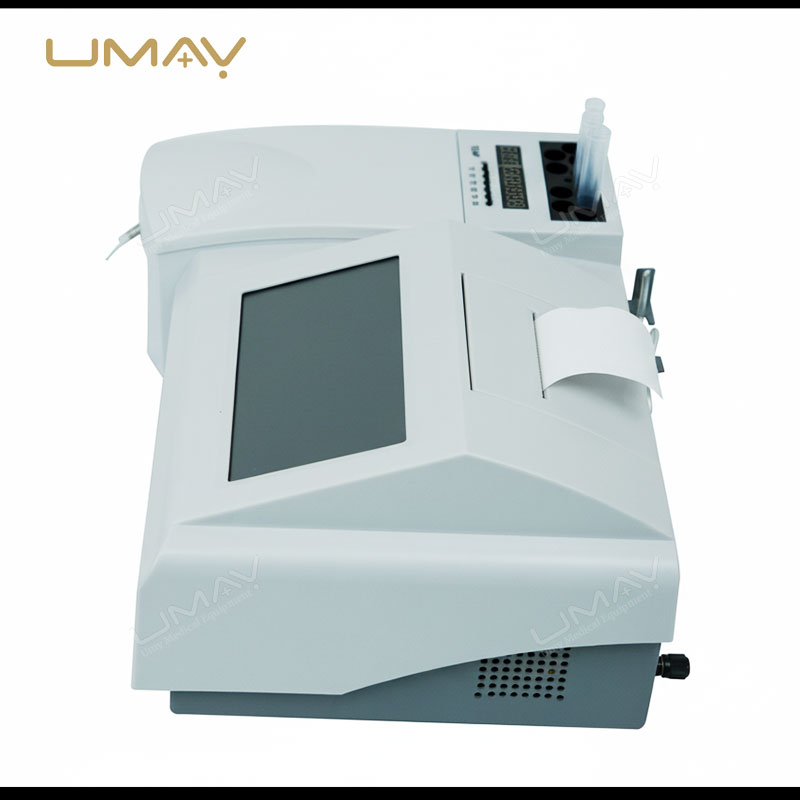

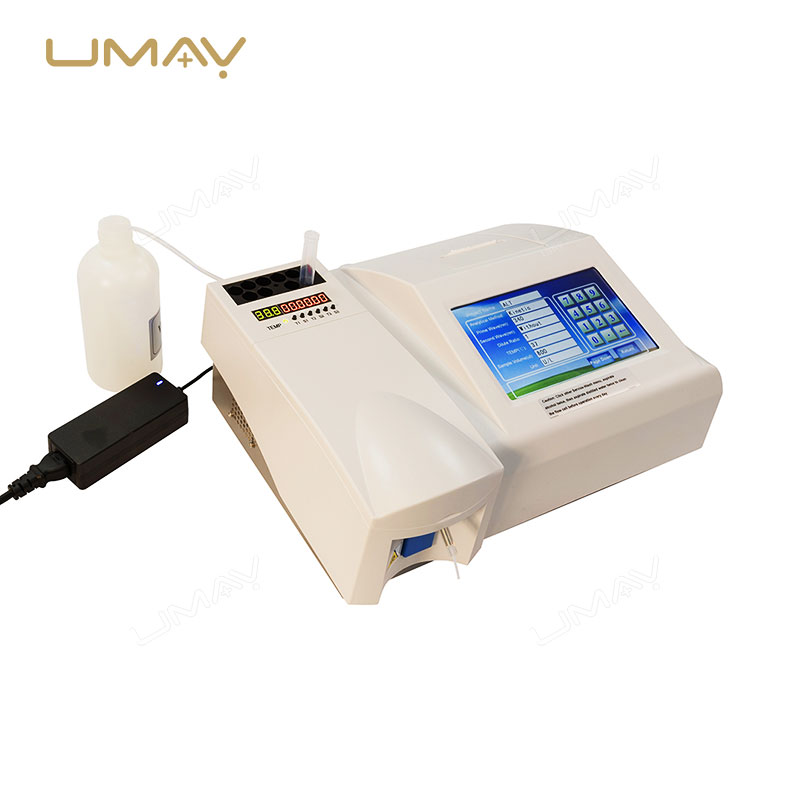

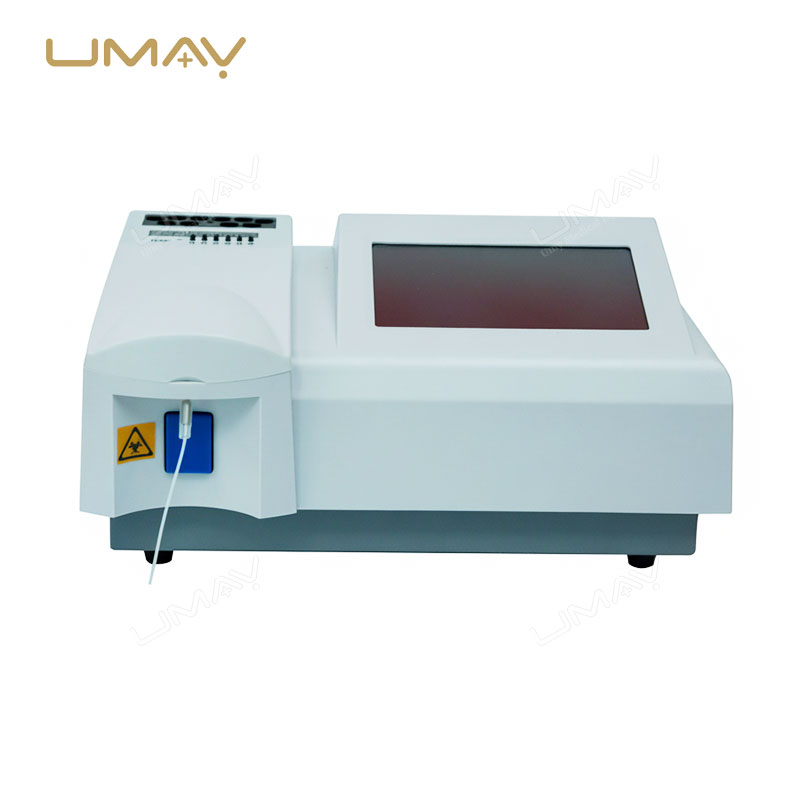

Clinical Chemistry Analyzer with Multi Wavelength Detection and Touch Screen Control
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-CA-002
- Warranty: 1 Year
- Origin: China
This clinical chemistry analyzer provides accurate absorbance based testing with flexible configuration for routine laboratory use. It supports kinetic end point two point and absorbance measurement methods across seven optical wavelengths. The system integrates a seven inch color LCD touch screen for intuitive operation and clear curve visualization. With precision incubator temperature control and low carry over performance it ensures consistent result quality. Internal thermal printing and RS232 connectivity support efficient data management in busy laboratories. Visit more additional laboratory diagnostic equipments.
This analyzer is well suited for laboratories seeking dependable chemistry testing with compact design and simple maintenance.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Test Mode | Kinetic, End point, Two point, Absorbance |
| Wavelength | 7 standard filters: 340, 405, 492, 510, 546, 578, 630 nm; 1 free position |
| Wavelength Precision | ±2 nm, width ≤10 nm |
| Absorbance Range | 0–4.500 Abs |
| Absorbance Precision | Outside 0.0001 Abs; inside 0.00001 Abs |
| Incubators | 10 incubators, 37.0±0.3℃ |
| Timers | 3 timers, precision ±0.1 s |
| Carry-over | <1% |
| Repeatability CV | <1% |
| Flowcell Incubator | 37℃, 30℃, 25℃ and others; precision ±0.1℃ |
| Sample Volume | 0–3000 μL (500 μL recommended) |
| Data Storage | 10000 results |
| Quality Control | X̄, SD, CV%, L-J quality control curve for every test item |
| Flow Cell | 32 μL quartz glass, 10 mm |
| Light Source | Philips 6V 10W halogen lamp, long life |
| CPU | ARM series high-speed micro CPU |
| Display & Interface | |
| Screen | 7-inch color LCD |
| Printer | Internal thermal sensitive printer |
| Interface | RS-232 |
| Power & Environment | |
| Power Supply | 100–240 VAC, 50–60 Hz, 100 VA |
| Working Environment | Temperature 0℃–40℃; Humidity 80% |
| Physical Specifications | |
| Dimension | 340(L) × 270(W) × 160(H) mm |
| Weight | 5 kg |
| Application Test Menu | |
| Liver Function | ALT, AST, ALP, T-BIL, D-BIL, TP, ALB, TTT, CHE, NH₃ |
| Renal Function | BUN, CRE, UA, URE, CO2-CP, γ-GT |
| Lipids | T-CHO, TG, HDL-C, LDL-C |
| Cardiac Function | CK, CK-MB, LDH |
| Immune Proteins | IGA, IGG, IGM, C3 |
| Others | GLU, HGB, AMS |
Feature list for UMY-CA-002:
* Multi method chemistry testing including kinetic and absorbance modes
* Seven wavelength optical system with high absorbance precision
* Flow cell incubator with quartz glass construction
* Ten incubators with accurate temperature stability
* Three timers for synchronized test operation
* Internal thermal printer for immediate result output
* ARM based high speed processing for stable performance
* RS232 interface for system integration
* Compact footprint suitable for limited laboratory space
Application:
Ideal for hospitals diagnostic laboratories and outpatient testing facilities performing routine biochemical analysis. Supports consistent daily testing with precise control and reliable optical measurement.
