Biphasic Defibrillator Monitor with Voice Prompts, ECG, and Optional Advanced Features for Human Medical Use
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-ED-002
- Warranty: 1 Year
- Origin: China

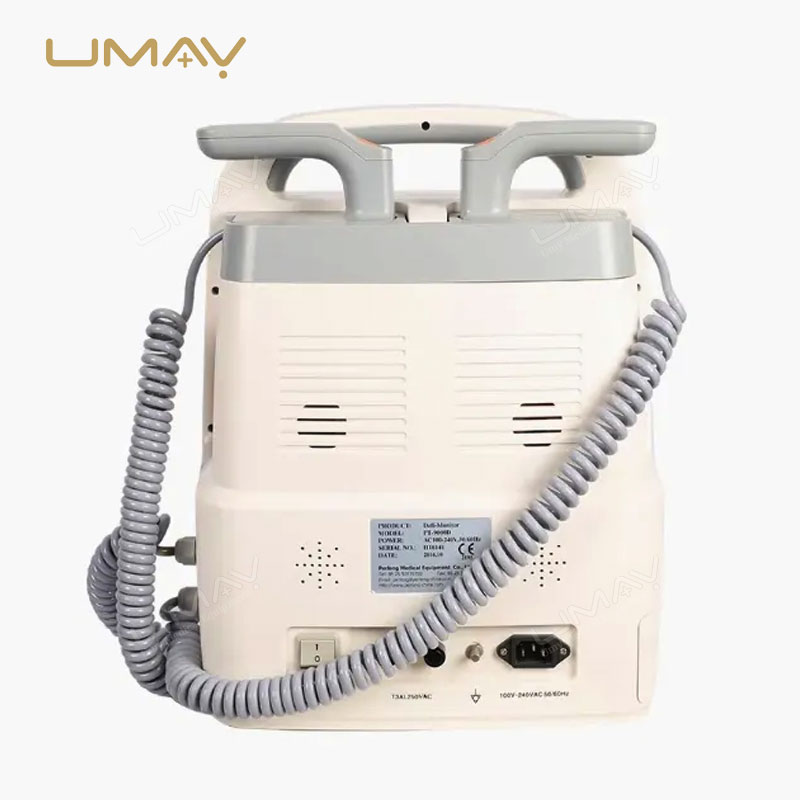

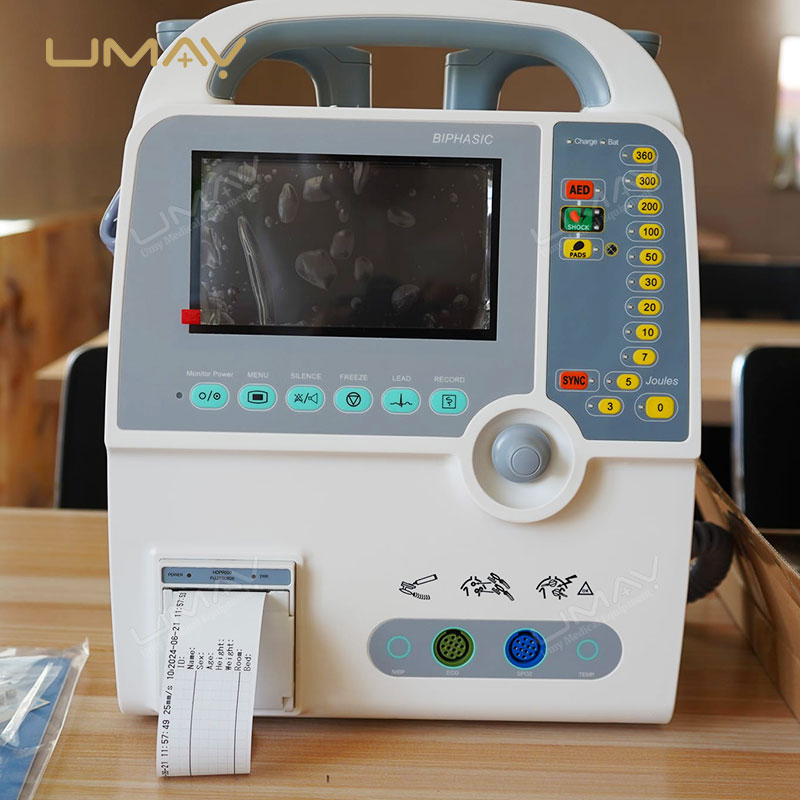

This Portable Biphasic Defibrillator Monitor is designed for human medical use, offering manual defibrillation, real-time ECG monitoring, and voice prompts. With a 7-inch display and a rechargeable lithium battery, it ensures quick and effective intervention in emergency situations. Optional features such as SpO2, AED, and Pacer provide enhanced capabilities for comprehensive cardiac care. For further advanced defibrillation systems, explore our Portable Defibrillator Solutions.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Display | |
| Screen Type | High-resolution TFT color display |
| Screen Size | 7 inches |
| Resolution | 800*480 |
| ECG | |
| Lead Selection | Display on monitor, I, II, III, AVR, AVL, AVF, V |
| Heart Rate | 20-350BPM |
| Protection | 4000V AC/50Hz voltage isolation |
| NIBP | |
| Working Mode | Manual/Automatic |
| Cuff type | Standard Adult, optional Pediatric/Neonatal |
| Temp | |
| Measurement Range | 0–50°C |
| Resolution | 0.1°C |
| Pulse Oximetry (SpO2) | |
| Range | 0-99% for adult, pediatric and neonatal patients |
| Probe | Standard adult finger clip |
| Defibrillator | |
| Waveform | Biphasic |
| Charge Time | Less than 10 seconds to 360 Joules |
| Energy Selection | 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules |
| Battery | |
| Standard Type | Sealed Lead Battery FP1223C 12Vdc 2300mAh X2 |
| Capacity | Up to 10 hours ECG or 60 full-energy discharges |
| Recharge Rate | 80% in 3 hours, 100% in 5 hours |
| Power | |
| AC-DC dual-use | AC100V~240V, 50/60 Hz |
| Vehicle Voltage | DC 12V |
| Main Unit | |
| Maximum Power | 600W |
| Dimensions | L330xW220xH410 |
| Weight | 7.5kg |
Feature list for UMY-ED-002:
* Manual and asynchronous biphasic defibrillation modes
* ECG monitoring and recording
* Rechargeable battery for portability
* Optional SpO2, AED, and Pacer features
* 7-inch display for clear ECG and energy readings
* Voice prompts to guide the operator
* Adjustable energy selection from 30J to 360J
Application:
Ideal for emergency medical care in hospitals, clinics, and ambulances. Suitable for healthcare professionals performing defibrillation and ECG monitoring in critical situations.
