Auto Hematology Analyzer BC-5000 Vet 5-Part CBC Machine for Animals Use
Quick Info.
Type: Blood Analysis System
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
- SKU NO.: UMY-VEHA-003
- Warranty: 1 Year
- Origin: China

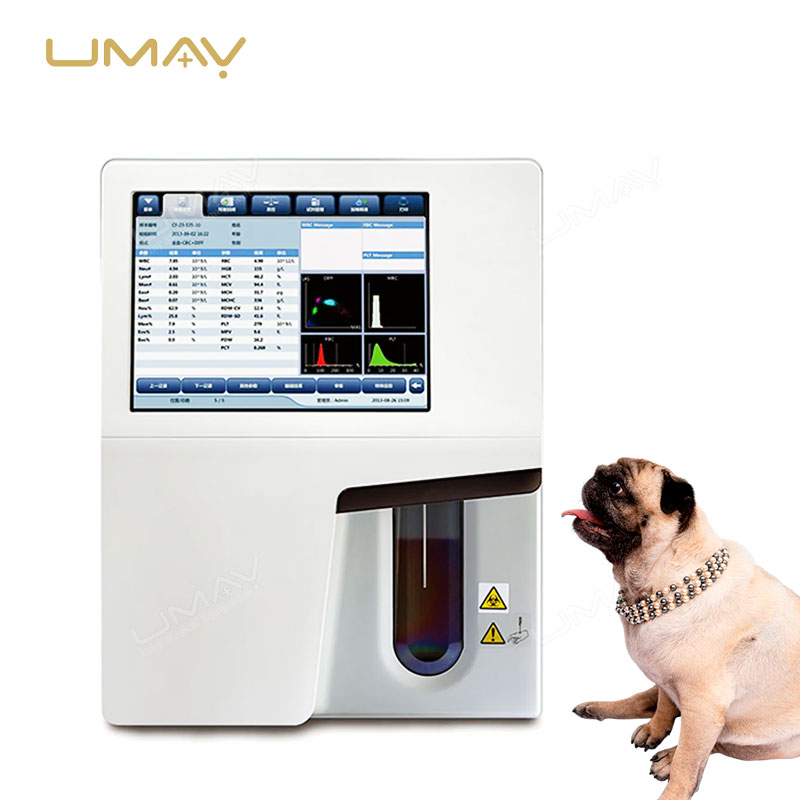

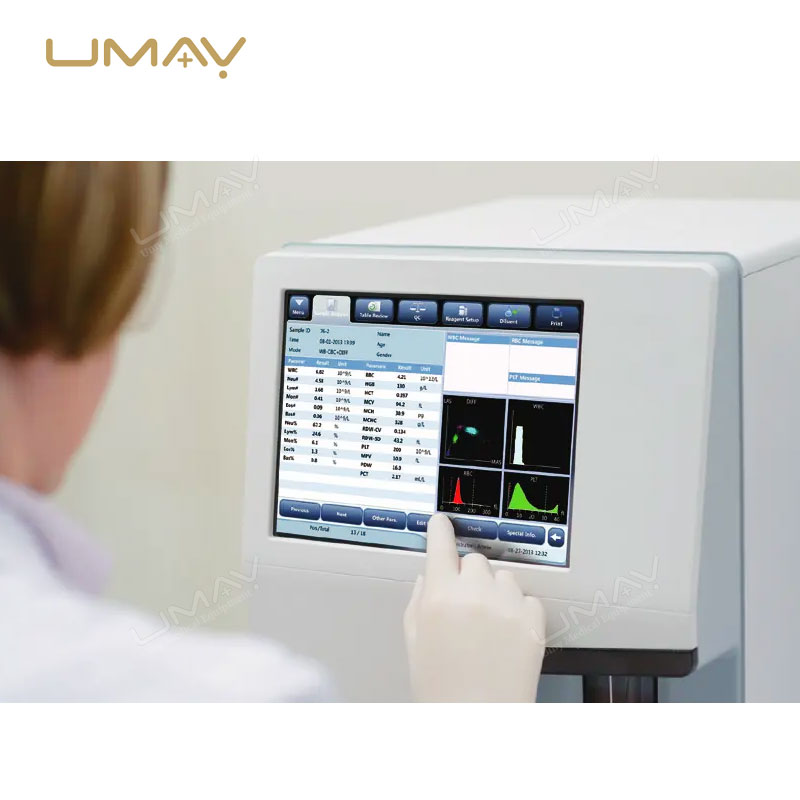

The BC-5000 Vet is a compact, fully automated hematology analyzer designed for veterinary applications, delivering 5-part white blood cell differentials across 23 parameters. Utilizing tri-angle laser scatter, chemical dye, and flow cytometry technologies, it ensures precise and reliable results, even in samples with high eosinophil counts. With a throughput of up to 60 samples per hour and a minimal sample volume requirement of 15 μL, it supports efficient workflows in veterinary clinics and laboratories. The analyzer accommodates 13 pre-programmed animal species and allows for 20 user-defined profiles, enhancing its versatility. Its 10.4-inch TFT touchscreen interface and large storage capacity of up to 40,000 results streamline operations and data management.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Principles | Flow Cytometry (FCM), Tri-angle Laser scatter, chemical dye method, Basophil channel, DC impedance method for RBC and PLT counting |
| Parameters | WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PCT |
| Sample Volume | Whole blood mode: 15 µL, Prediluted mode: 20 µL |
| Throughput | Up to 60 samples per hour |
| Wavelength | 340nm, 405nm, 450nm, 505nm, 550nm, 600nm, 630nm, 670nm, 800nm |
| Display | 10.4 inch TFT Touch Screen |
| Data Storage Capacity | Up to 40,000 results including numeric and graphic information |
| Interface | 4 USB, LAN, bi-directional LIS support |
| Printout | External Laser printer / Thermal printer / Inkjet printer, various formats |
| Power Requirements | AC 100V–240V, ≤300 VA, 50/60 Hz |
| Operating Environment | Temperature: 10°C–30°C, Humidity: 20%–85%, Air pressure: 70kPa–106kPa |
| Dimensions | 410mm (L) x 325mm (W) x 435mm (H) |
| Weight | 25kg |
| Reagents | V-52D DILUENT, V-52DIFF LYSE, V-52LHI LYSE, PROBE CLEANER |
