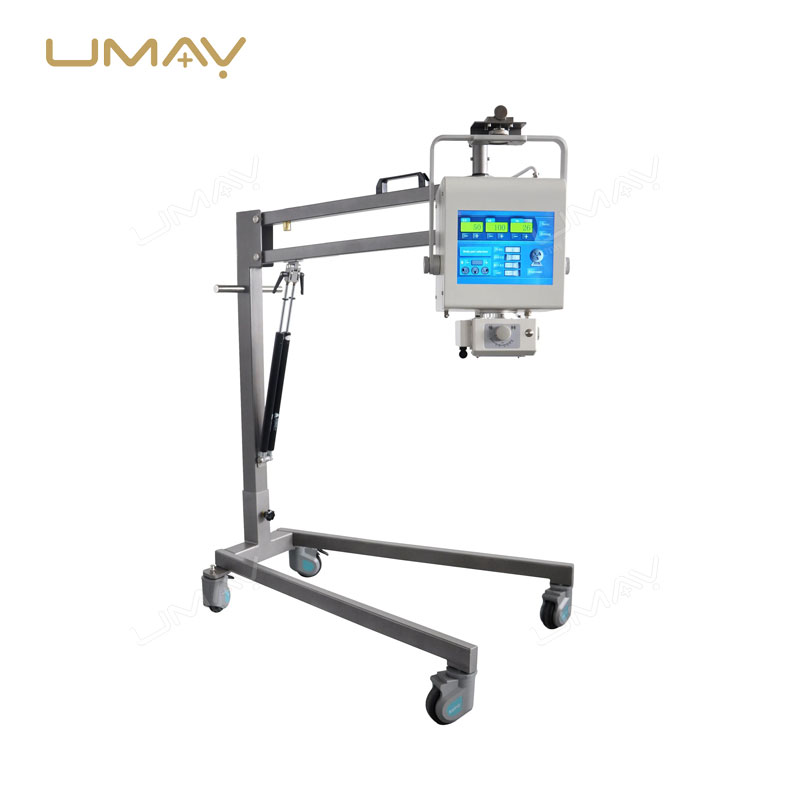

Affordable 5kW Portable High-Frequency X-ray Machine for Medical Imaging
Quick Info.
- SKU NO.: UMY-XM-016
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The Affordable 5kW Portable High-Frequency X-ray Machine is an ideal solution for high-quality medical imaging in a compact and cost-effective package. Designed for versatility, this portable system delivers clear, detailed X-ray images for a variety of diagnostic applications, including trauma, respiratory conditions, and musculoskeletal assessments. Its high-frequency technology ensures faster exposure times and reduced radiation exposure, enhancing both patient safety and diagnostic accuracy. The lightweight design makes it easy to transport and use in various healthcare settings, including clinics and mobile units. This X-ray machine is an essential tool for healthcare providers seeking reliable, high-resolution imaging at an affordable price.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Technical Specifications | |
Voltage | AC220V ± 22V |
Power | 5kW |
kV Range | 40-110kV |
mA Range | 20-100mA |
mAs Range | 0.2-200mAs |
Working Frequency | ≥40kHz |
X-Ray Tube | |
Exposure Time | 0.01s – 4s |
Anode Heat Storage | 56KHU |
Focus | 1.8mm |
Inherent Filtration | 1mm Al @ 75kV |
Light Source | LED |
Touch Screen | |
Dimension | 10.4 inch |
Physical Specifications | |
Main Unit Weight | 19kg |
Main Unit Dimension | 290mm × 265mm × 230mm |
