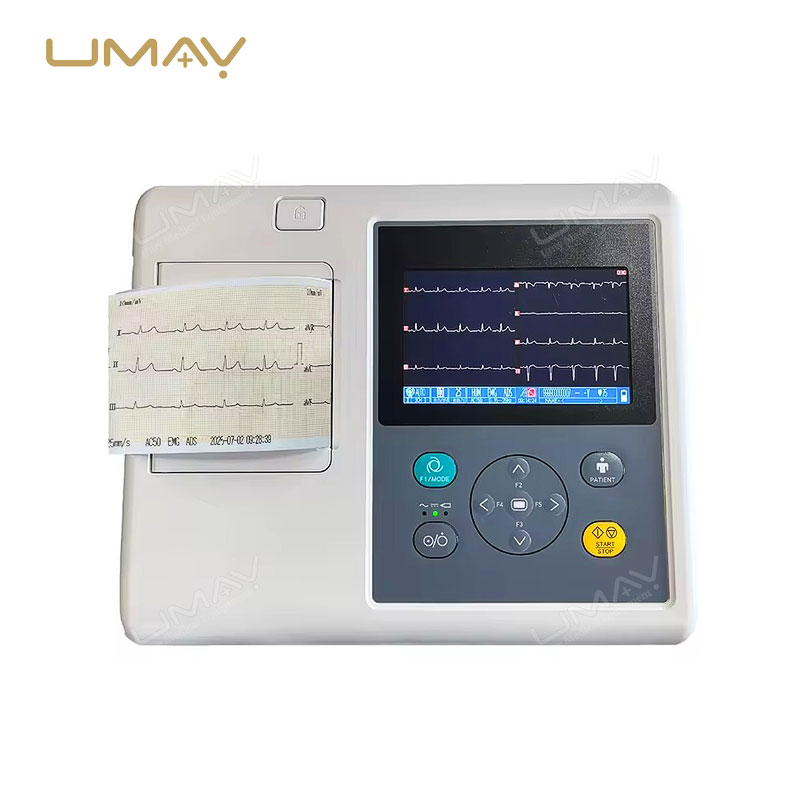

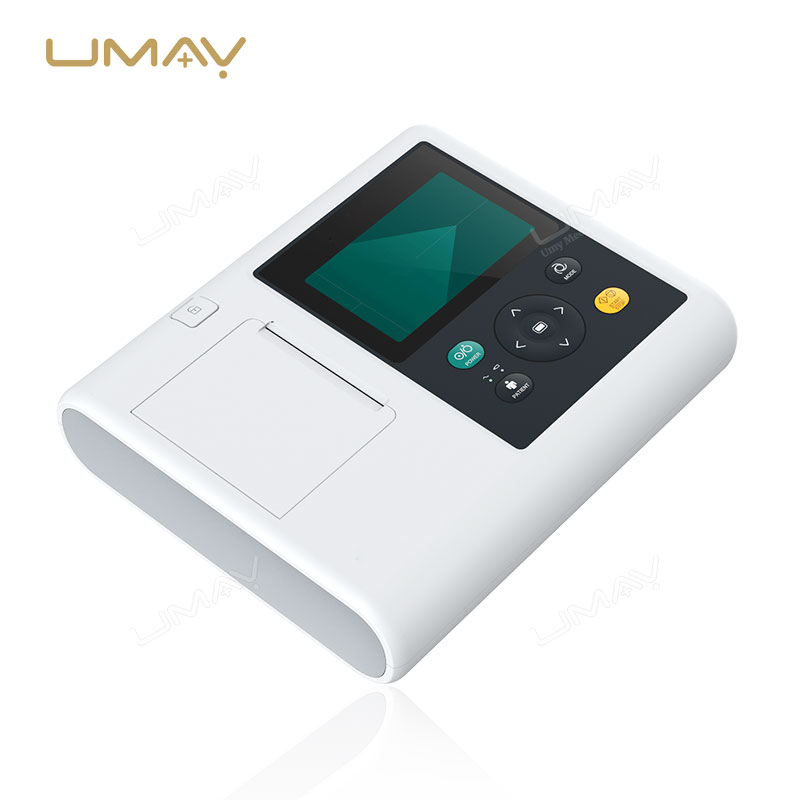

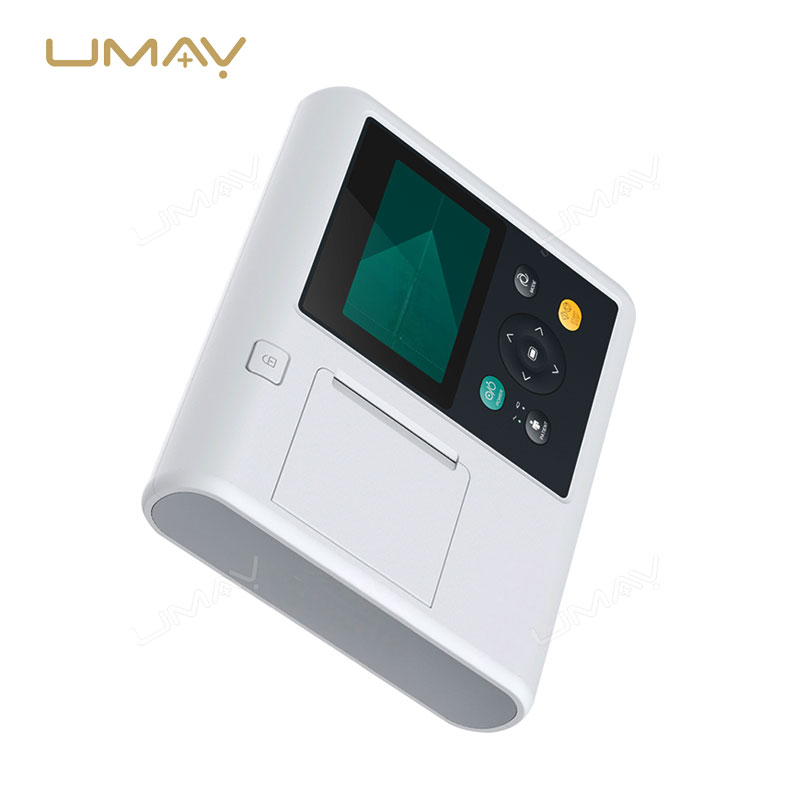

Affordable 3 Channel ECG Machine with 5-inch Display for Clinical Efficiency
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-EC-001
- Warranty: 1 Year
- Origin: China
Designed for efficiency and reliability, this portable ECG machine offers exceptional value with its cost-saving design and precise diagnostic capabilities. Featuring a 5-inch color LCD and high-accuracy digital filter, it provides clear and reliable ECG waveforms. The device supports USB storage via USB/ UART ports, making it easy to store and transfer data. It’s an excellent choice for clinics, hospitals, and medical units seeking a budget-friendly yet efficient solution for heart diagnostics. Learn more about affordable medical devices.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Product Overview | |
| Lead | Standard 12 leads, 3 channel |
| Lead Acquisition | 12 leads synchronously acquisition |
| Work Mode | Manual/Auto/R-R/Store |
| Technical Specifications | |
| Time Constant | ≥3.2s |
| Frequency Response | 0.05–160Hz (-3db) |
| Noise Level | <15uVp-p |
| Inter-channel Interference | ≤0.5mm |
| Sensitivity | Auto, 2.5, 5, 10, 20, 40mm/mV (±3%) |
| Recording Mode | 1ch, 3ch, 3ch+ |
| Paper Speed | 6.25, 12.5, 25, 50mm/s (±3%) |
| Recording Paper | 80mm × 20m roll thermal paper |
| Power Supply | AC110-230V (±10%), 50/60Hz, 40VA, DC: Built-in rechargeable Li-Ion battery, 14.4V, 2200mAh |

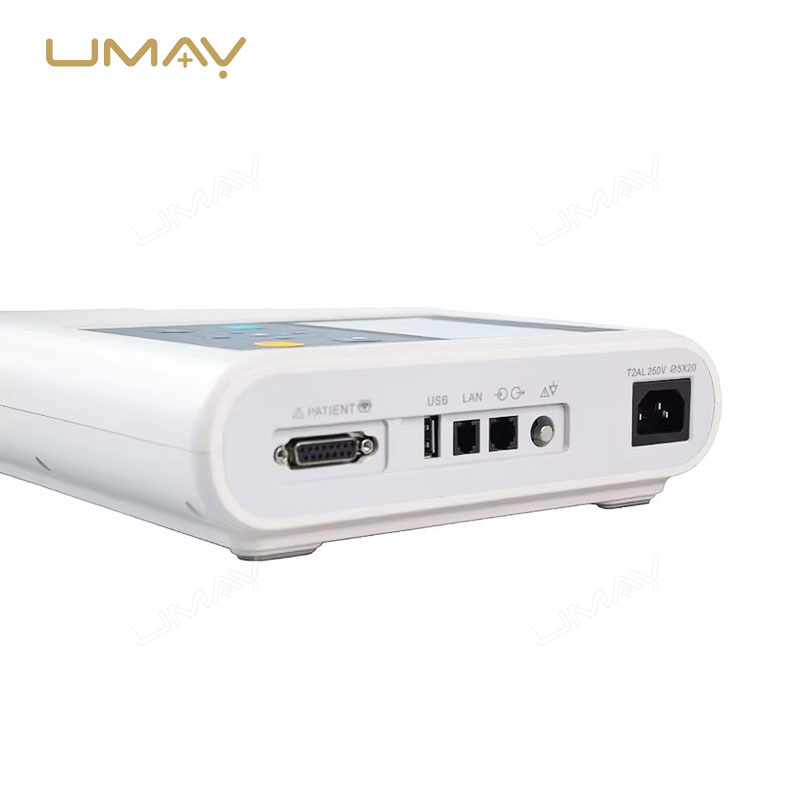

| Communication Port | USB, UART |
| Dimensions | 300mm × 230mm × 72mm, 2.8kg |
| Filter and Input Specifications | |
| Filter | AC Filter: 50Hz/60Hz, EMG Filter: 25Hz/45Hz, Anti-Drift Filter: 0.15Hz (adaptive) |
| CMRR | ≥120dB (with AC filter) |
| Input Circuit | Floating: Protection circuit against defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | ≤0.05μA |
| Patient Current Leakage | <10μA |
| Calibration Voltage | 1mV ±2% |
| Voltage Tolerance | ≥±500mV |

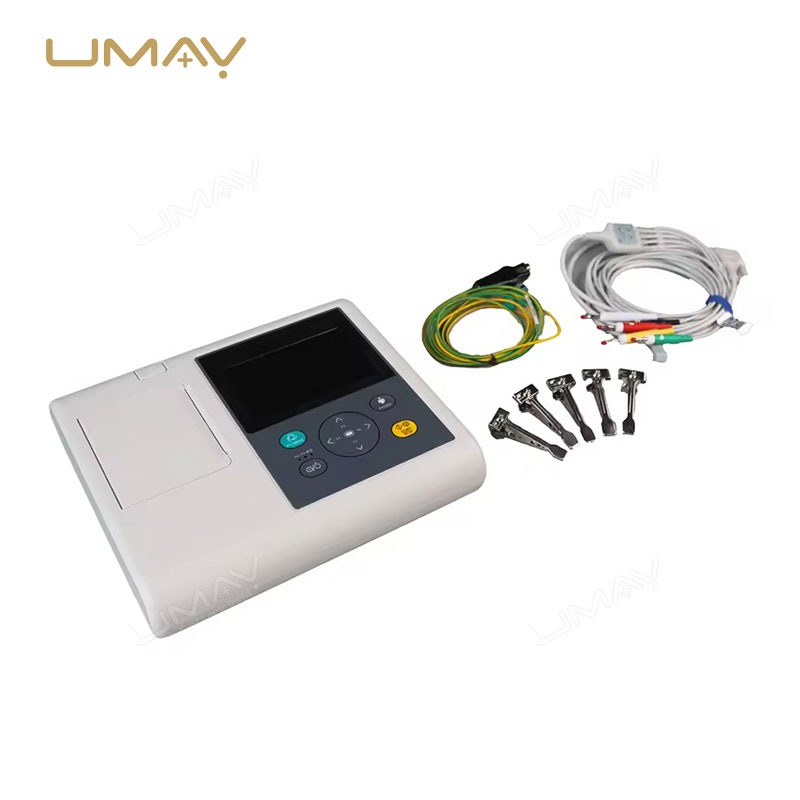

| Package List | |
| Main Unit | 1 pc |
| Patient Cable | 1 pc |
| Limb Electrodes | 1 set (4 pcs) |
| Chest Electrodes | 1 set (6 pcs) |
| Fuse | 2 pcs |
| Paper Axis | 3 pcs |
| Power Cable | 1 pc |
| Recording Paper | 1 roll (80mm × 20m) |
| Operation Manual | 1 copy |
Feature list for UMY-EC-001:
* 5-inch color LCD for precise ECG waveform display
* High-accuracy digital filter for accurate heart diagnostics
* USB/ UART port for easy data storage and transfer
* Built-in rechargeable Li-ion battery for portability
* Automatic baseline adjustment for consistent results
* Power adaptable to 110-230V/50-60Hz for global use
* Ergonomic design for smooth operation
Application:
Ideal for use in clinical settings, this ECG machine is perfect for routine heart assessments in hospitals, outpatient clinics, and emergency care units. Its portable and cost-effective nature makes it suitable for both small clinics and large medical facilities.
