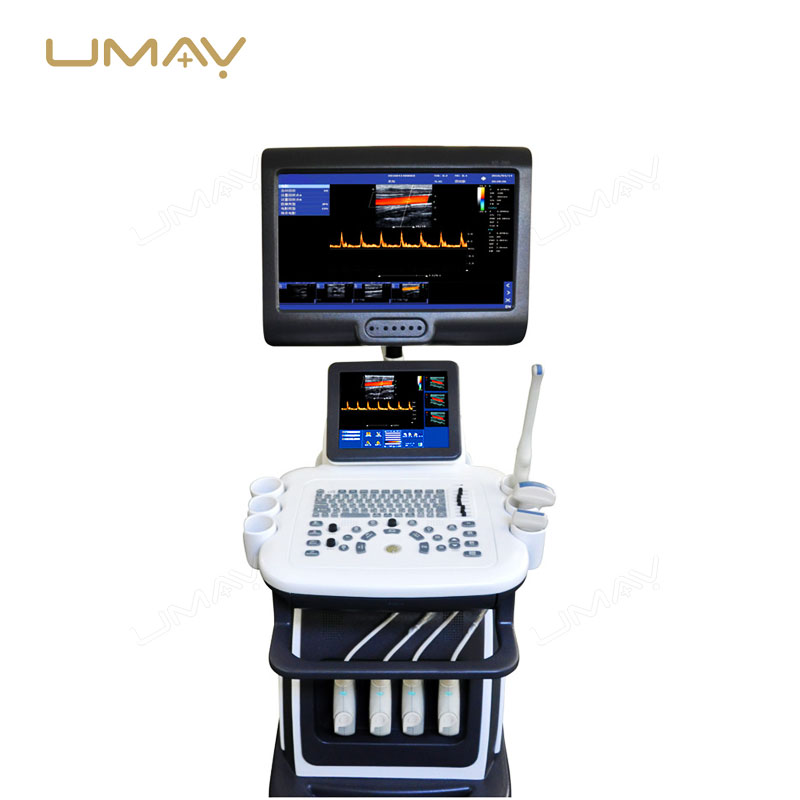

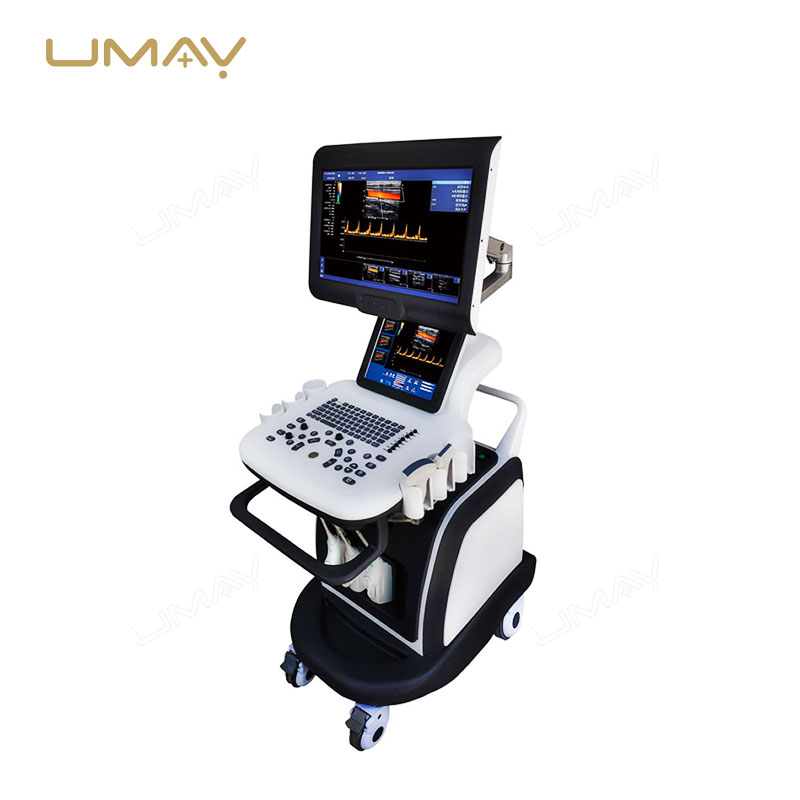

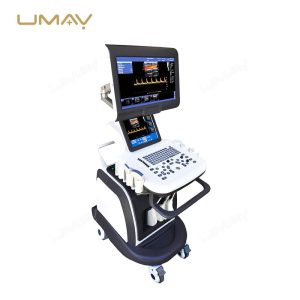

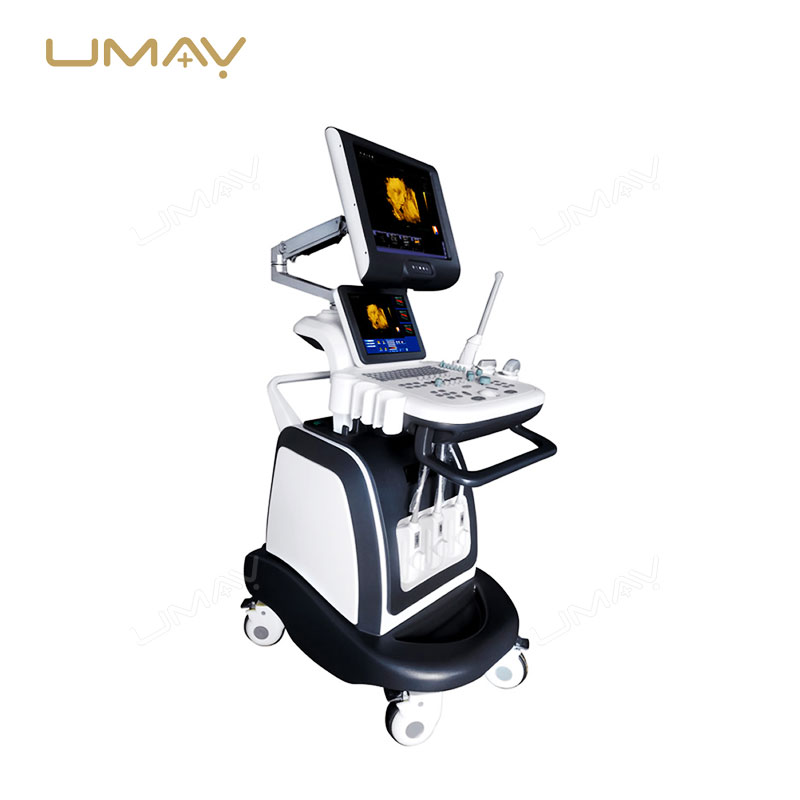

Advanced Imaging Diagnostic Ultrasound Machine (Ecografo)
SKU: UMY-US-094
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-094
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Box
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This advanced diagnostic ultrasound machine (Ecografo) offers cutting-edge imaging technology for accurate and reliable diagnostic results. Its high-resolution capabilities are ideal for a wide range of applications including obstetrics, gynecology, and musculoskeletal imaging. Designed for ease of use, this machine provides clear, real-time images to support efficient decision-making. The system’s user-friendly interface and advanced features ensure precision and reliability for healthcare professionals. Trusted for its performance, it is an essential tool in modern medical diagnostics.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Display | |
| Monitor Type | High-resolution 12-inch LCD monitor, 19-inch LCD monitor |
| All-Digital Imaging Technology | |
| Imaging Technology | Multi-beam synthesis |
| Focus Mode | Real-time dynamic focus imaging point by point |
| Imaging Method | Pulse inverse harmonic composite imaging |
| Image Composition | Space composite |
| Image Optimization | Image enhancement and noise reduction |
| Imaging Mode | |
| Modes | B mode, M mode, Color Doppler mode, Power Doppler mode (PDI), Pulse Doppler mode (PW) |
| Image Display Mode | |
| Frame Options | B, double frame, 4 frame, B+M, M, B+Color, B+PDI, B+PW, PW, B+Color+PW, B+PDI+PW, B/BC dual real-time |
| Supported Probes | |
| Probe Types | Convex array probe, Linear array probe, Micro convex probe, Rectal probe, Heart Probe |
| Probe Frequency | 2.5–12 MHz |
| Probe Socket | ≥4 |
| Supported Frequencies | |
| B/M | Fundamental frequency ≥ 3 gears; Harmonic frequency ≥ 2 gears |
| Color/PDI | ≥2 files |
| PW | ≥2 files |
| Movie Playback | |
| 2D Mode (B) | Maximum ≥5000 frames |
| Color/PDI Mode | Maximum ≥2500 frames |
| Timeline Mode (M, PW) | Maximum ≥190s |
| Image Enlargement | |
| Zoom Mode | Real-time scanning (B, B+C, 2B, 4B), status: stepless zoom |
| Image Storage | |
| Supported Formats | JPG, BMP, FRM for images; CIN, AVI for movies |
| Local Storage | Supported |
| DICOM Support | Complies with DICOM 3.0 standard |
| Workstation Support | Built-in workstation supports hard disk (≥500GB), patient data retrieval, and browsing |
| System Language | |
| Supported Languages | Chinese, English, Spanish; can be extended to other languages |
| Input Methods | Full-screen Chinese and English comment input; supports ≥2 Chinese input methods including Wubi |
| Standard Configuration & Accessories | |
| Main Unit | Full digital color Doppler ultrasound host with 500GB built-in hard disk |
| Probes | 3.5MHz frequency conversion micro convex probe (1 pc); 7.5MHz variable frequency linear array probe (1 pc) |
| Documents | Instructions and qualification documents (1 set) |
| Software System | Built-in Win7 telemedicine workstation system (1 set) |
| Accessories | Wireless keyboard and mouse (1 set) |
