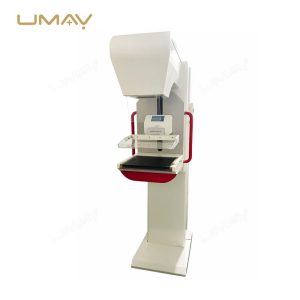

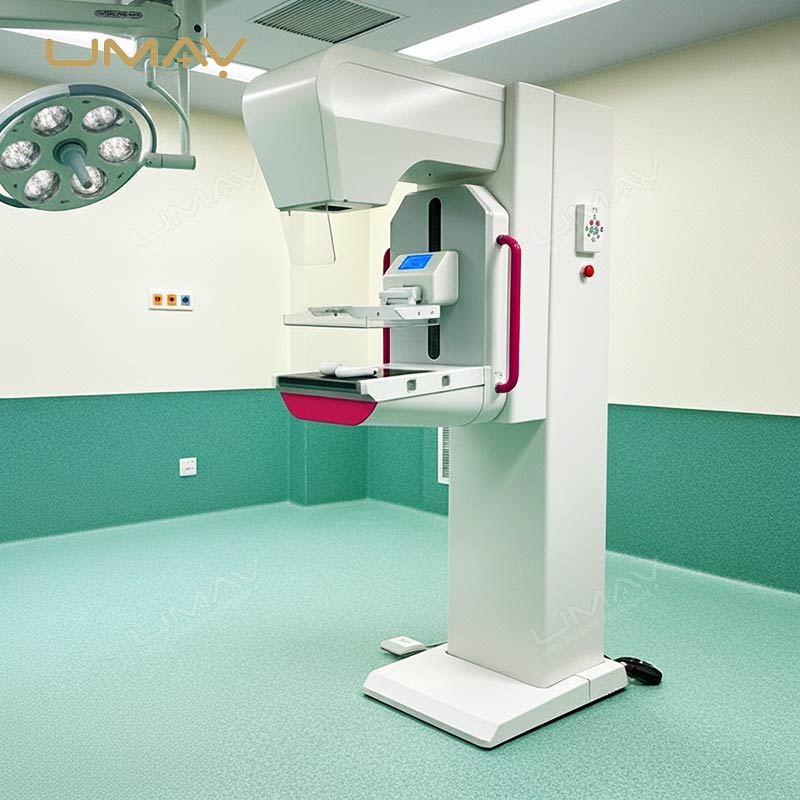

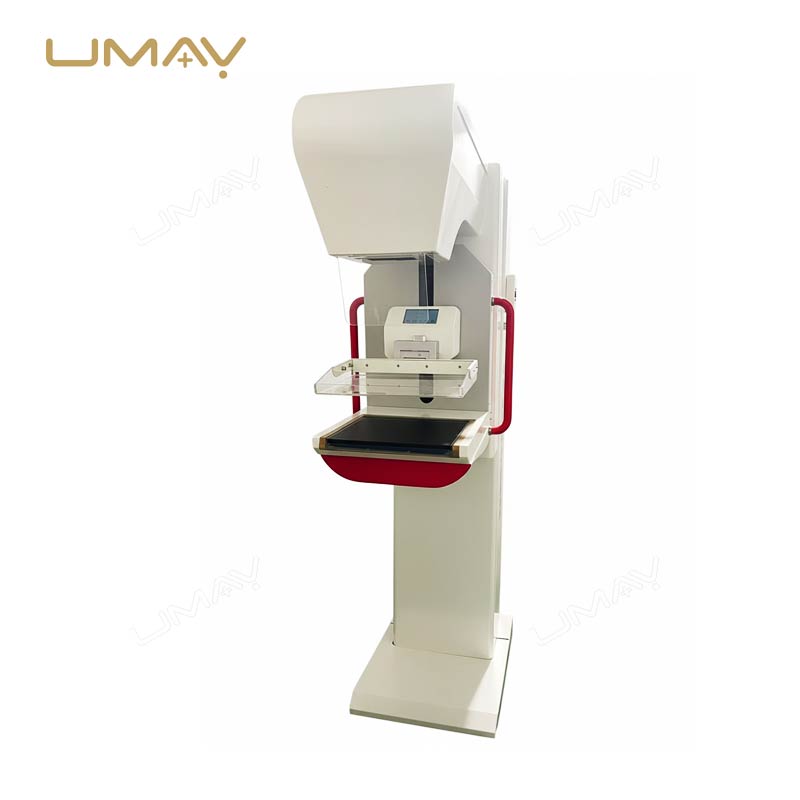

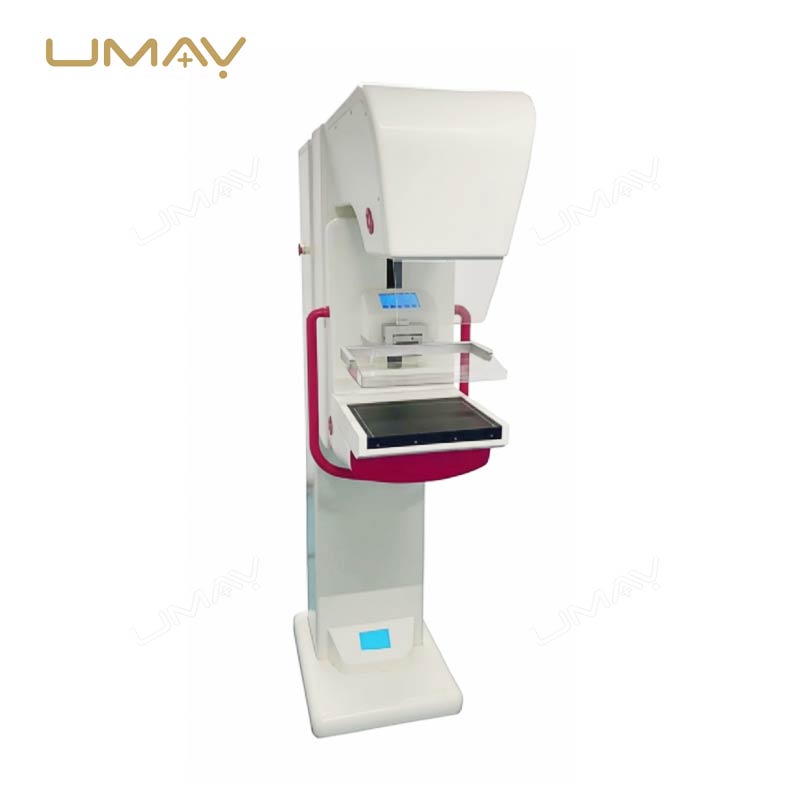

Adjustable Digital Mammography X Ray System with Advanced Imaging Workstation
Quick Info.
- SKU NO.: UMY-XM-081
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
This high performance digital mammography X ray system integrates a specialized molybdenum target tube and high pressure generator to deliver detailed breast imaging with minimal radiation dose. Its fine focal spot and 4K matrix ensure diagnostic precision in detecting early stage lesions, calcifications, and other abnormalities. The ergonomic stand design with adjustable C arm supports accurate positioning and patient safety during exams. With advanced workstation integration, the system offers image analysis, reporting, and secure data management.
For clinics seeking complementary radiology equipment, the Color Doppler Ultrasound Machine with 21.5 inch Medical LCD Monitor and Articulating Arm provides versatile imaging support.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Application Scene | |
| Usage | Primarily for X-ray examination of female breasts |
| Clinical Application | Basic breast examination and diagnostic equipment in gynecology and specialized hospitals |
| Purpose | Detect lumps, calcifications, non-metallic foreign bodies, and soft tissue such as hemangiomas |
| Breast Specific Mammography X-Ray Tube | |
| Manufacturer | Italian IAE Company XM-15 |
| Focus | 0.1mm / 0.3mm |
| Anode Heat Capacity | 300 KHU |
| Nominal Tube Voltage | 60kV |
| High Frequency and High Pressure Generator | |
| High Voltage Cable | 9m |
| Total Power | 5kW |
| kV Range | 20–40kV |
| mA Range | 10–160mA |
| Exposure Time | 50ms–10s |

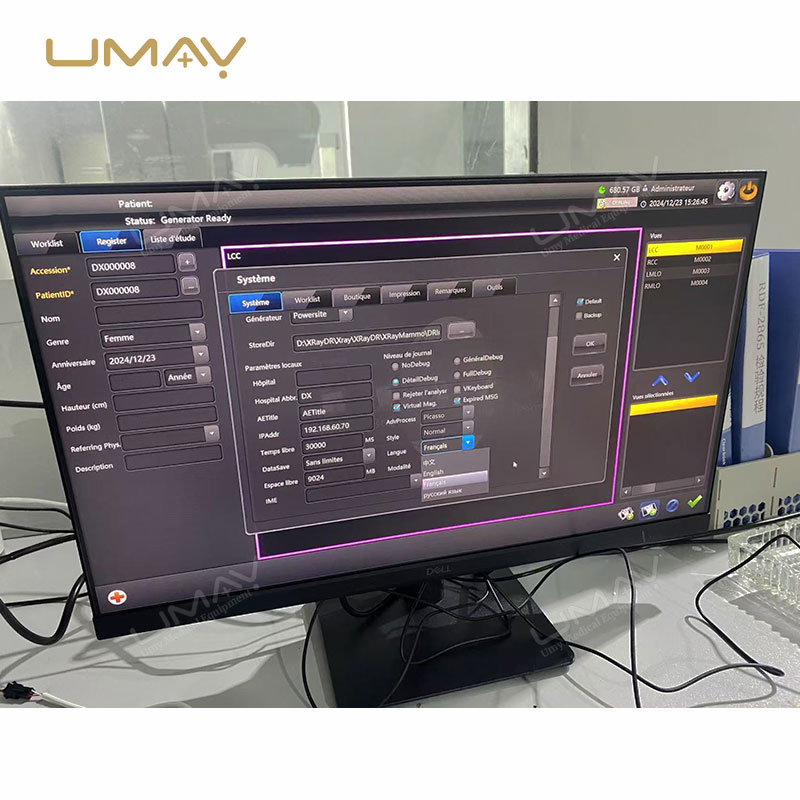

| Digital Imaging Workstation | |

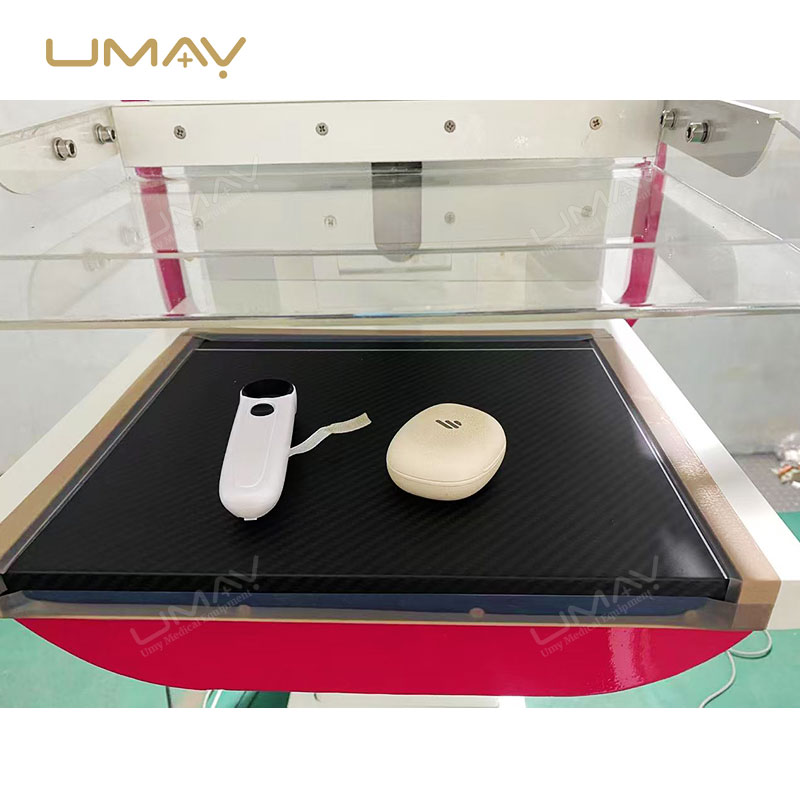

| Detector Type | Breast flat-panel detector |
| Matrix Size | 4K x 3K |
| Pixel Size | 80um |
| Visual Field | 31 x 23cm |
| A/D Conversion | 14 bits |
| Resolution | 6LP/mm |

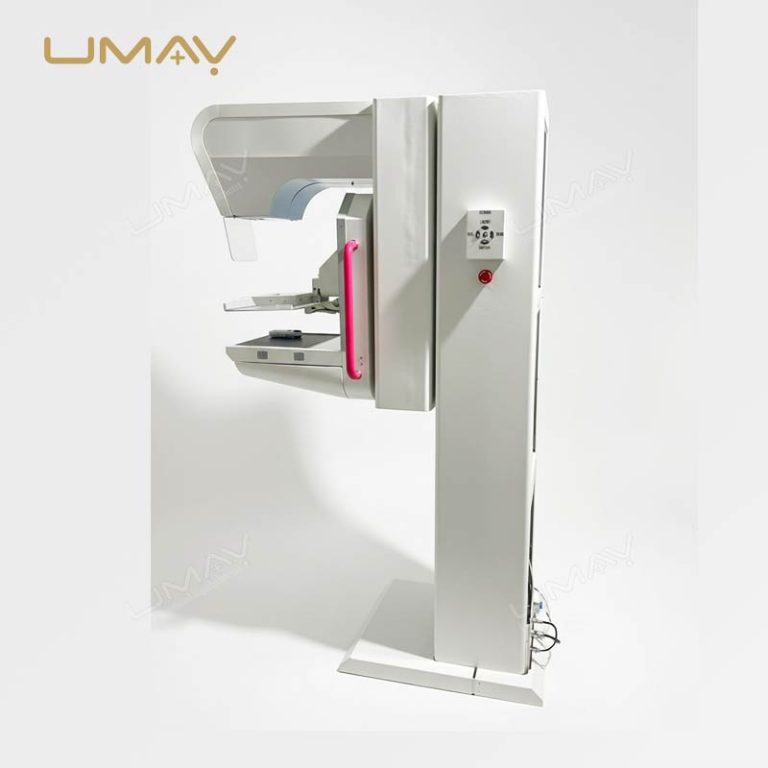

| Stand Frame | |
| Focus-Probe Surface Distance (SID) | 65cm |
| Comper Dimensions | 245mm long, 185mm wide, travel greater than 390mm |
| Comper Pressure Range | 0–20N |
| C-arm Vertical Movement Range | 550mm |
| C-arm Rotation Angle | -175° to 180°, electric rotation, locking |
Feature list for UMY-XM-081:
* Molybdenum target X-ray tube (IAE company XM-15) for detailed imaging
* Adjustable kV (20–40kV) and mA (10–160mA) for flexible exposure control
* High-frequency generator with 5kW total power output
* Exposure time range from 50ms to 10s for optimal imaging flexibility
* 4K x 3K digital flat-panel detector with 80μm pixel size
* High resolution (6LP/mm) and 14-bit A/D conversion for sharp clarity
* C-arm rotation range: -175° to +180° with vertical movement (550mm)
* Large focus-probe distance for efficient sectioning
Application:
Designed for use in diagnostic imaging centers and hospitals, this mammography X-ray system is perfect for early detection of breast cancer and routine breast health monitoring. It provides reliable and accurate results in clinical and research settings.
