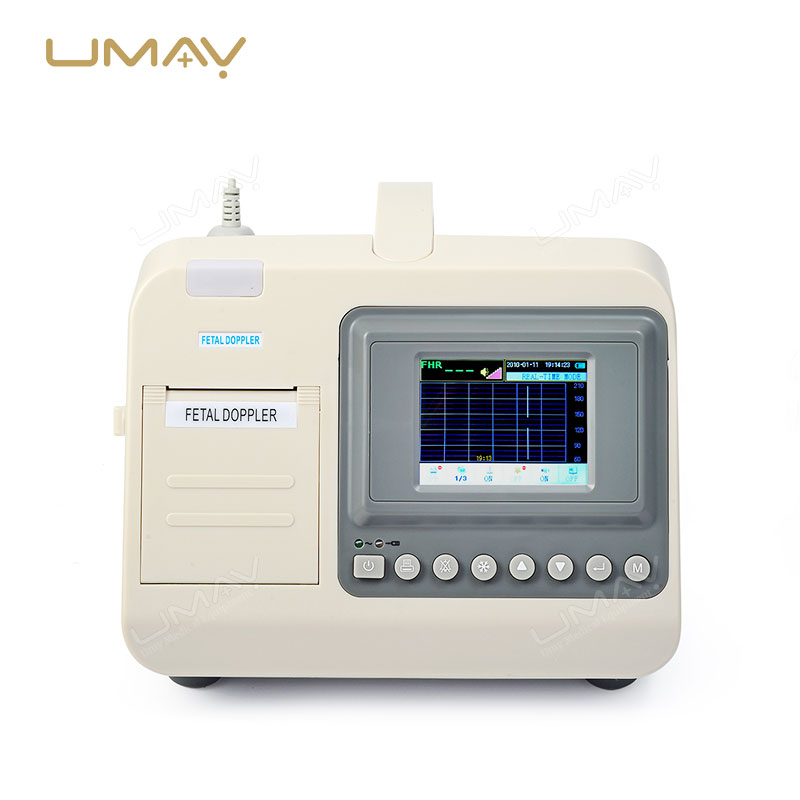

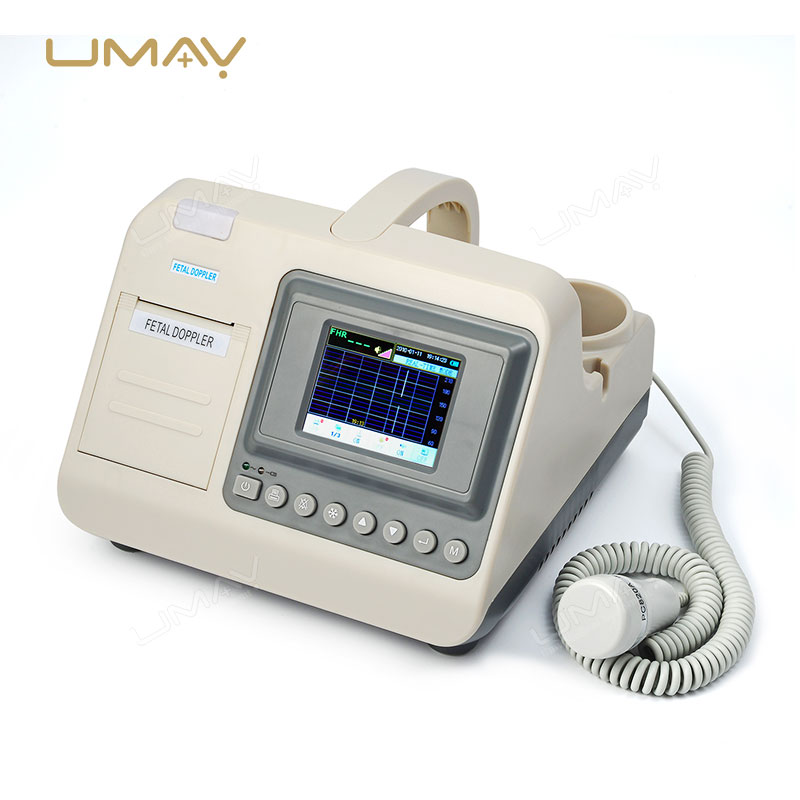

UMFD005 & UMFD005A Portable Ultrasound Fetal Doppler for Fetal Heart Rate Examination
The UMFD005 & UMFD005A Fetal Doppler belongs to the 8C/8D ultrasonic fetal doppler series. It is designed for daily fetal check‑up and routine prenatal examination in households, clinics, community health centers and hospitals. Equipped with high‑fidelity audio output, multi‑mode LCD display, dual audio‑light alarm and USB data transmission function, it can work with dedicated PC software to realize complete fetal monitoring data management.
Key Features
High‑Fidelity Clear Fetal Heart Sound
Crystal‑clear fetal heart audio output, supporting both built‑in speaker and external earphone for listening.
Backlit / Color LCD Display & Multiple Display Modes
Readable LCD screen with backlight option, various display modes for fetal heart rate and tracing waveform.
Audio & Light Dual Alarm
Combined audible and visual alarm for abnormal fetal heart rate status reminder.
Multiple Working Modes
Rich operation modes to satisfy different prenatal examination scenarios.
Special Anti‑Skid Design
Anti‑skid structure ensures stable device placement during operation.
USB Data Transmission & PC Software Compatibility
USB interface enables data transfer. Supporting PC software for data transmitting, editing, storage, analysis and report printing.
Technical Specifications
| Technical Parameter | Specification Details |
|---|---|
| Ultrasound Frequency | 2MHz / 2.5MHz / 3MHz |
| Ultrasound Intensity | ＜10mW/cm² |
| Display Screen | 65mm×50mm LCD |
| FHR Measuring Range | 50 ~ 230bpm |
| FHR Resolution | 1bpm |
| FHR Accuracy | ±2bpm |
| Power Consumption | ＜12W |
| Power Supply | DC Ni‑Mh rechargeable battery; AC 110/220V, 50/60Hz |
| Dimension | 220mm×220mm×140mm |
| Net Weight | 2.1 Kg |
| Certification | CE0123 |
- Specifications are based on the official technical datasheets for the UMFD005 & UMFD005A Fetal Doppler.

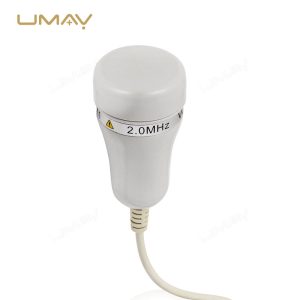

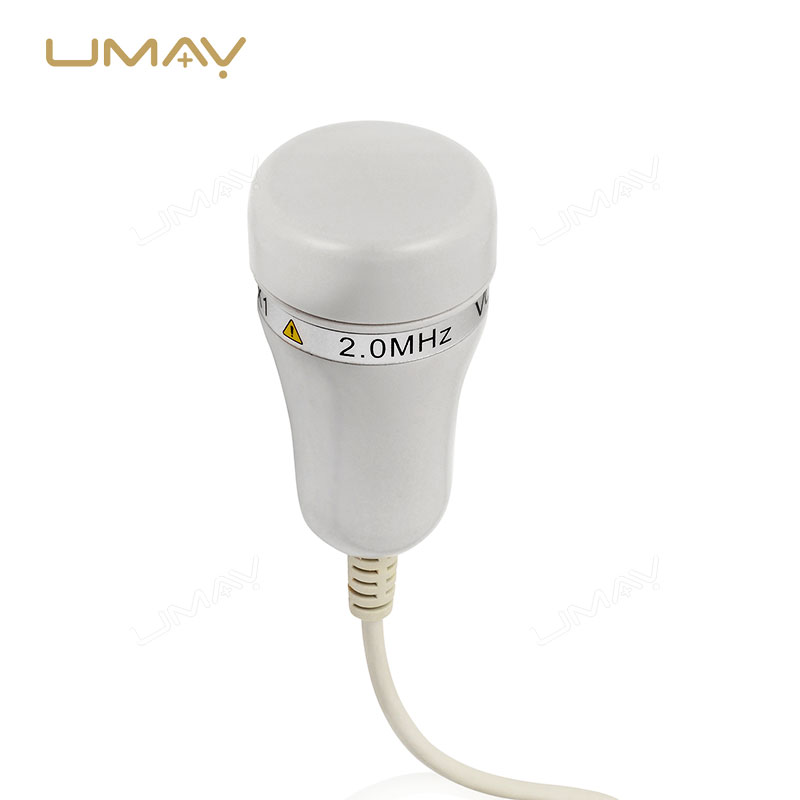

- Standard configuration includes 2MHz probe, power adapter.
- 2.5/3MHz probe, PC software, trolley, carry case and print function are optional accessories.
- All specifications are subject to change without prior notice.
Applications
Hospital Prenatal Examination Department
Routine fetal heart monitoring for inpatient and outpatient prenatal check‑ups.
Clinic & Community Medical Center
Convenient fetal screening service for community‑level maternal health care.
Home Prenatal Self‑Check
Safe and easy‑operated device for regular home fetal heart condition monitoring.
System Configuration

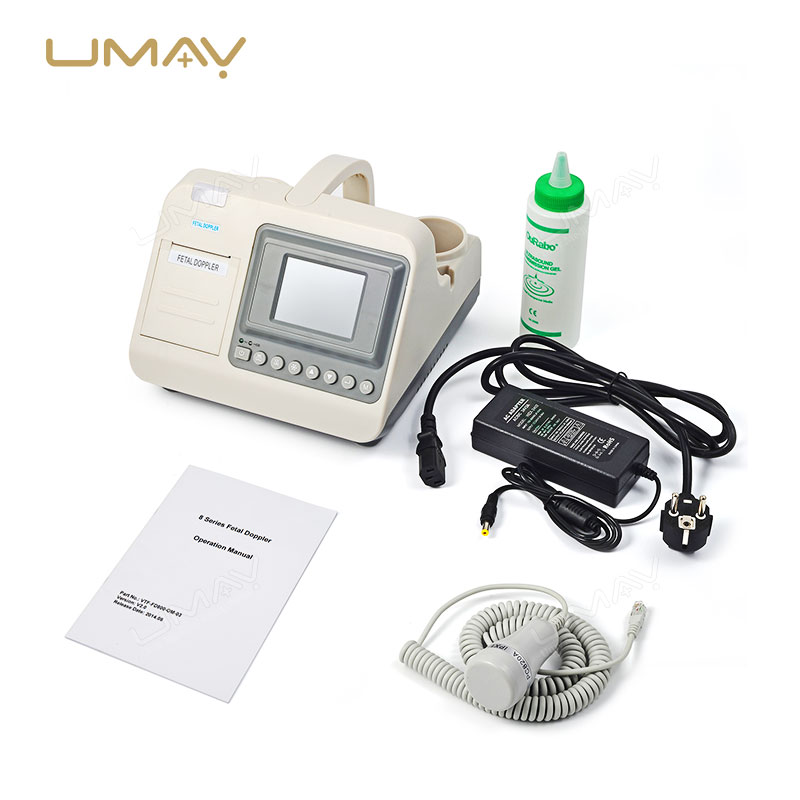

The UMFD005 & UMFD005A Fetal Doppler is supplied complete with main unit, 2MHz ultrasound probe and power adapter. Optional accessories include 2.5MHz /3MHz probe, PC analysis software, trolley, carry case and print function. Please confirm your required optional parts and local power voltage standard before placing an order.
Before Ordering
- Required order quantity and destination country.
- Select optional accessories: alternative frequency probe, PC software, trolley, carry case, print function.
- Confirm local AC voltage specification for device installation.
Request a UMFD005 & UMFD005A Fetal Doppler Quote
Contact UMY Medical to discuss system configurations, pricing, and export delivery for your hospital, clinic or health‑care project.
Frequently Asked Questions
What audio output ways does this fetal doppler support?
It supports built‑in speaker and external earphone for high‑fidelity fetal heart sound listening.
What is the measuring range of fetal heart rate?
FHR measuring range:50‑230bpm, resolution 1bpm, accuracy ±2bpm.
What functions can the supporting PC software achieve?
PC software supports data transmission, editing, storage, analysis and report printing.
What optional accessories are available?
Optional items include 2.5/3MHz probe, PC software, trolley, carry case and print function.
