4K Endoscopic Fluorescence Imaging Camera System Best in Class
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Quality System Standard: ISO13485
- SKU NO.: UMY-EN-010
- Warranty: 1 Year
- Origin: China

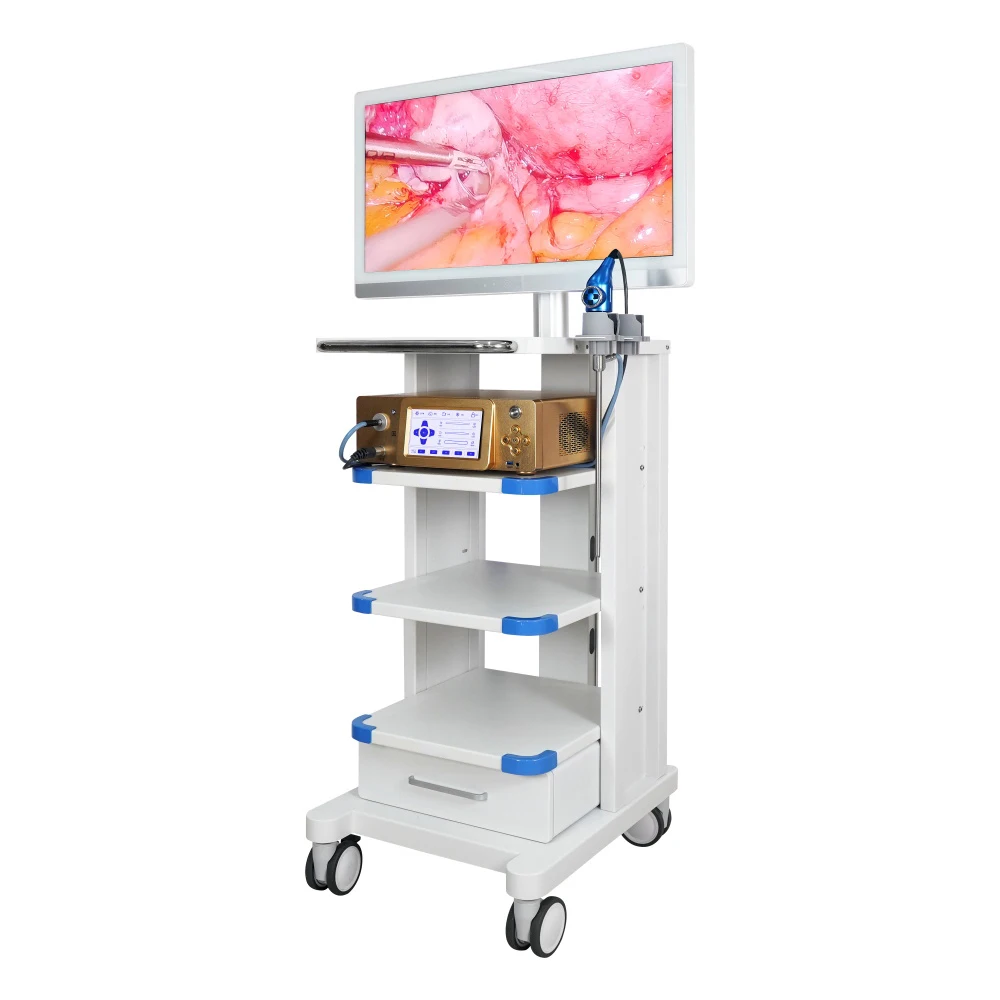

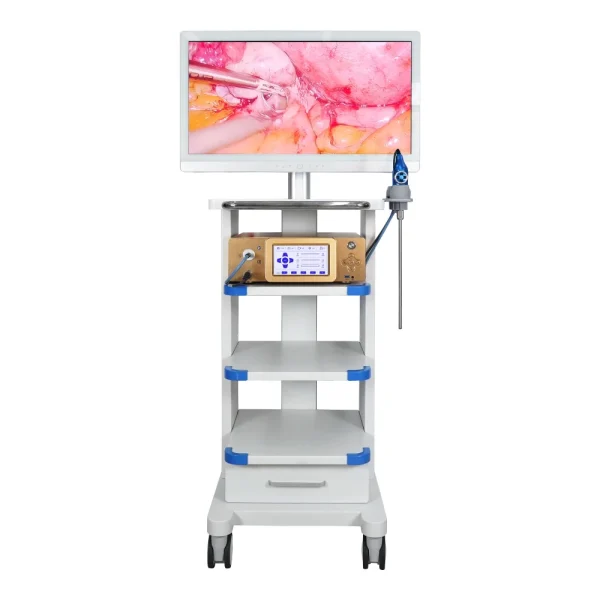

This best-in-class 4K endoscopic fluorescence imaging camera system is designed to deliver exceptional clarity for medical imaging. With advanced fluorescence technology, it enhances tissue visualization during procedures like tumor detection, surgical navigation, and vascular assessments. The 4K resolution ensures precise imaging, allowing medical professionals to make accurate and informed decisions. Ideal for use in oncology, surgery, and other specialized fields, this system improves the effectiveness of diagnostic and treatment processes. Upgrade your clinical capabilities with this state-of-the-art imaging solution for superior patient outcomes.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| General Specification | |
| Resolution ratio | 3840×2160P / 60 Frames |
| Image sensor | 1/1.8″1/1.2″ COMS |
| Resolution | ≥1600 Lines |
| Color | 3500k, 6500k, 7500k, User-defined |
| Photo | 8 million / JPG |
| Record | 3840×2160P / 30—120 minutes / MP4 |
| Output Interface | HDMI (2.0) + HDMI (1.4) + DVI+SDI+3xUSB3.0+Network interface |
| Coding technique | H264/H265 |
| Custom Keys | WB, Freeze, Record, Photo, Scene switch, Zoom, Color, Brightness |
| Playback | Videos and pictures |
| Storage | USB flash disk |
| Remote Control | Support |
| Mouse and Keyboard | Support |
| Foot Step Switch | Support |

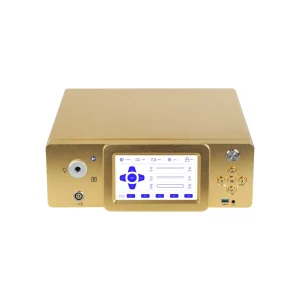

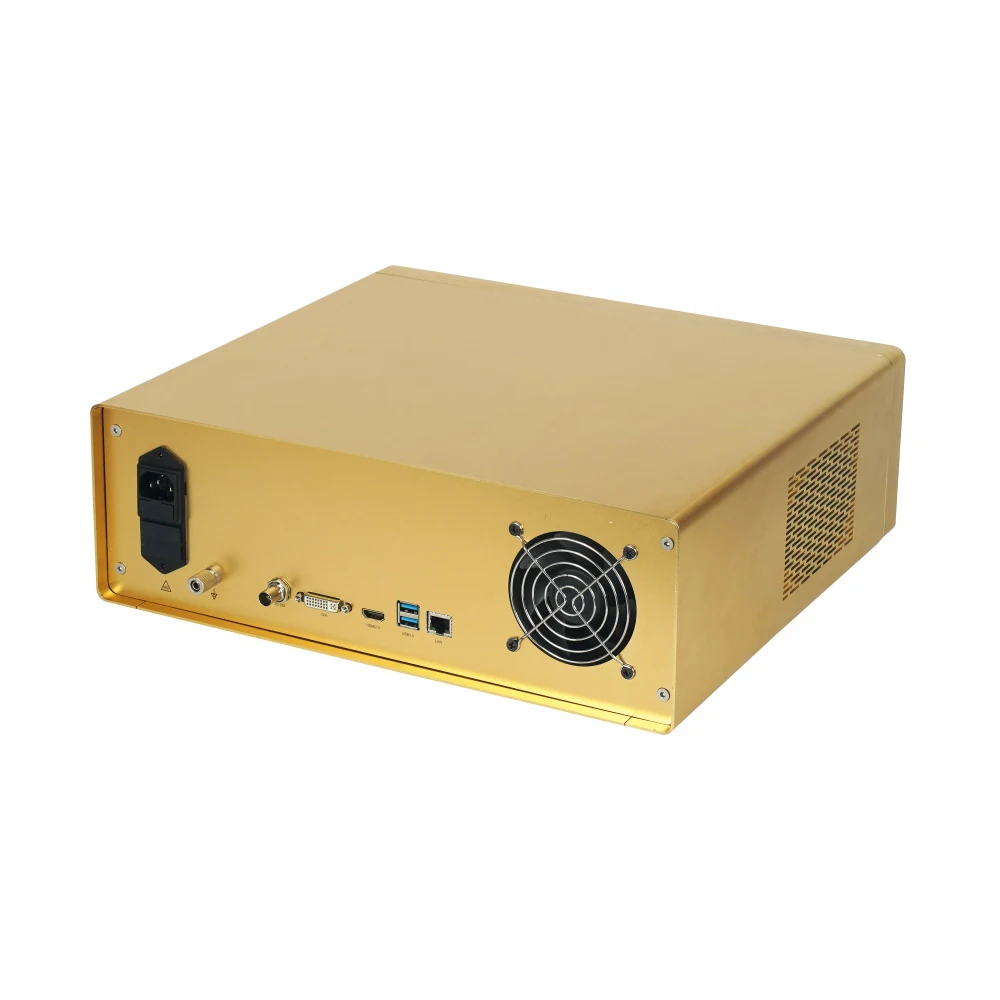

| Host | |
| Functions | 4K, 3D, and fluorescence functions in one, free switch |
| Imaging | 4K ultra-high definition imaging (3840×2160P, 50/60FPS) |
| USB Storage | Built-in USB image storage, one key switch photo/video function |
| Non-destructive amplification | Function available |
| Display | 7 inch touch screen + mechanical double buttons |
| Power Supply | Medical ultra-high brightness LED cold light source, 20 level brightness adjustable |
| Service Life | 50,000 hours |
| Sleep Function | One key sleep function to reduce energy consumption and extend service life |
| Station | |
| Material | High-strength 6 series aluminum composite base and laminate |
| Storage | Bottom with storage drawer, easy access to supplies |
| Monitor | |
| Type | Medical 4K monitor, resolution 3840×2160P, 50/60 FPS |
| Technology | Full panel technology, anti-glare screen, rendering realistic image |
| Size | Optional size: 32” or 55” |
| Handle | |
| Waterproof | IPX8 waterproof grade, easy to sterilize |
| Buttons | 4 function buttons, one-button photo/video/white balance/zoom/zoom |
| Appearance | Watch-like appearance, highlighting key points, keys more texture |
| Connection | Copper axis cable connection, simple and strong shielding performance, not easy to be disturbed |
