3D Oral Health Scanner with AI Automated Reporting for Precise Dental Diagnosis
Quick Info.
- SKU NO.: UMY-DE-032
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
The 3D oral health scanner is designed for precise collection of dental data using advanced optical scanning technology. With AI-powered deep learning algorithms, this scanner automatically generates accurate oral health reports, assisting in the detection and diagnosis of dental conditions. The system supports real-time review of reports, enhancing communication between dentists and patients and ensuring an intuitive diagnostic process. It also supports report printing for easier patient reference. The scanner is equipped with a convenient USB 2.0 interface, ensuring simple setup and operation.
This scanner is perfect for dental clinics, providing efficient diagnostic solutions with advanced AI capabilities.
For related dental diagnostic tools, visit our full range of dental equipment.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Technical Specifications | |
| Product Name | 3D Dental Intraoral Scanner |
| Cmos | 13*13mm |
| Pixels Size | 1024*768 pixels |
| Scope of Reconstruction | 14*14*15mm |
| Intensity of Light Radiation | ≤100mw/cm2 |
| Size of Scanner | 200*58*36mm |
| Data Cable of Scanner | 1.9m |
| USB Data Cable | 1.2m |
| USB Connection | USB 2.0 |
| Operating System | Windows 10 or Microsoft Windows 1064 pro or above |
| Input | 100-240V, 50-60Hz, 0.7A |
| Output | 12V, 1.5A |
| Intra Oral Scanner | 12V, 1.5A |
| Physical Specifications | |
| Weight | 6kg |
| Dimension | 395mm(L)*320mm(W)*135mm(H) |
| Computer System Configuration | |
| CPU (Laptop Recommended) | Intel Core i7-11700H |
| Graphic Card (GPU) | NVIDIA GeForce 3060 or above 6G memory |
| RAM | 16GB or higher |
| Hard Disk Drive | 256GB SSD or above |
| Power Consumption | 25 VA |
| I/O Port | USB 3.0 or higher port |
| System | Windows 10/11 Pro/Corporate Edition (64-bit) |
| Display Resolution | 1920×1080, 60Hz |
At Umy Medical, we offer customizable color options for your dental chair to ensure it fits perfectly with your clinic’s aesthetic. Our extensive color palette allows you to choose from a variety of shades and finishes, giving you the flexibility to match your clinic’s branding or create a calming, professional atmosphere for patients.
Feature list for UMY-DE-032:
* 3D optical scanning with high accuracy for dental diagnostics
* AI-powered report generation for automatic oral health analysis
* Real-time review and remote report sharing for patient interaction
* Printing capability for physical patient records
* USB 2.0 interface for easy device setup and data transfer
* Compact and portable with a comfortable scanning tip for ease of use
* Detects and documents dental lesions automatically with AI assistance

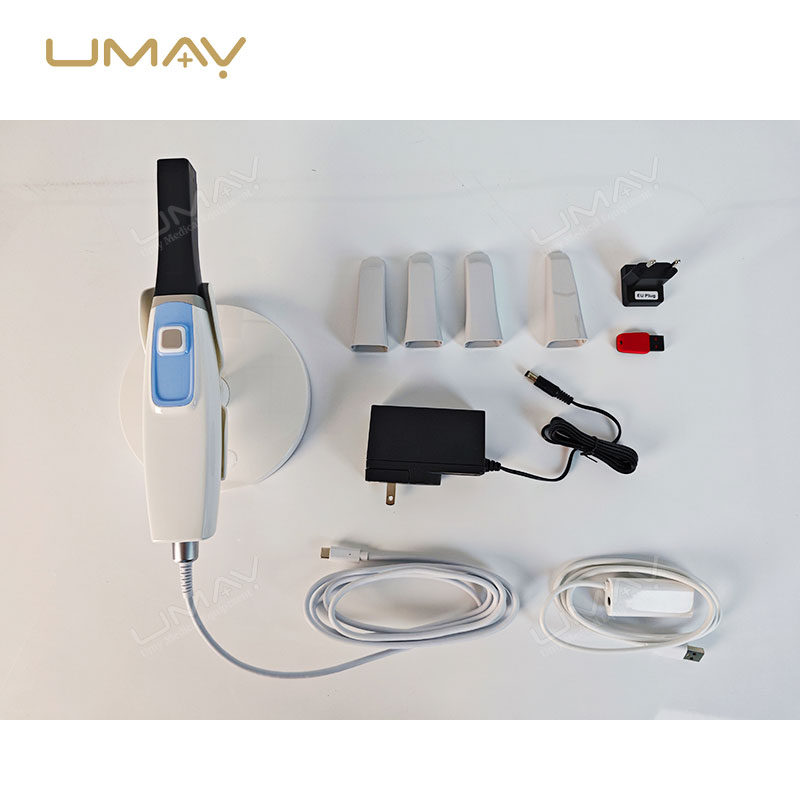

* Includes scanner handpiece, protection tip, and operation manual
* Software included for integration with CAD CAM systems for denture design
Application:
Ideal for dental offices, orthodontic clinics, and laboratories requiring efficient 3D scanning, diagnostic report generation, and seamless patient communication.
