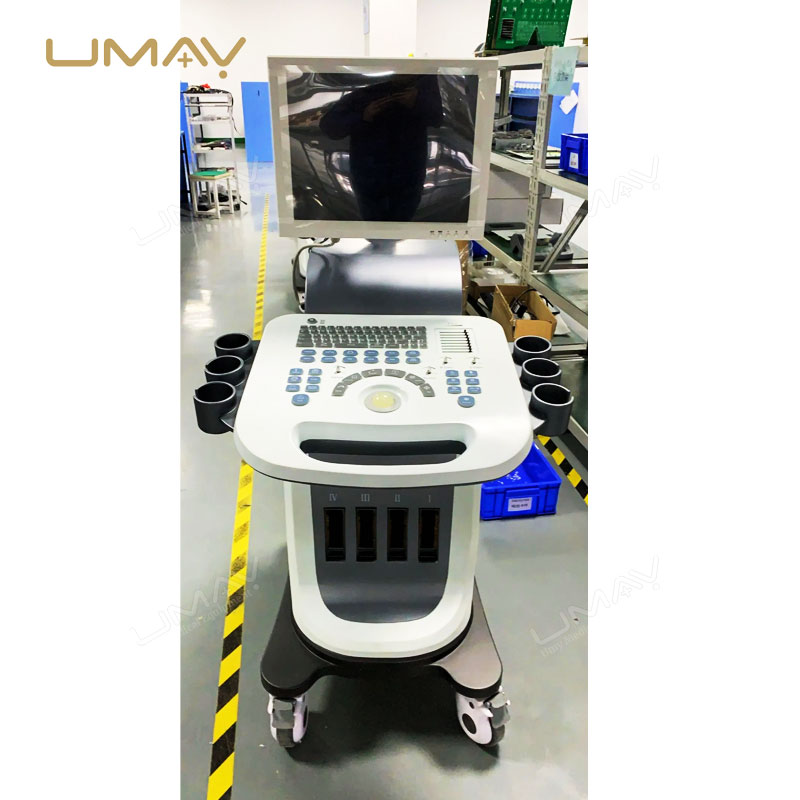

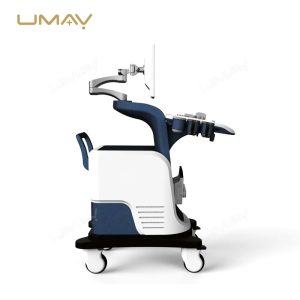

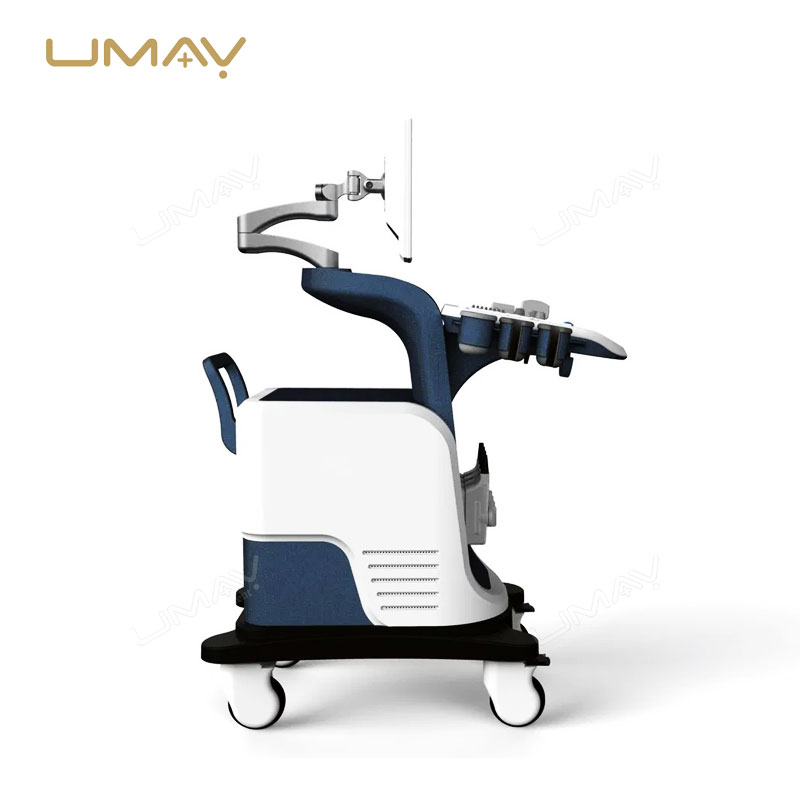

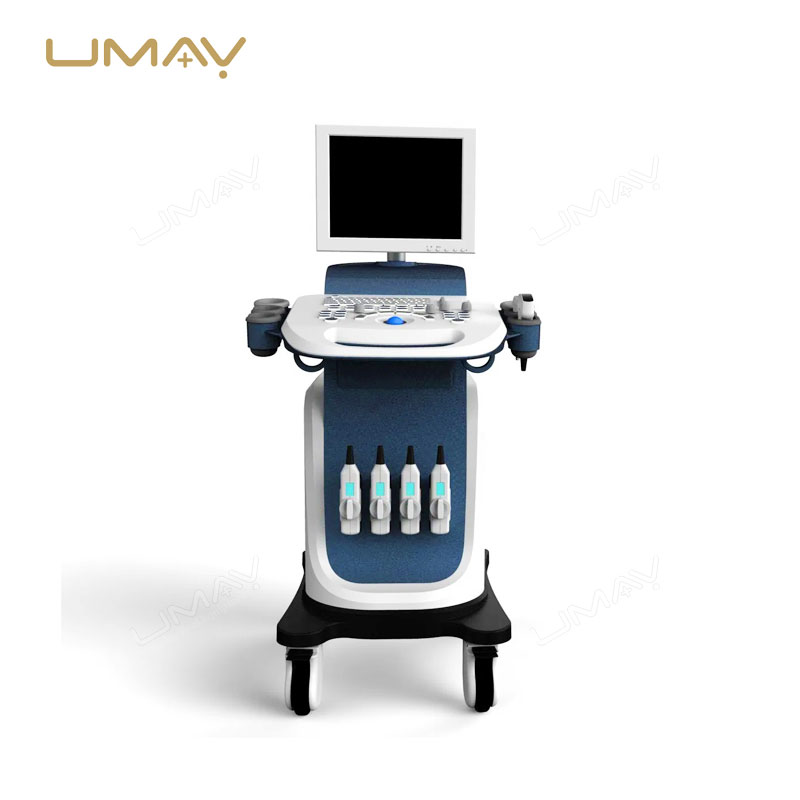

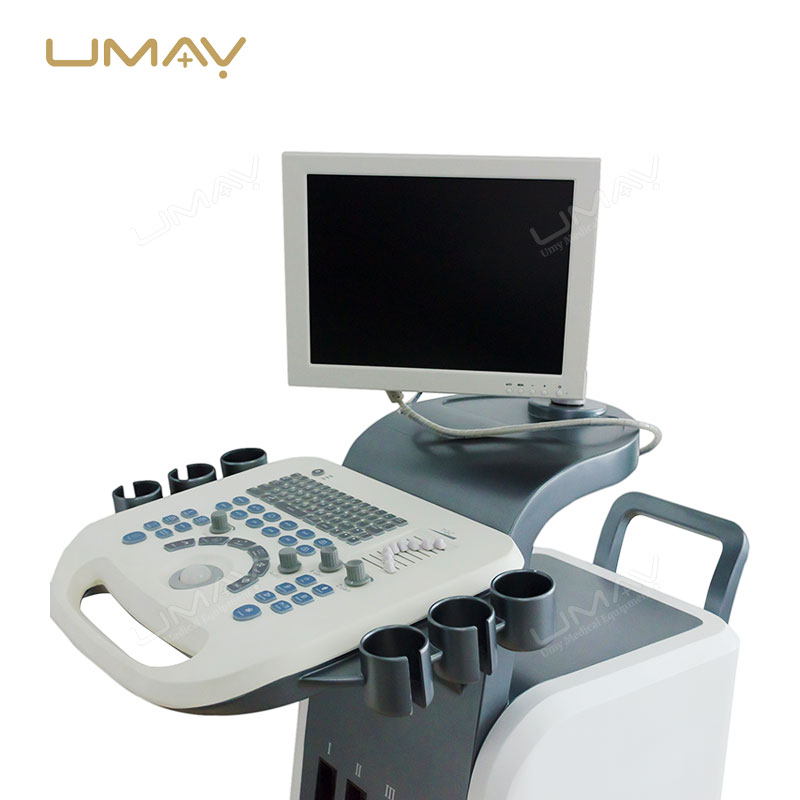

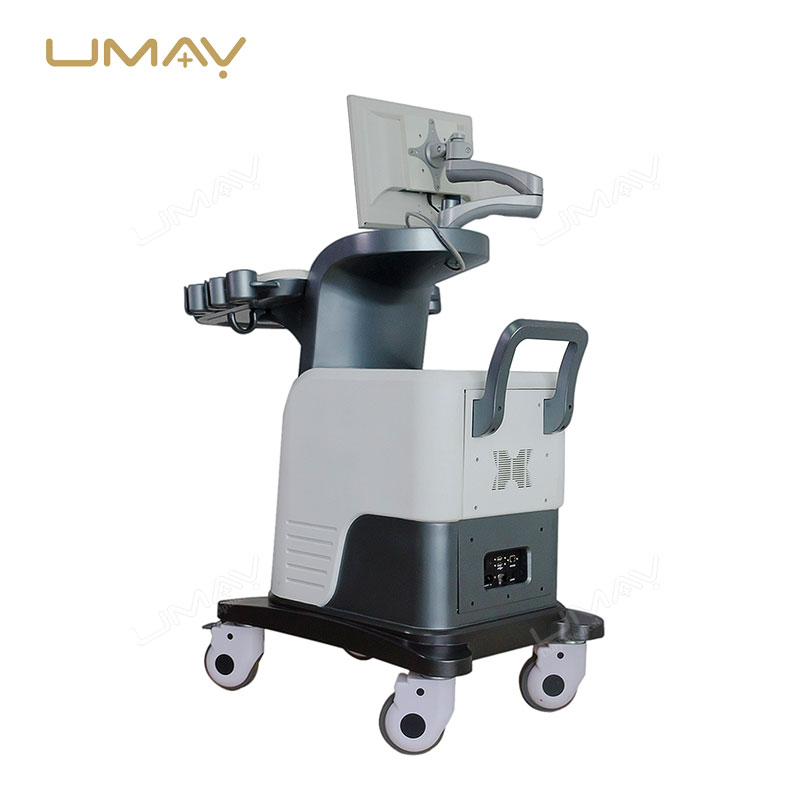

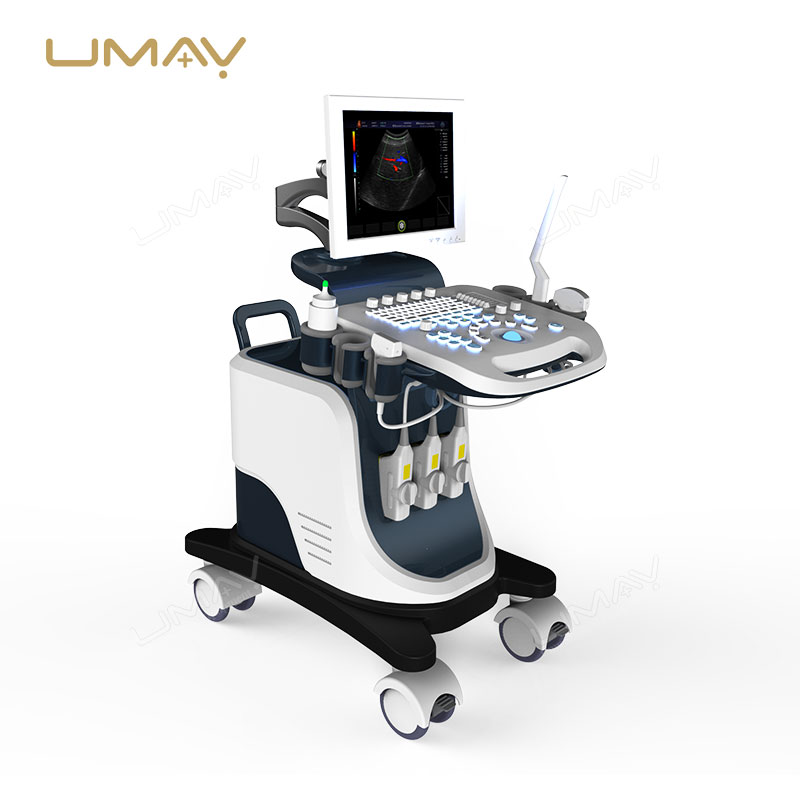

3D/4D Full Digital Trolley Doppler Ultrasound Scanner – CE Approved
SKU: UMY-US-019
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-019
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year
The CE Approved 3D/4D Full Digital Trolley Doppler Ultrasound Scanner offers exceptional imaging capabilities for comprehensive diagnostics. This advanced system combines 3D/4D imaging with Doppler technology, providing high-resolution scans for obstetric, gynecological, and cardiac applications. It is designed to enhance the accuracy of diagnoses, such as detecting fetal abnormalities, monitoring blood flow, and assessing cardiovascular health. The trolley design ensures ease of mobility within clinical environments, while the full digital functionality ensures reliable and precise results. Ideal for hospitals and specialized diagnostic centers, this ultrasound scanner elevates patient care.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Operating Conditions | |
| Operating Ambient Temperature | +5ºC ~ +40ºC |
| Relative Humidity | ≤80% |
| Atmospheric Pressure | 700hPa—1060hPa |
| Power Supply | AC220V±22V, 50Hz±1Hz |
| Independent Power Supply Requirement | Plug seat shall have an independent power supply. |
| Environmental Caution | Be far away from strong electric field, strong magnetic field equipment, and high voltage equipment. |
| Scanning and Display Features | |

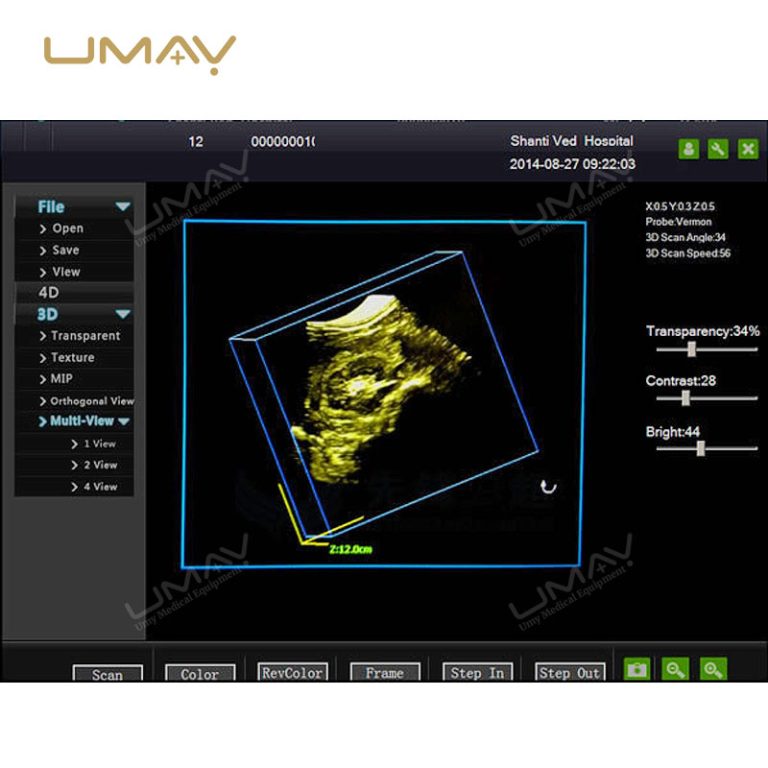

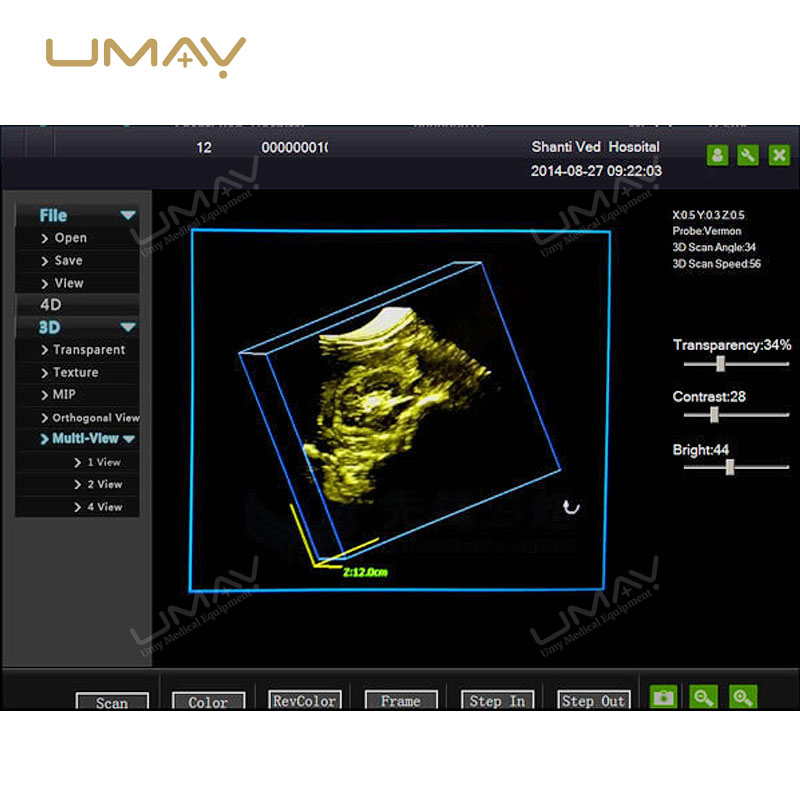

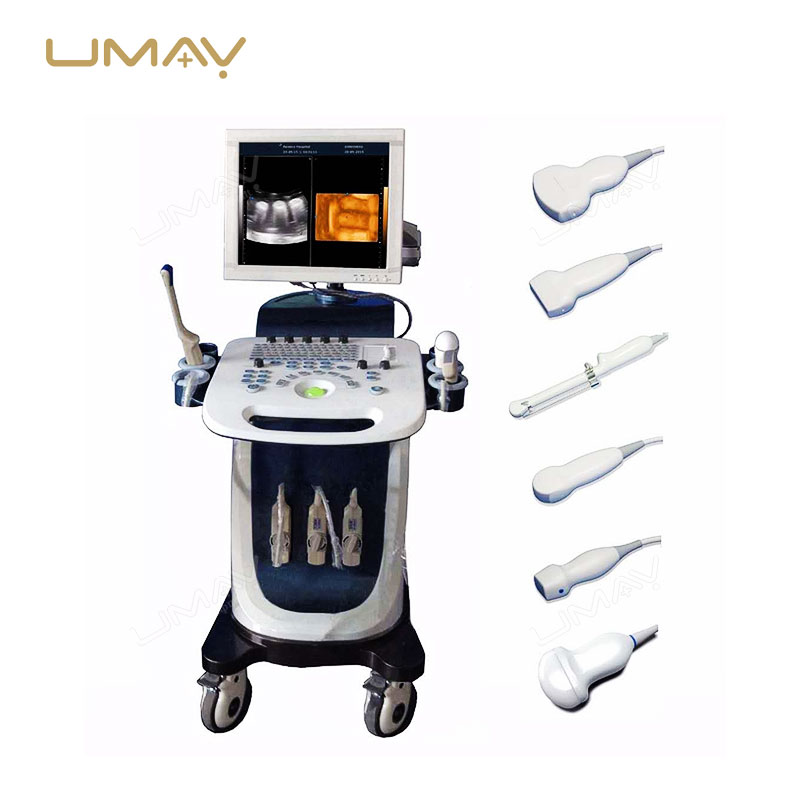

| Scanning Mode | Convex array, lumen, high-frequency linear array, phased array, 3D software (Optional accessories) |
| Dynamic Range | 0~120dB adjustable |
| Display Mode | B, B/M, B/MF, CFM, CMF/B, PDI, B/PW, total eight modes |
| Application Modes | Abdomen, gynecology, obstetrics, superficial organ, urologist, heart, and user-defined models (ten in total) |
| Image Mode | Digital beam forming, tissue harmonic imaging |
| Gray Scale | 256 levels |
| Depth Display | ≥250mm |
| Pseudo Color Processing | 16 kinds of pseudo color encoding optional |
| Gain Adjust | 8 segments TGC, independently adjustable; TGC curve auto-hide/show |
| Acoustic and Image Features | |
| Acoustic Output | Mechanical index and thermal index real-time display |
| Acoustic Power | Step-adjustable, real-time display |
| Image Magnification | Picture-in-picture zoom-in/zoom-out |
| Image Processing | Edge enhancement (Multilevel adjustable), Line average (Multilevel adjustable) |
| Contrast | Adjustable |
| Brightness | Adjustable |
| Gamma Correction | Multilevel adjustable |
| Measurement and Calculation | |
| B Mode Routine Measurement | Distance, circumference, area, volume, angle, ratio, stenosis rate |
| M Mode Routine Measurement | Heart rate, time, distance, speed, ratio |
| Gynecology Measurement | Uterus, cervix, endometrial, ovary, follicular |
| Obstetrics Measurement | EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables) |
| Cardiology Measurement | LV measurement |
| Urology Measurement | Prostate volume, displacement volume, bladder capacity, residual urine output |
| PW Measurements | Time, speed, heart rate, RI, PI |
| Image and Reporting System | |
| Image Storage | Cine loop, disk storage capacity ≥160G |
| Patient Data | Medical record management, report inquiry, and printing |
| Output Interface | SR232, USB, DICOM interface |
