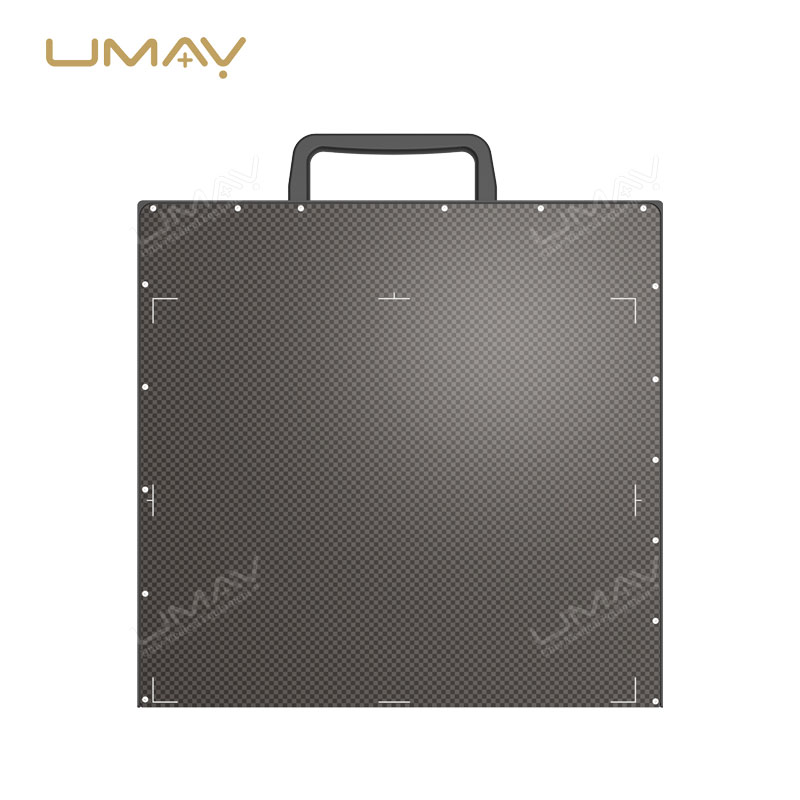

The 17×17 Cassette-Sized DR Flat Panel Detector UMY-XM-FP04 is designed to provide high-quality digital radiography imaging for a wide range of diagnostic applications. With its advanced DR technology, it offers detailed, high-resolution images for accurate diagnoses, while reducing radiation exposure. This flat panel detector is compact and versatile, ideal for use in various medical environments, including hospitals, clinics, and imaging centers. Its cassette-sized format allows for easy integration into existing X-ray systems, improving workflow and efficiency. Reliable and efficient, this detector supports fast imaging with consistent, high-quality results for enhanced patient care.
Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Electricals and interface | |
| A/D Conversion | 16 bits |
| Data Interface | Gigabit Ethernet |
| Acquire Time | wired: 1s |
| Exposure Control | Software/Sync/AED |
| Mechanical | |

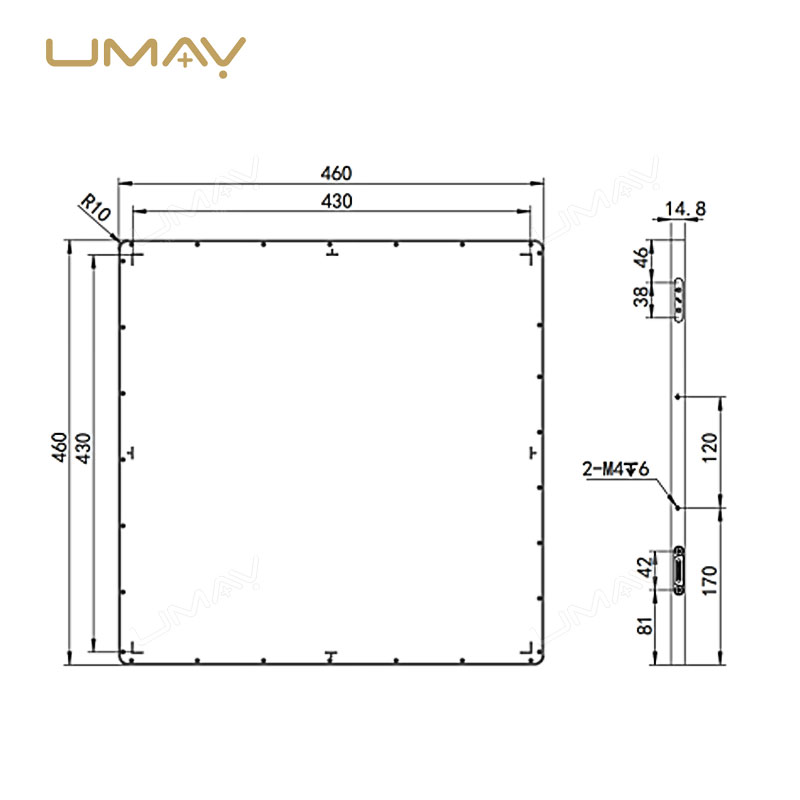

| Dimension | 460× 460 × 15 mm |
| Weight | 3.8kg (Without battery) |
| Material | Aluminum and magnesium alloys |
| Front Panel | Carbon fiber |
| Environmental | |
| Temperature | 10-35°C (operating);-10~50°C (storage) |
| Humidity | 30-70% RH (non-condensing) |
| Ingress Protection | IP51 (Customized to IP67) |
| Sensor | |
| Receptor Type | a-Si |
| Scintillator | Gos / CsI:TI |
| Active Area | 430 x 430 mm |
| Resolution | 3072 x 3072 |
| Pixel Pitch | 100 μm |
| Power Supply & Battery | |
| Adapter In | AC 100-240V,50-60Hz |
| Adapter Out | DC 24V,2.7A |
| Power Dissipation | <20 W |
| Image Quality | |
| Limiting Resolution | 5 LP/mm |
| Energy Range | 40-160 KV |
| Dynamic Range | ≥76 dB |
| Sensitivity | ≥0.36 LSB/nGy |
| Ghos | <1% 1st frame |
| DQE | 42% @(1 LP/mm) |
| 28% @(2 LP/mm) | |
| MTF | 68% @(1 LP/mm) |
| 38% @(2 LP/mm) | |
| 20% @(3 LP/mm) | |
Product Details
- UMY-XM-FP04 17×17 Cassette-Sized DR Flat Panel Detector: Advanced digital radiography detector designed for high-quality medical imaging applications.
- Large 17×17-Inch Active Imaging Area: Provides extensive coverage for a wide range of radiographic examinations.
- Cassette-Sized Design: Easily fits into existing X-ray equipment and workflows without major system modifications.
- Advanced DR Technology: Delivers rapid digital image acquisition with exceptional diagnostic image quality.
- High-Resolution Imaging Performance: Produces sharp, detailed radiographic images for accurate diagnosis and treatment planning.
- Superior Image Clarity: Enhances visualization of anatomical structures, improving diagnostic confidence.
- Fast Image Acquisition: Reduces examination time and enables immediate image review for efficient workflow.
- Low Radiation Dose Capability: Optimized detector sensitivity helps minimize patient exposure while maintaining excellent image quality.
- Excellent Orthopedic Imaging: Provides precise visualization of bones, joints, and musculoskeletal structures.
- Supports Chest and Lung Examinations: Delivers detailed thoracic imaging for respiratory disease assessment.
- Versatile Clinical Applications: Suitable for general radiography, trauma imaging, emergency medicine, and specialty examinations.
- Reliable Diagnostic Accuracy: Captures fine anatomical details to support confident clinical decision-making.
- Compact and Lightweight Structure: Easy to handle, position, and integrate into daily radiographic procedures.
- Seamless System Compatibility: Designed to work with a wide range of digital radiography systems and X-ray generators.
- Enhanced Workflow Efficiency: Accelerates imaging procedures and improves patient throughput in busy healthcare facilities.
- Durable Medical-Grade Construction: Built for long-term reliability and continuous clinical operation.
- Digital Image Management Support: Compatible with PACS, RIS, and hospital information systems for streamlined data management.
- Consistent Image Quality: Delivers stable and dependable imaging performance across diverse diagnostic applications.
- User-Friendly Operation: Simplifies image capture and processing for radiologists and healthcare professionals.
- Ideal for Hospitals and Clinics: Suitable for radiology departments, outpatient centers, imaging facilities, and mobile imaging solutions.
- Low-Noise Image Processing: Enhances image sharpness and visibility of subtle anatomical structures.
- Supports Emergency Imaging Needs: Provides fast and reliable image acquisition in urgent and critical care environments.
- Improved Patient Safety: Combines advanced detector technology with low-dose imaging capabilities.
- Professional Digital Radiography Solution: Offers exceptional image quality, operational flexibility, and diagnostic reliability.
- Comprehensive Flat Panel Detector Platform: Combines cassette-sized convenience, high-resolution imaging, fast workflow performance, and dependable operation to support modern medical diagnostics.
Detail Gallery
