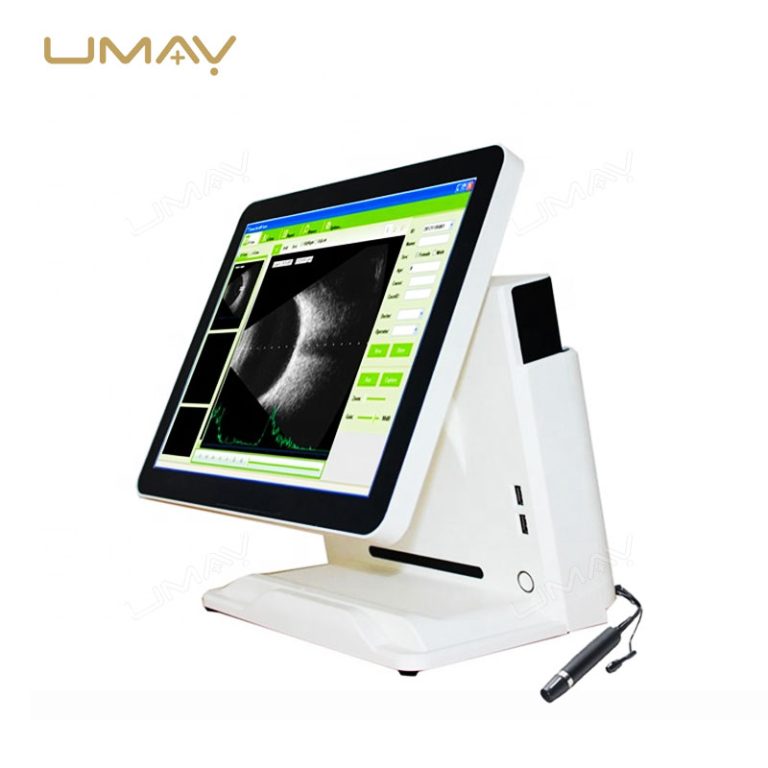

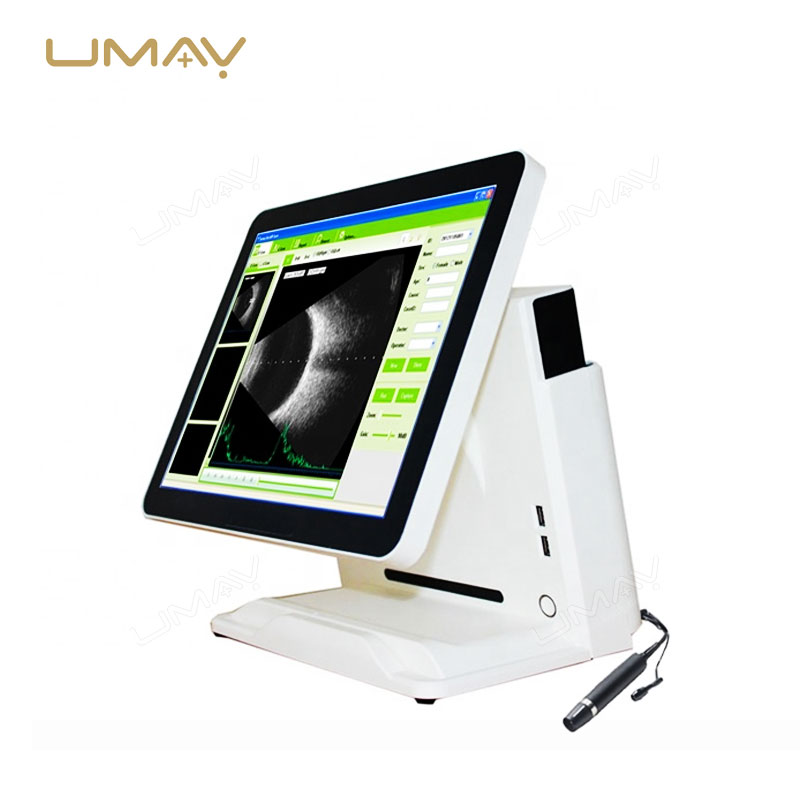

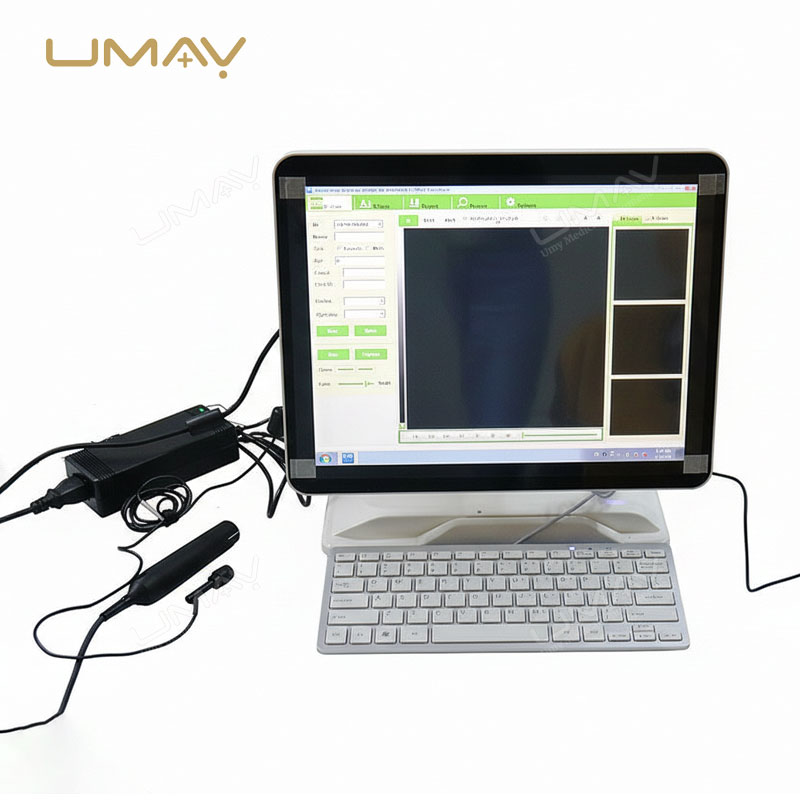

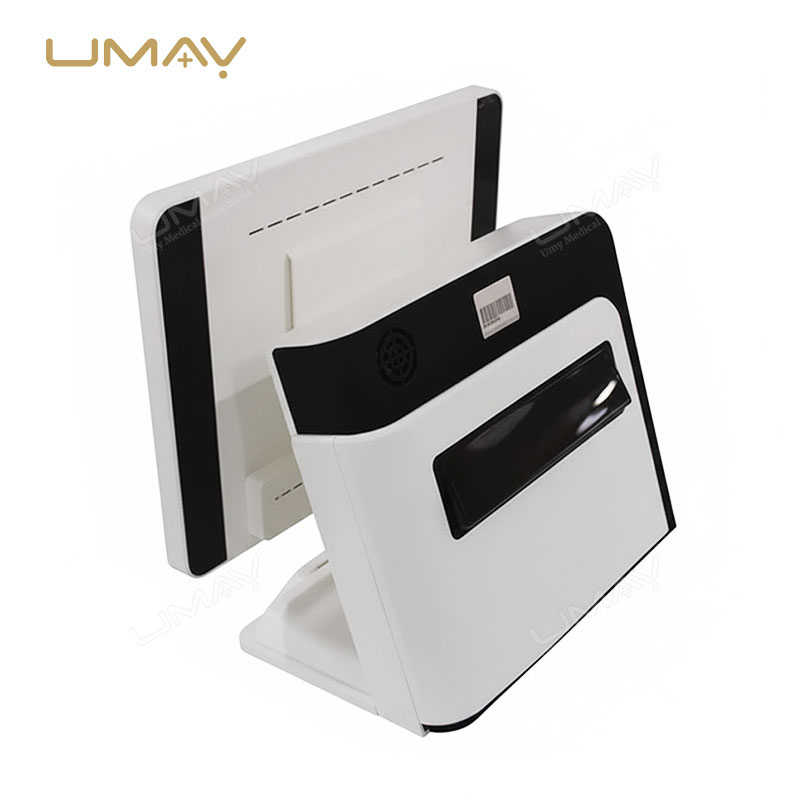

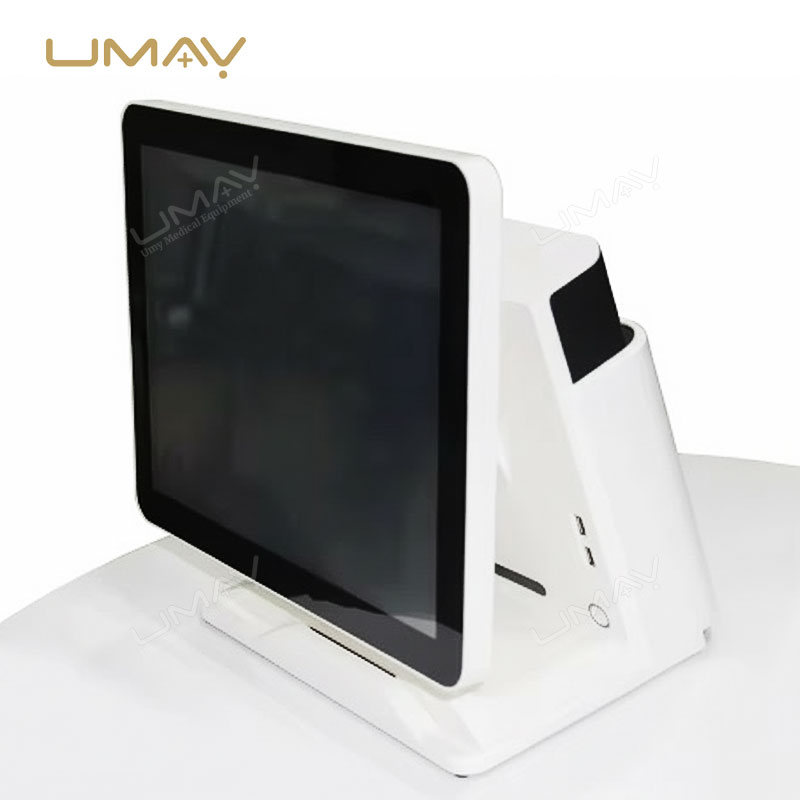

15-Inch Ophthalmic A/B Ultrasound Portable Scanner for Accurate Eye Disease Diagnosis
Quick Info.
- SKU NO.: UMY-US-056
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3200 Sets/Year
This portable Ophthalmic Ultrasound A/B-Scan is an advanced tool for diagnosing eye diseases and measuring key parameters for intraocular lens (IOL) calculations. It offers three modes: Normal, Vitreous Enhanced, and Retina Observation, for detailed imaging of the eye’s internal structures. The device is perfect for diagnosing conditions like retinal detachment and vitreous opacity, and measuring anterior chamber depth, lens thickness, and axial length. Its A-scan feature further assists in calculating the refractive power needed for IOL implantation.
Learn more about our complete ophthalmic diagnostic solutions.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| B Scan Specifications | |

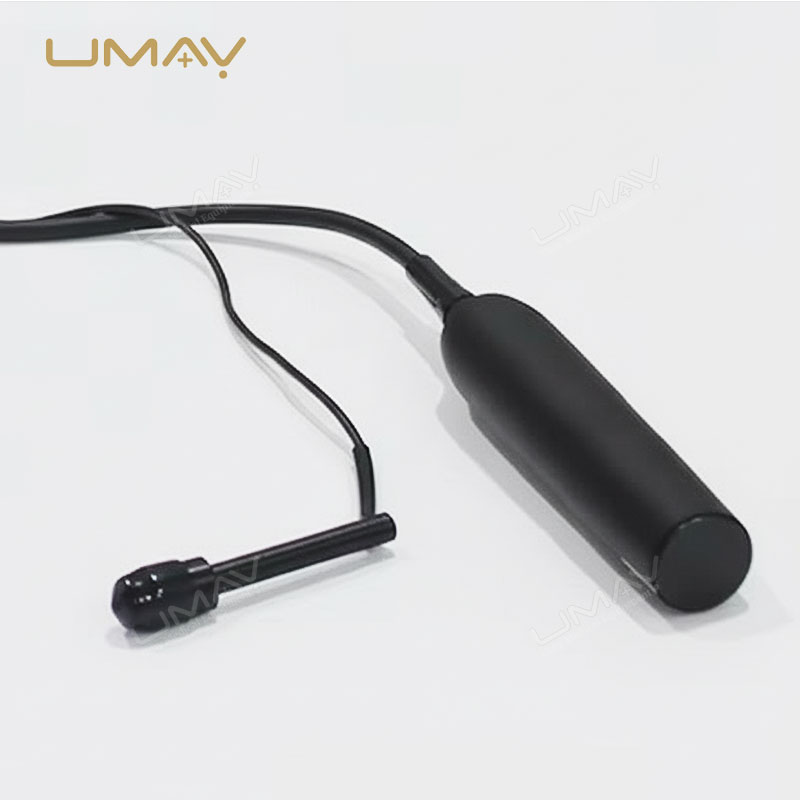

| Frequency | 10MHz / 20MHz (optional), Magnetic driven, noiseless |
| Scanning Mode | Sector Scanning |
| Magnify | Multi continuous magnification, Real-Time magnification |
| Resolution | Lateral ≤0.3mm; Vertical ≤0.2mm |
| Geometry Position Precision | Lateral ≤10%; Vertical ≤5% |
| Depth | 60mm |
| Gain of Probe | 30dB–105dB |
| Scanning Angle | 53° |
| Gray Scale | 256 |
| False Color | Multi colors, OCT |
| Measurement Type | Multigroup distances, perimeters and areas |
| Image Post-processing | Multiple curves processing, Pseudo-color processing curve |
| Movies | 100 images movie review, AVI JPG format image output |
| Special Function | Enhances visualization of vitreous body and retina |
| A Scan Specifications | |
| Frequency | 10MHz with LED |
| Depth | 40mm |
| Precision | ±0.05mm |
| Measurement | Anterior chamber depth, lens thickness, vitreous body length, total length, average |
| Eye Mode | Phakic / Aphakic / Dense / Various IOL |
| IOL Formula | SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS |
| Statistical Calculation | Average and standard deviation |
| Store | 10 scanning results per eye |
| Other Specifications | |
| Display Mode | B, B+B, B+A, A |
| Hint | Preset keyword |
| Case Search | Multi-keywords |

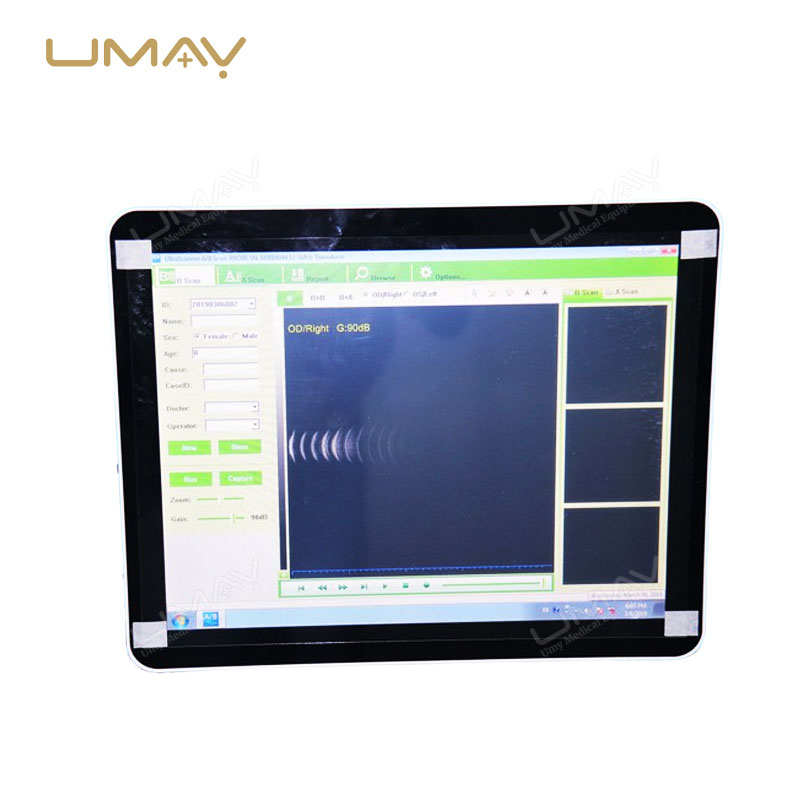

| Screen | 15 inch LCD |
| Built-in Battery | Can be used for 4 hours |
Feature list for UMY-US-056:
* Normal, Vitreous Enhanced, and Retina Observation modes
* Detects intraocular diseases like retinal detachment and vitreous opacity
* Measures anterior chamber depth, lens thickness, and axial length
* Calculates refractive power for intraocular lenses (IOL)
* Lightweight and portable for easy use in various settings
* High-definition imaging for accurate diagnosis
Application:
Perfect for use in ophthalmic practices, hospitals, and field diagnostics, this ultrasound A/B-scan is designed for efficient eye disease diagnosis and pre-surgical planning. It is especially beneficial for evaluating cataracts, glaucoma, and other intraocular conditions in both clinical and remote environments.
