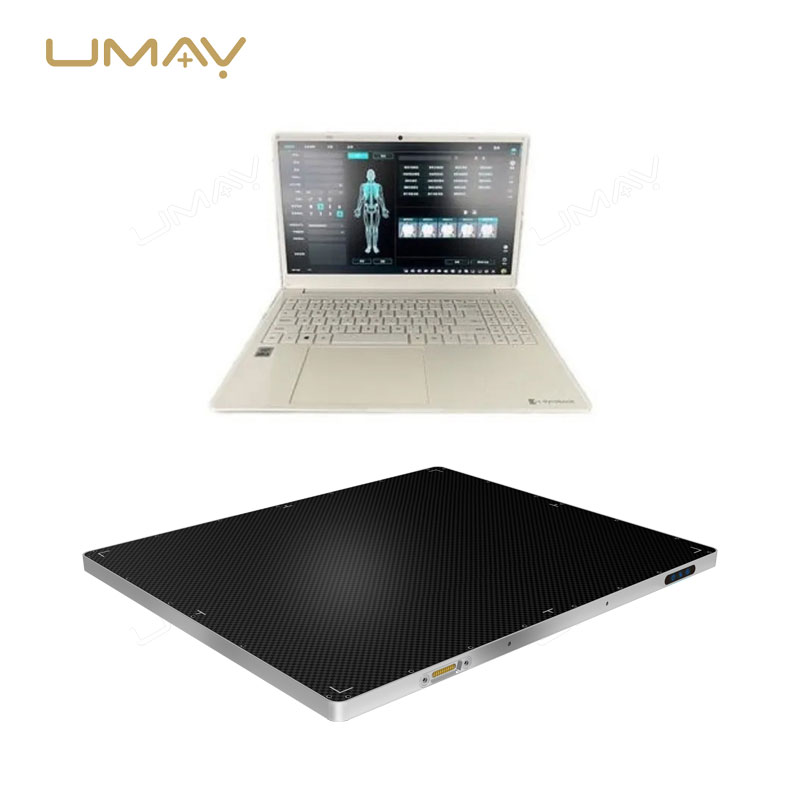

14×17 a-Si Flat Panel Detector UMY-XM-FP05 for True-to-Detail Quality Imaging
Quick Info.
- SKU NO.: UMY-XM-FP05
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The 14×17 a-Si Flat Panel Detector UMY-XM-FP05 is designed for high-precision imaging, offering true-to-detail quality for a variety of medical imaging applications. With its advanced a-Si (amorphous silicon) technology, it ensures high-resolution images that are crucial for accurate diagnoses in fields such as orthopedics, cardiology, and emergency medicine. This flat panel detector minimizes radiation exposure while delivering sharp, clear images, enhancing both patient safety and diagnostic accuracy. Ideal for use in hospitals, clinics, and imaging centers, it supports fast, efficient imaging workflows. This system provides reliable, high-quality results, making it an essential tool for healthcare professionals seeking the best in medical imaging technology.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Electricals and interface | |
A/D Conversion | 16 bits |
Data Interface | Gigabit Ethernet |
FPS | 1×1 5fps/2×2 15fps/3×3 25fps |
Exposure Control | Sync/Freerun |
Mechanical | |
Dimension | 384× 460 × 15 mm |
Weight | 3.4kg |
Material | Aluminum and magnesium alloys |
Front Panel | Carbon fiber |
Environmental | |
Temperature | 5-35°C (operating); -10~50°C (storage) |
Humidity | 30-70% RH (non-condensing) |
Ingress Protection | IP51 (Customized to IP67) |
Sensor | |
Receptor Type | a-Si |
Scintillator | Gos / CsI:TI |
Active Area | 350 x 430 mm |
Resolution | 2560 x 3072 |
Pixel Pitch | 139 μm |
Power Supply & Battery | |
Adapter In | AC 100-240V,50-60Hz |
Adapter Out | DC 24V,2.7A |
Power Dissipation | <20 W |
Image Quality | |
Limiting Resolution | 3.5 LP/mm |
Energy Range | 40-160 KV |
Dynamic Range | ≥84 Db |
Sensitivity | ≥0.54 LSB/nGy |
Ghos | <1% 1st frame |
DQE | 42% @(1 LP/mm) |
28% @(2 LP/mm) | |
MTF | 68% @(1 LP/mm) |
38% @(2 LP/mm) | |
20% @(3 LP/mm) | |
