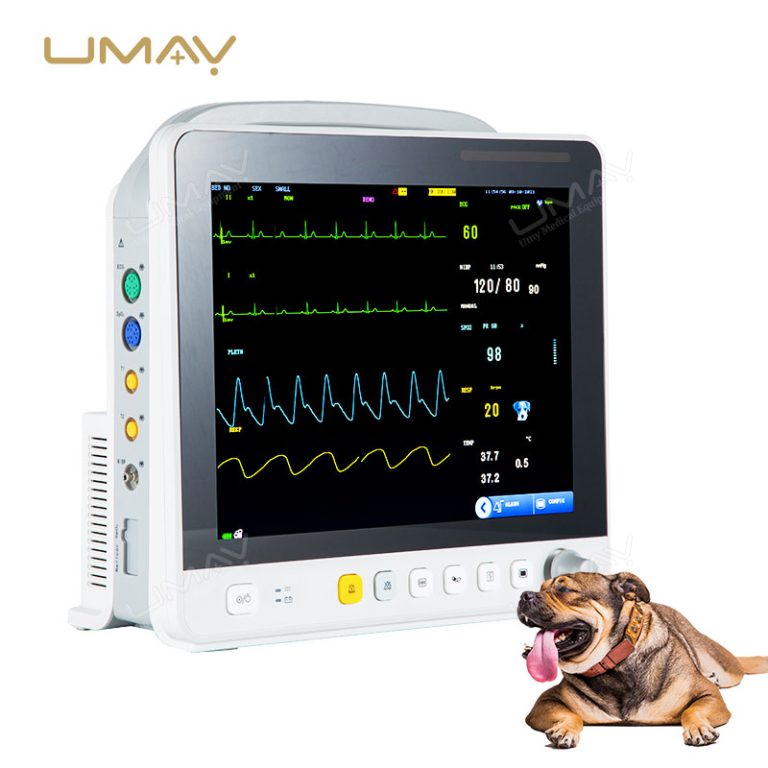

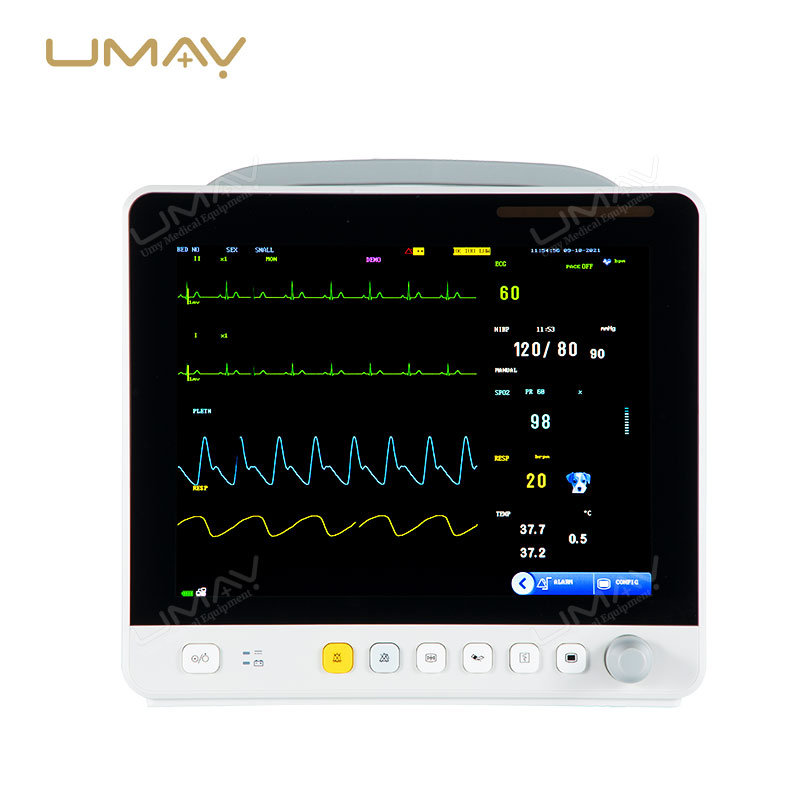

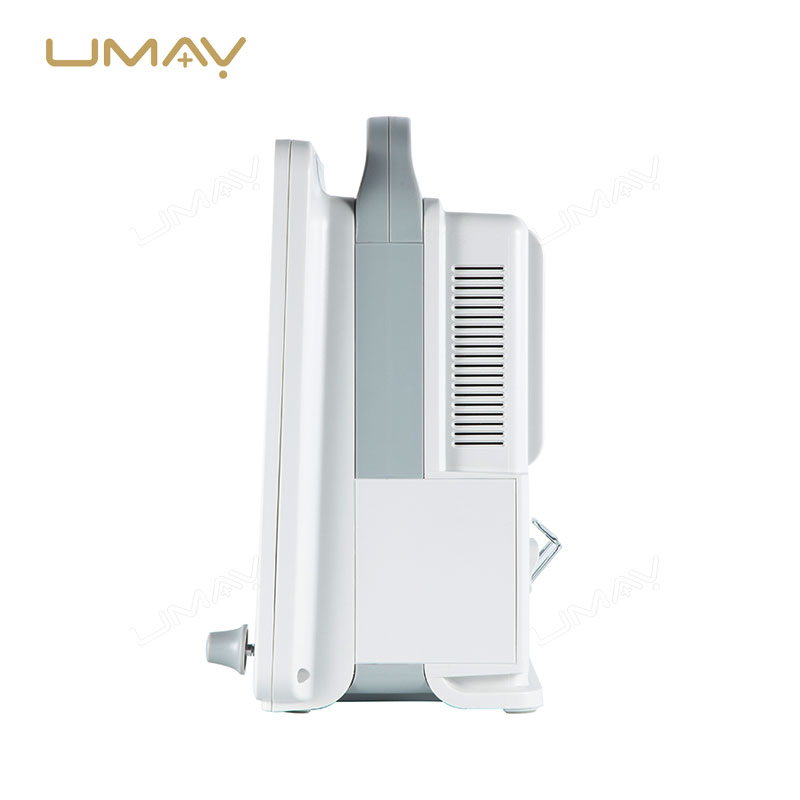

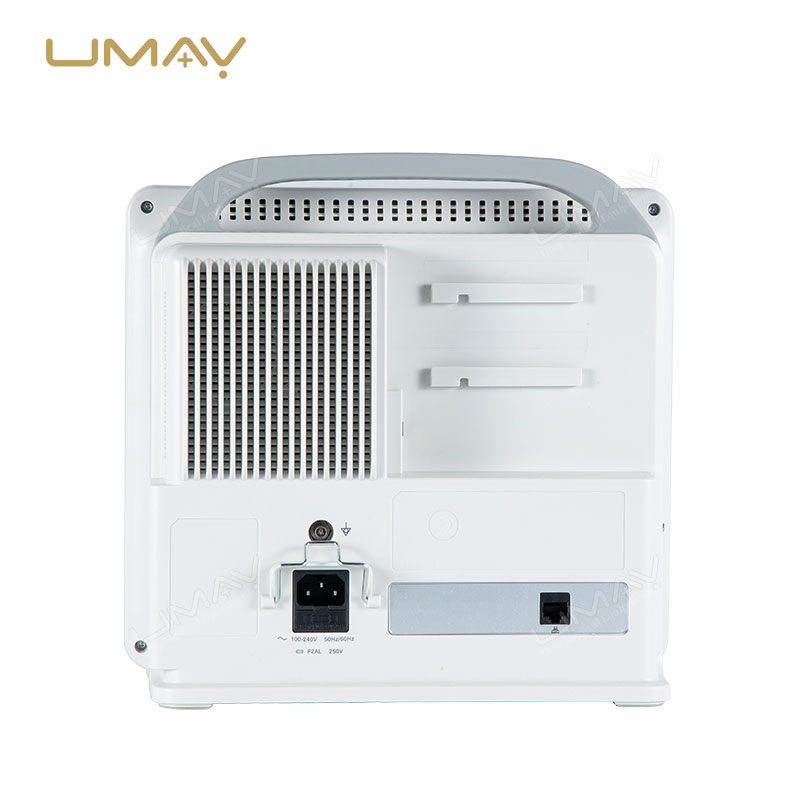

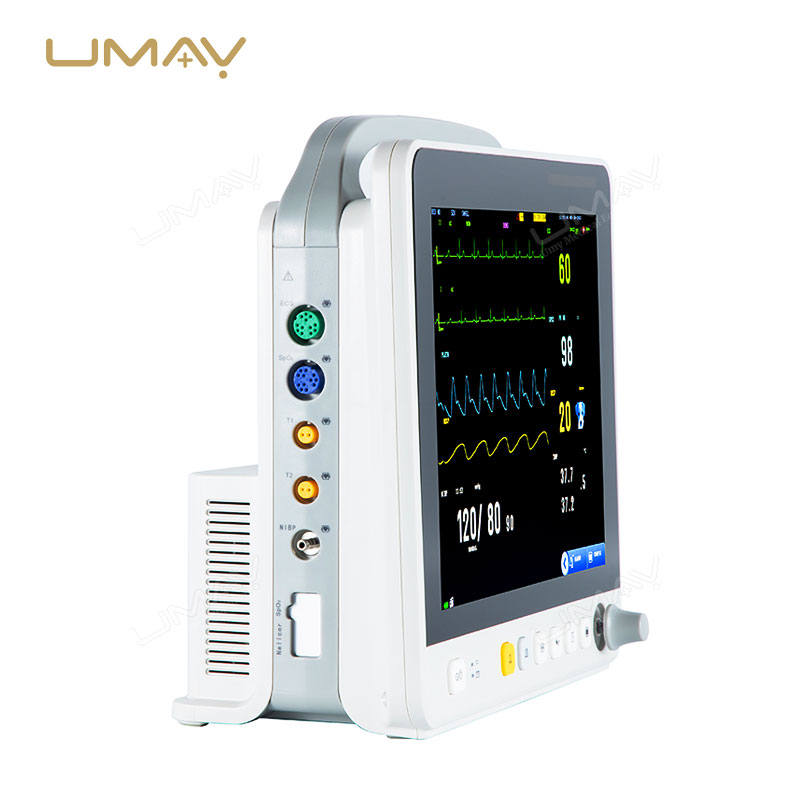

12.1 Inch Multi Parameter Veterinary Patient Monitor for Home and Clinical Animal Health Monitoring
SKU: UMY-VEPM-003
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
Power Source: Electric
Warranty: 1 year
After-sale Service: Online service and delivering spare parts
Transport Package: Carton or Wooden Cases
Material: Metal, Plastic
Instrument Classification: Class Ⅱ
Safety standard: ISO13485
- SKU NO.: UMY-VEPM-003
- Warranty: 1 Year
- Origin: China
This veterinary patient monitor with a 12.1-inch screen provides accurate tracking of six essential parameters, ensuring comprehensive animal health monitoring. Perfect for clinics, farms, or home use, it delivers clear data for surgical, critical, or routine care. Its compact design allows easy portability without compromising precision. Pair it with our portable veterinary ultrasound scanner for small and large animals for a complete diagnostic solution.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| ECG | |
| Input | 3/5 wire ECG cable |
| Lead Section | I, II, III, aVR, aVL, aVF, V |
| Gain Selection | ×0.25, ×0.5, ×1, ×2, Auto |
| Sweep Speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s |
| Heart Rate Range | 15–300 bpm |
| Accuracy | ±1 bpm or ±1% (select the greater) |
| Calibration | ±1 mV |
| NIBP | |
| Test Method | Oscillometric |
| Target Patient | Adult, Pediatric, Neonatal |
| Measurement Type | Systolic, Diastolic, Mean |
| Measurement Method | Automatic, Continuous, or Manual |
| Accuracy | ±2% |

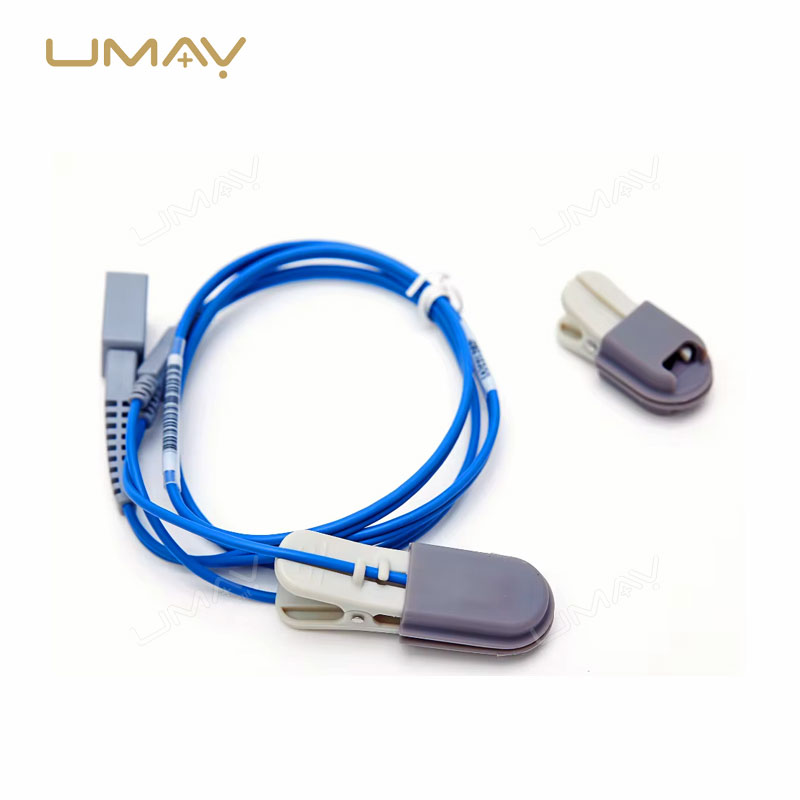

| SpO2 | |
| Display Type | Waveform, Data |
| Measurement Range | 0–100% |
| Accuracy | ±2% (70–100%) |
| Pulse Rate Range | 20–300 bpm |
| Accuracy | ±1 bpm or ±2% (select the greater) |
| Resolution | 1 bpm |
| Temperature | |
| Number of Channels | 2 |
| Measurement Range | 0–50°C |
| Accuracy | ±0.1°C |
| Display | T1, T2, TD |
| Unit | °C / °F |
| Refresh Recycle | 1s–2s |
| Respiration | |
| Measurement Type | Impedance & Nasal Tube |
| Range | 0–150 rpm |
| Accuracy | ±1 bpm or ±5% (select the greater) |
| Resolution | 1 rpm |
| Power | |
| AC Input | 100–240V, 50Hz/60Hz |
| DC Input | Built-in rechargeable battery |
| Battery Type | 11.1V 24Wh Li-ion battery |
| Physical Specifications | |
| Dimensions | 305 mm × 162 mm × 290 mm |
| Net Weight | 4.5 kg |
| Gross Weight | 6.3 kg |
